Citrix 1Y0-240 Online Practice Questions and Exam Preparation

Citrix 1Y0-240 Online Questions & Answers

• Question 1:

  Which two options should a Citrix Administrator consider when adding a secondary device in a high availability (HA) pair? (Choose two.)

  A. Configure the HA status of the Primary Node as STAYPRIMARY.
  B. HA Monitoring should be disabled on all the unused interfaces.
  C. Both the devices should have different SNIP addresses.
  D. The nsroot password should be the same on both nodes.
  E. The Independent Network Configuration (INC) mode should be enabled.
  B. HA Monitoring should be disabled on all the unused interfaces.
  D. The nsroot password should be the same on both nodes.

• Question 2:

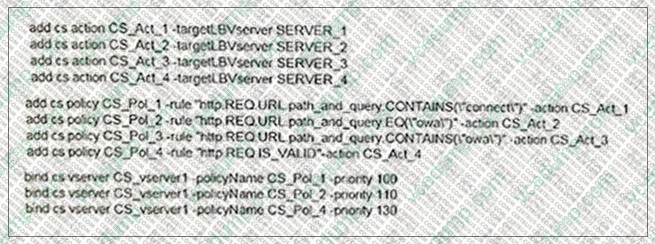

  Scenario: A Citrix Administrator observes that when the client gets redirected to the URL www.citrix.com/owa/search?q-userbame, an HTTP 503 response is received from the Content Switching vServer. The relevant configuration is as follows:



  How will the administrator correct the issue?

  A. Unbind CS_POL_2
  B. Unbind CS_POL_1
  C. Bind Policy Unbind CS_POL_2 with priority 90
  D. Bind Policy Unbind CS_POL_3 with priority 90
  C. Bind Policy Unbind CS_POL_2 with priority 90

• Question 3:

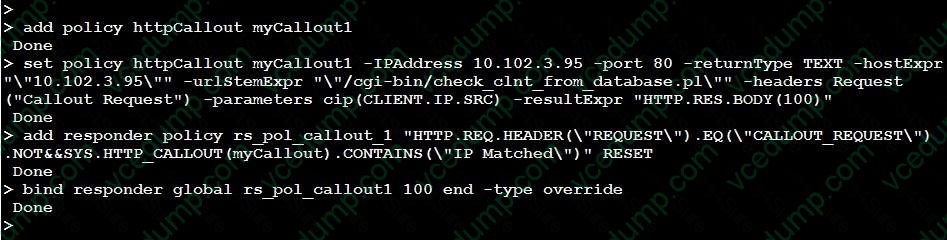

  View the Exhibit.



  A Citrix Administrator has implemented the HTTP Callout.

  Click on the `Exhibit' button to view the screenshot of the command-line interface.

  Which part of the configuration is responsible for triggering the call to HTTP Callout server?

  A. –parameters cip(CLIENT.IP.SRC)
  B. sys.http_callout(myCallout1)
  C. –urlStemExpr "\"/cgi-bin/check_clnt_from_database.pl\"
  D. –headers Request("Callout Request")
  D. –headers Request("Callout Request")

• Question 4:

  Scenario: A Citrix Administrator has a NetScaler SDX with four VPX instances configured. The SDX has a 10GB bandwidth license that has been configured with dedicated bandwidth of 2GB for each instance. However, the administrator found that three instances do NOT ever reach the bandwidth limit, while one instance reaches the limit and needs 1 GB more bandwidth to accommodate increased traffic requests.

  What can the administrator change on the instance that requires more bandwidth, to meet traffic requirements?

  A. Purchase an SDX license to increase the bandwidth on the instances.
  B. Configure burst capacity on the instance adding 1 GB of bandwidth with burst priority 0.
  C. Configure LA channel to increase the bandwidth.
  D. Configure burst capacity of 1 GB with priority 10.
  D. Configure burst capacity of 1 GB with priority 10.

• Question 5:

  In a Global Server Load Balancing (GSLB) Active/Active environment, the connection proxy is used as the site persistence method. What is used to source the traffic when connection is proxied?

  A. LDNS IP Address
  B. Client source IP
  C. Virtual IP
  D. Subnet IP (SNIP)
  B. Client source IP

• Question 6:

  Scenario: A NetScaler receives packets that are destined for a MAC address owned by the NetScaler. The destination IP address of the packets does NOT belong to the NetScaler. Layer 3 Mode is enabled by default on the NetScaler. What will the NetScaler do with the packets in this scenario?

  A. Route the packets.
  B. Bridge the packets.
  C. Drop the packets.
  D. Process the packets.
  A. Route the packets.

• Question 7:

  Scenario:

  A Load Balancing virtual server (lb_vsrv_www) is configured to load balance service_1 and service_2. A Citrix Administrator needs to bind a content filter policy to the virtual server, such that if the user tries to access http://xenapp.citrix.com,

  then the request should go to service_1.

  Which policy can the administrator use in this scenario?

  A. add filter action Redirect_Service_1_Act redirect Service_1add filter policy Redirect_Service_1_Pol -rule "REQ.HTTP.HEADER HOSTANME CONTAINS xenapp.citrix.com" reqAction Redirect_Service_1_Act
  B. add filter action Redirect_Service_1_Act forward Service_1add filter policy Redirect_Service_1_Pol -rule "REQ.HTTP.HEADER HOSTANME CONTAINS xenapp.citrix.com" reqAction Redirect_Service_1_Act
  C. add filter action Redirect_Service_1_Act forward Service_1add filter policy Redirect_Service_1_Pol -rule "REQ.HTTP.HEADER HOSTANME CONTAINS xenapp.citrix.com"
  D. add filter action Redirect_Service_1_Act respond Service_1add filter policy Redirect_Service_1_Pol -rule "REQ.HTTP.HEADER HOSTANME CONTAINS xenapp.citrix.com"
  A. add filter action Redirect_Service_1_Act redirect Service_1add filter policy Redirect_Service_1_Pol -rule "REQ.HTTP.HEADER HOSTANME CONTAINS xenapp.citrix.com" reqAction Redirect_Service_1_Act

• Question 8:

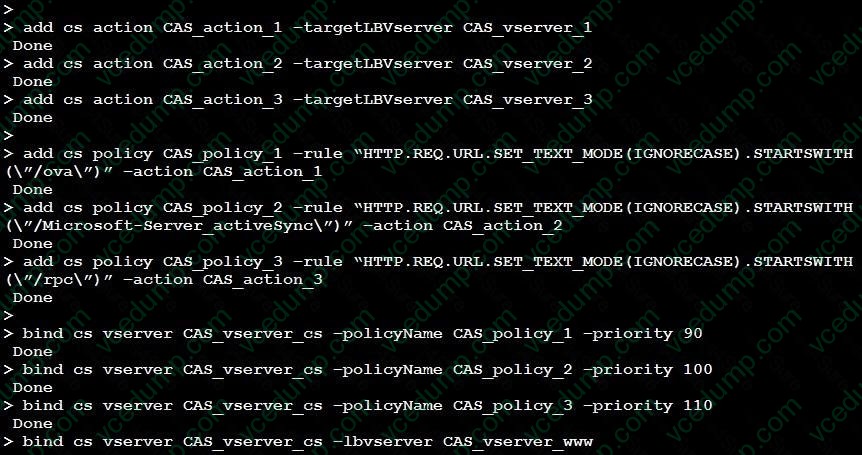

  View the Exhibit.



  A Citrix Administrator has noticed that the users trying to access https://mycitrix.training.lab/exchange2016/owa are redirected to CAS_vserver_www instead of CAS_vserver_owa.

  Click on the `Exhibit' button to view the screenshot of the command-line interface.

  What should the administrator change to resolve this issue?

  A. Unbind cs vserver CAS_vserver_cs –lbvserver CAS_vserver_www
  B. Bind cs vserver CAS_vserver_cs –policyName CAS_policy_cs_owa –priority 120
  C. Bind cs vserver CAS_vserver_cs –policyName CAS_policy_cs_owa –priority 80
  D. Add cs policy CAS_policy_cs_owa –rule “HTTP.REQ.URL.SET_TEXT_MODE(IGNORECASE).CONTAINS(\”/owa\”)” –action CAS_action_cs_owa
  A. Unbind cs vserver CAS_vserver_cs –lbvserver CAS_vserver_www

• Question 9:

  Scenario: A NetScaler appliance is having intermittent issues. A Citrix Administrator is unable to identify the root cause and fix them. The administrator opened a Support ticket and the Engineer assigned to the case requested all the logs and configuration information from the NetScaler.

  Which technical support tool can the administrator use to gather all the information on the NetScaler to send to the Support Engineer?

  A. Batch Configuration
  B. Start New Trace
  C. Get Back Trace
  D. Generate Support File
  D. Generate Support File

• Question 10:

  A Citrix Administrator needs to block all the DNS requests from subnet 10.107.149.0/24. Which expressions can the administrator use to match the required traffic?

  A. CLIENT.IP.SRC.IN_SUBNET(10.107.149.0/24) andand client.UDP.DSTPORT.EQ(53) || client.TCP.DSTPORT.EQ(53)
  B. CLIENT.IP.SRC.IN_SUBNET(10.107.149.0/24) andand (client.UDP.DSTPORT.EQ(53) || client.TCP.DSTPORT.EQ(53))
  C. CLIENT.IP.SRC(10.107.149.0) andand (client.UDP.DSTPORT.EQ(53) || client.TCP.DSTPORT.EQ(53))
  D. CLIENT.IP.SRC(10.107.149.0) andand client.UDP.DSTPORT.EQ(53) || client.TCP.DSTPORT.EQ(53)
  B. CLIENT.IP.SRC.IN_SUBNET(10.107.149.0/24) andand (client.UDP.DSTPORT.EQ(53) || client.TCP.DSTPORT.EQ(53))
