Citrix CCE-V 1Y0-402 Questions & Answers

• Question 1:

  Scenario: A Citrix Architect is reviewing a XenApp and XenDesktop design for an environment with

  multiple Active Directory forests.

  Click the Exhibit button to view the design details.



  Which risk should the architect highlight to the customer, based on the details listed in the Exhibit?

  A. The SupportMultipleForest registry key is configured incorrectly.

  B. The Active Directory trust method is configured incorrectly.

  C. The Active Directory functional level is configured incorrectly.

  D. The DNS lookup strategy is configured incorrectly.

  Correct Answer: C

• Question 2:

  Which user-segmentations actions should the consultant pursue?

  A. Analyze existing data, confirm user groups, and discover user requirements.

  B. Analyze existing data, confirm user groups, and confirm user requirements.

  C. Collect user data, confirm user groups, and confirm user requirements.

  D. Collect user data, define user groups, and confirm user requirements.

  Correct Answer: D

• Question 3:

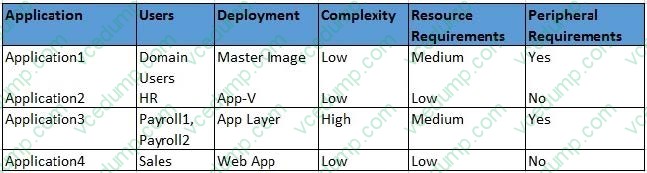

  As part of an application analysis performed earlier in the project, the information in the Exhibit was collected regarding one of the required applications.

  Click the Exhibit button to view the information.



  Additionally, the customer has the following objectives:

  1.

  Minimize the time required to perform application patches and updates

  2.

  Each department should have a dedicated image that is NOT accessible to other departments

  3.

  Each departmental image should only include the applications required by that department How should the architect install the application?

  A. Directly on endpoint devices and included in a virtual desktop session using the Local App Access feature

  B. On an Application Layer using Citrix App Layering, be included in a layered image, and accessed through a virtual desktop session

  C. Directly on a Server OS VDA machine and accessed from the endpoint as a published application

  D. Stream it to a VDA machine using Microsoft App-V and accessed through a virtual desktop session

  E. On an Application Layer using Citrix App Layering then be presented to assigned users as an Elastic Layer during a virtual desktop session

  Correct Answer: C

• Question 4:

  Scenario: IT management has decided which server hardware model to use for new XenApp and XenDesktop Sites and needs guidance on sizing the Hardware Layer.

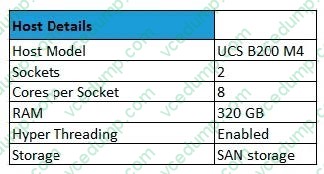

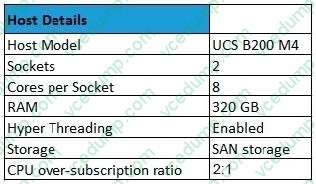

  Click the Exhibit button to view the host details.



  A Citrix Architect is planning to install XenServer 7.x on this host which will be used to host only XenApp servers.

  How many XenApp servers can the architect deploy on the host if the plan includes allotting each XenApp server 4 vCPUs, considering the over subscription ratio?

  A. 12

  B. 4

  C. 6

  D. 8

  Correct Answer: D

• Question 5:

  A Citrix Architect is designing a new XenApp and XenDesktop environment. The IT team would like to deploy Windows 10 persistent VDI and Windows Server 2016 non-persistent hosted shared desktops.

  The IT team has used physical servers in the past to host the IT infrastructure but would like to move to a hypervisor solution for the new environment. At the same time, the hardware and storage costs for the new deployment should be minimized where possible.

  The IT team has requested there are no company-wide outages during hardware updates and maintenance.

  The architect should recommend that failover clusters and live migration be used for _____________ and that these resource clusters should use ___________storage. (Choose the correct option to complete the sentence.)

  A. Citrix infrastructure only; SAN

  B. Citrix infrastructure only; local

  C. all XenApp and XenDesktop components; SAN

  D. all XenApp and XenDesktop components; local

  E. Citrix infrastructure and dedicated desktops only; local

  Correct Answer: B

• Question 6:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

  The table in the Exhibit lists details about the requirements of the current user groups and their Virtual

  Delivery Agent (VDA) machine workloads.

  Click the Exhibit button to view the table.



  At a minimum, the architect should scale the hardware used to host the VMs for User Group 1___________ GB of RAM.

  A. 128

  B. 64

  C. 384

  D. 512

  E. 256

  Correct Answer: E

• Question 7:

  Scenario: A Citrix Architect is designing a XenDesktop environment. The Graphic Designers group uses a graphic-intensive application. Graphic Designers will be provided with a Windows 10 Hosted Personal Desktop, with NVIDIA graphics hardware acceleration. HDX 3D Pro mode was selected during the installation of Virtual Delivery Agent (VDA).

  What is the maximum number of monitors supported for the Graphic group?

  A. 6

  B. 2

  C. 8

  D. 4

  Correct Answer: D

• Question 8:

  Scenario: While assessing the User Layer, a Citrix Architect finds that most of the internal users connect using corporate-owned laptops, desktop devices, and thin clients. Many of these laptops and desktop devices are running Windows 10, while the remainder of the machines are running Windows 7 and are in the process of being migrated to Windows 10. Some users also connect using personal devices which have Receiver Desktop Lock installed.

  Currently, Citrix Receiver is manually installed on any endpoint device added to the company. All these devices use Citrix Receiver version 4.8 and above. The IT team is planning to automate a process to update all the devices with the latest version of Citrix Receiver and to automate another process for automatic installation of Citrix Receiver without incurring extra costs and maintenance.

  During the initial testing of the Citrix Receiver Auto-Update feature, the architect observed that the Citrix Receiver Auto-Update feature does NOT work on some of the machines.

  Which two reasons could be causing this issue? (Choose two.)

  A. Citrix Receiver Auto-Update is disabled on machines where Receiver Desktop Lock is installed.

  B. The Citrix receiver Auto-Update feature needs to be configured before Receiver Desktop Lock is configured.

  C. The user does NOT have local administrative permission on the endpoint device.

  D. The local Advanced Preferences within Citrix Receiver were incorrectly configured.

  Correct Answer: AD

• Question 9:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Currently, the

  environment is configured with two locations with identical XenDesktop Sites. Each Site has two Delivery

  Controllers, two StoreFront servers, and one NetScaler high availability pair. The same applications have

  been published from both Sites for all the users. Two Zones (Zone A and Zone B) are configured in each

  Site with one Controller in each zone. The Microsoft Exchange server is only accessible from Virtual

  Delivery Agent (VDA) machines in Zone A in each Site.

  The following access requirements have been identified:

  Users should have a single URL when accessing resources from different Sites.

  Users should always connect to the datacenter closest to their location.

  Applications added to Favorites within Citrix Receiver should be retained when accessed from different

  Sites.

  Launched applications and desktops should always connect through a local NetScaler.

  No duplication of applications published from different Sites.

  Microsoft Outlook should always launch in Zone A.

  In which mode should the architect recommend configuring Global Server Load Balancing (GSLB) to

  ensure that a user always connects to the datacenter closest to their location?

  A. Source IP hash

  B. Dynamic RTT

  C. Least response time

  D. Static Proximity

  Correct Answer: C

• Question 10:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

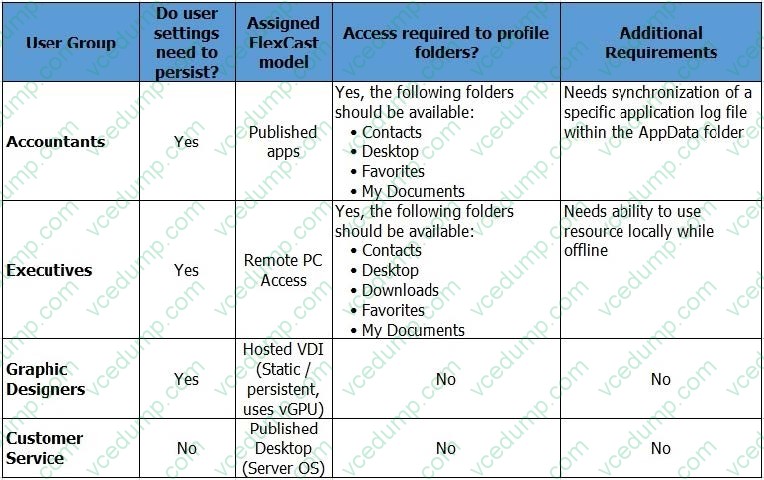

  The architect has identified the User Layer requirements, as shown in the Exhibit.

  Click the Exhibit button to view the requirements.



  Additionally, management at the organization has identified the following general Access Layer

  requirements:

  A multi-factor authentication method is required for any connections to the XenApp and XenDesktop

  environment originating from outside the corporate network.

  External connections must be authenticated by a NetScaler Gateway virtual server located in a DMZ

  network.

  Internal connection traffic should NOT leave the internal corporate network.

  Which authentication method should the architect use for the Accountants group?

  A. Username and password

  B. Federated Authentication Service

  C. LDAP and RADIUS

  D. Smart Card

  E. Domain pass-through

  Correct Answer: C
