VMware VCP6-NV 2V0-641 Questions & Answers

• Question 1:

  -- Exhibit -



  -- Exhibit -An administrator configures an NSX network as shown in the Exhibit.

  Both VM-A and VM-B use the same Distributed Router for their default gateway. VM-B receives an IP

  message from VM-A.

  Based on the exhibit, what is the source MAC address of the IP message received by VM-B?

  A. VM-B's default gateway's MAC address.

  B. VM-A's MAC address.

  C. VM-A's default gateway's MAC address.

  D. Logical Switch 7321's MAC address

  Correct Answer: A

• Question 2:

  -- Exhibit -



  -- Exhibit -An administrator has configured an NSX network as shown in the Exhibit.

  Both VM-A and VM-B use the same Distributed Router for their default gateway.

  Based on the exhibit, if VM-A sends a packet to VM-B,what happens to the packet before it reaches VM

  B?

  A. Distributed Router in Host-A receives the packet from VM-A and forwards it to Logical Switch 7775 in Host-B, via a VXLAN frame, which delivers it to VM-B.

  B. Logical Switch 7321 in Host-A receives the packet inside a frame from VM-A and forwards it to Logical Switch 7775 in Host-B, via a VXLAN frame, which delivers it to VM-B.

  C. Distributed Router in Host-A receives the packet from VM-A and forwards it to Logical Switch 7321 in Host-B, via a VXLAN frame, which delivers it to Logical Switch 7775 before it is delivered to VM-B.

  D. Logical Switch 7321 in Host-A receives the packet from VM-A and forwards it to the Distributed Router in Host-B, which passes it along to Logical Switch 7775 in Host-B before it is delivered to VM-B.

  Correct Answer: A

• Question 3:

  -- Exhibit -



  -- Exhibit -The Exhibit details the network connectivity from an NSX network and the supporting physical network.

  Locations C and D may be required to process packets with QoS tags.

  Based on the exhibit, which statement details proper processing of packets if they are QoS tagged?

  A. Locations C and D will trust the QoS tags of the encapsulated frame when passing packets.

  B. Location B should trust the QoS tags of the encapsulated frames that are switched.

  C. Location A will mark the inner header of the encapsulated frame.

  D. Location B should trust the QoS tags of the external header.

  Correct Answer: D

• Question 4:

  -- Exhibit -



  -- Exhibit -

  An administrator is troubleshooting a NSX controller cluster issue and runs the control-cluster command,

  as shown in the Exhibit.

  What information can be determined from the output provided in the exhibit?

  A. This is the control cluster majority leader controller.

  B. There are two controllers in the cluster.

  C. This is not the control cluster majority leader controller.

  D. The persistence_server role is not functioning correctly.

  Correct Answer: C

• Question 5:

  -- Exhibit -



  -- Exhibit -An NSX administrator is examining an error in the Event Console as shown in the Exhibit.

  Which condition would result in this error?

  A. The configured MTU size on the physical network is too small.

  B. The VTEP IP pool addresses are on the ESXi management network subnet.

  C. VLANs are configured on the logical network.

  D. A VXLAN segment ID pool is not configured.

  Correct Answer: B

• Question 6:

  -- Exhibit -



  --Exhibit -Your data center clusters are configured as shown in the exhibit.

  Core0 uses Virtual SAN and hosts virtual machines running the following components:

  vCenter Server

  Single Sign-On Server

  Update Manager

  ·SQL Server database Core1, Core2, and Core3 use a single Fibre Channel attached storage array. Core1 hosts over 500 virtual machines. Core2 hosts over 400 virtual machines. Core3 hosts 100 virtual machines. Following VMware's best practices, NSX Controller components should be deployed to which location(s)?

  A. Deploy three NSX Controllers, one on each host of Core0.

  B. Deploy four NSX controllers, one on each cluster in the data center.

  C. Deploy 27 NSX controllers, one for each host in the data center

  D. Deploy three NSX controllers. Deploy one in Core1, one in Core2, and one in Core3.

  Correct Answer: A

• Question 7:

  -- Exhibit -

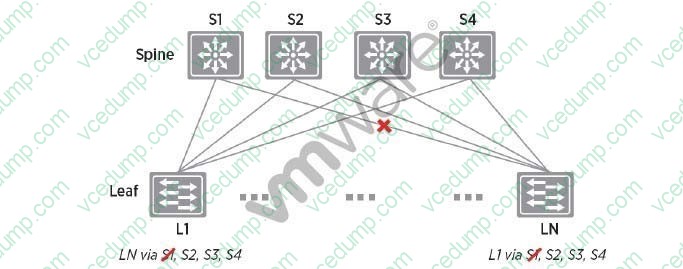

  -- Exhibit -An NSX administrator has deployed the network shown in the Exhibit.

  Based on the exhibit, which statement describes a valid method for redirecting traffic around the fault?

  A. Building this topology using a layer 2 switched fabric with connectivity between the leafs would allow traffic to be redirected around the fault to another leaf.

  B. Building this topology using a layer 3 routed fabric with connectivity between the leafs would allow traffic to be redirected around the fault to another leaf.

  C. Building this topology using a layer 2 switched fabric with spanning tree will provide the quickest path around the fault to another spine when connectivity is lost.

  D. Building this topology using a layer 3 routed fabric will provide the quickest path around the fault to another spine when connectivity is lost.

  Correct Answer: D

• Question 8:

  -- Exhibit -



  -- Exhibit -

  An administrator is testing connectivity between two ESXi hosts and uses the ping utility, as shown in the

  Exhibit.

  Based on the results shown in the exhibit, which statement is correct?

  A. Communication between the hosts is working correctly.

  B. The hosts are in separate subnets.

  C. The MTU size is too small.

  D. A logical router has not been deployed and configured.

  Correct Answer: C

• Question 9:

  What is the packet size of the VXLAN standard test packet when using the Ping test on the logical switches?

  A. 1500

  B. 1550

  C. 1575

  D. 1600

  Correct Answer: B

• Question 10:

  On which device Command Line Interface can an administrator list the ARP entries for a given VXLAN network?

  A. ESXi Host

  B. NSX Controller

  C. NSX Manager

  D. NSX Edge

  Correct Answer: A
