Cisco CCNP Enterprise 300-415 Questions & Answers

• Question 181:

  An enterprise has these three WAN connections:

  1.

  public Internet

  2.

  business Internet

  3.

  MPLS

  An engineer must configure two available links to route traffic via both links. Which configuration achieves this objective?

  A. omp no shutdown ecmp-limit 2

  B. omp no shutdown send-path-limit 2

  C. omp no shutdown overlay-as 2

  D. omp no shutdown route-limit 2

  Correct Answer: A

  The number of routes that get installed in the routing tables is subject to another OMP parameter called ecmp-limit.

• Question 182:

  An engineer must apply the configuration for certificate installation to vBond Orchestrator and vSmart Controller. Which configuration accomplishes this task?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 183:

  Which SD-WAN component detects path performance information in the organization to report the issue to the service provider at site ID:123456?

  A. vBond Orchestrator

  B. Cisco DNA

  C. vManage NMS

  D. vAnalytics

  Correct Answer: D

  Cisco vAnalytics is a cloud-based analytics service for Cisco SD-WAN offering comprehensive insights into application and network performance. The analytics service is available with Cisco DNA Advantage and Cisco DNA Premier software subscriptions. Cisco vAnalytics collects and stores metadata about traffic flows in its cloud storage and produces analytics based on this collected data. https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/vAnalytics/vAnalytics-book/vAnalytics.html

• Question 184:

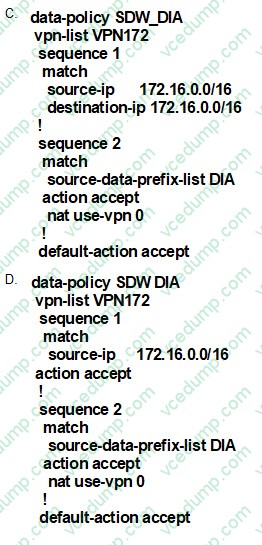

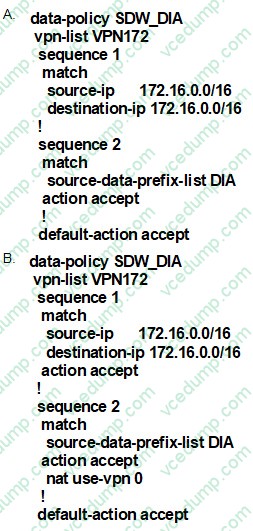

  An engineer is configuring the branch office with a 172.16.0.0/16 subnet to use DIA for Internet traffic. All other traffic must flow to the central site or branches using the MPLS circuit. Which configuration meets the requirement?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

  Answer D is wrong because all the packets will match the sequence 1, so never a packet will check the sequence 2 to use NAT to the internet.

• Question 185:

  Which policy allows communication between TLOCs of data centers and spokes and blocks communication between spokes?

  A. centralized data policy

  B. localized control policy

  C. centralized control policy

  D. localized data policy

  Correct Answer: C

  In Cisco SD-WAN, to implement hub and spoke topology means to restrict the spoke-to-spoke overlay connections. To do this, a centralized policy must be created and applied so that the remote sites will only receive the Transport Locators of the data center WAN Edges from the vSmart controllers.

• Question 186:

  An administrator wants to create a policy to add a traffic policer called "politer-ccnp" to police data traffic on the WAN Edge.

  Which configuration accomplishes this task in vSmart?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

  The correct syntax is to Apply a Policer in Centralized Data Policy

  On vSmart controllers only. policy data-policy policy-name vpn-list list-name sequence number action accept

  set policer policer-name

• Question 187:

  Refer to the exhibit.



  Customer XYZ cannot provision dual connectivity on both of its routers due to budget constraints but wants to use both R1 and R2 interlaces for users behind them for load balancing toward the hub site. Which configuration achieves this objective?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 188:

  Refer to the exhibit.



  An enterprise has hub and spoke topology where it has several VPNs. An engineer must allow users in VPN91 to reach users in VPN92 and VPN10 to reach VPN91 and VPN92. Which configuration meets these requirements?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C

• Question 189:

  An engineer must deploy a QoS policy with these requirements:

  1.

  policy name: App-police

  2.

  police rate: 1000000

  3.

  burst: 1000000

  4.

  exceed: drop

  Which configuration meets the requirements?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

  There is no "set" command under interface configuration:

  site3-vedge01(config)# vpn 10 site3-vedge01(config-vpn-10)# interface ge0/0/0 site3-vedge01(config-interface-ge0/0/0)# set ^ % Invalid input detected at '^' marker.

• Question 190:

  Refer to the exhibit.



  An organization is testing a Cisco SD-WAN solution and decided to have the control plane established first and not the data plane at the time of migration. Which configuration achieves this goal?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A
