Cisco CCNP Data Center 300-615 Questions & Answers

• Question 71:

  A network engineer discovers a DNS resolution problem on a device that is using the Cisco Nexus Bash shell. The device name is app with an IP address of 10.10.10.1. The primary server IP address is 172.16.10.1 and the secondary server IP address is 172.16.10.2. When the abc.com resolution fails, it should attempt to use efg.com. Which settings must be added to resolv.conf file to resolve the issue?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

  Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-9000-series-switches/213959-nx-os-bash-shell-dns-configuration.html

• Question 72:

  Refer to the exhibit.



  The script fails to bring up Ethernet 1/2 when Ethernet 1/1 goes down. Which change enables the script to run as intended?

  A. Set the port VLAN

  B. Include an action to manually shut down Ethernet 1/1

  C. Add an action to configure the terminal

  D. Configure an enable action

  Correct Answer: C

• Question 73:

  Refer to the exhibit.



  A network engineer deploys scripts to the guest shell of a Cisco Nexus switch. The scripts fail to operate properly due to the limited CPU and file system resources that are assigned by default to the guest shell. The engineer allocated more memory and disk space to the guest shell, but the application continues to fail. Which action resolves the issue?

  A. Disable and enable bash shell

  B. Reboot the guest shell

  C. Redeploy the bash shell

  D. Upgrade the guest shell

  Correct Answer: B

  Reference: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2018/pdf/BRKDCN-2015.pdf

• Question 74:

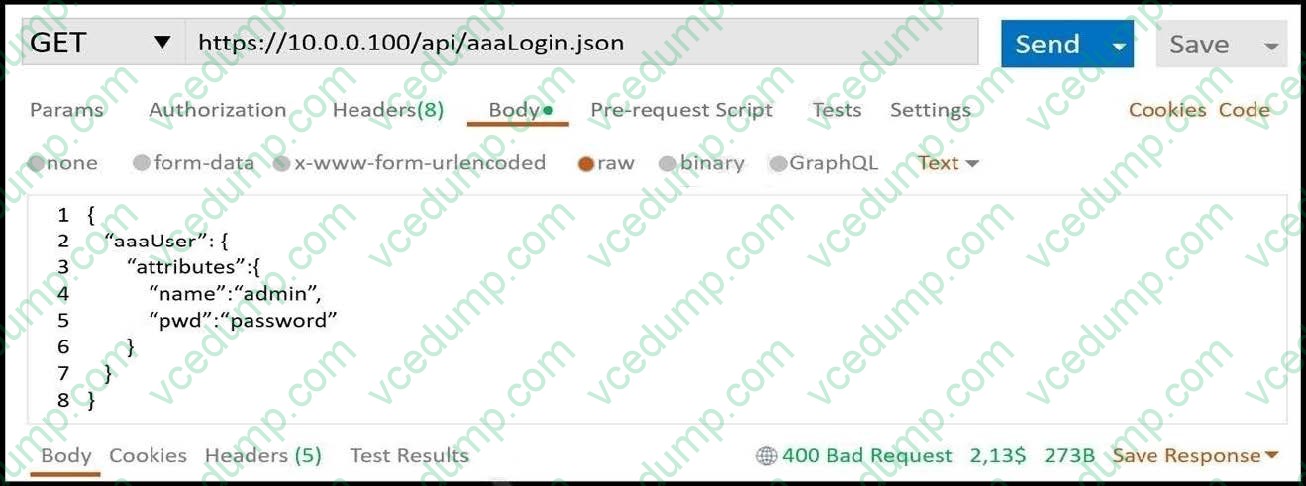

  When the engineer runs the command, this error is received:

  opsengineer@wkst1:/home/auto/bash_scripts$ curl -s -b cookie_file_39916907.txt -X GET -k 192.15.132.101/api/node/class/Tenant.json {“totalCount”: “1”, “imdata”:[{“error”:{“attributes”:{“code”: “400”, “text”: “Requestfailed, (output omitted)”}}}]}

  Which action resolves the issue?

  A. Regenerate the API token object

  B. Modify the URI to 192.15.132.101/api/node/class/fvTenant.json

  C. Add the -c class Tenant flag to the cURL command

  D. Change the HTTP verb to POST

  Correct Answer: B

  Reference: https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/DEVNET-2000.pdf

• Question 75:

  Refer to the exhibit.



  A network engineer creates an EEM script to trigger an SNMP notification when a user enters configuration mode, but the trap is not received when the condition is met. Which action resolves the issue?

  A. Append action 2.0 event-default to the script

  B. Append action 2.0 cli "conf t" to the script

  C. Modify snmp-trap strdata "Configuration changed" to syslog msg Configuration changed

  D. Modify cli match "conf t" to "snmp match "conf t"

  Correct Answer: A

  Reference:

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/system_management/ configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide/ sm_12eem.html

• Question 76:

  Refer to the exhibits.



  An engineer is implementing the SAN based on the Cisco MDS 9000 Series Switches. When operating the environment, the engineer encounters the error shown. Which action resolves the issue?

  A. Copy VSAN 101 to the fabric binding database on the MDS-1 switch

  B. Add the World Wide Name of the neighboring switch to the MDS-1 switch

  C. Configure the port security feature on the MDS-1 switch

  D. Enable VSAN 101 on the peer MDS 2 switch fabric interconnect

  Correct Answer: B

  Reference: https://overlaid.net/2014/08/22/fc-security-for-ccie-dc-fabric-binding/

• Question 77:

  Refer to the exhibit.



  A network engineer is configuring the FCoE N_Port virtualization storage area network. After the initial implementation, server 11 fails to connect to the disk array. Which action resolves the issue?

  A. On MDS interface vfc 1/1, change switchport mode configuration to VF

  B. On N9K interface vfc11, change switchport mode configuration to NP

  C. On N9K interface vfc11 and MDS interface vfc 1/1, change switchport mode configuration to F

  D. On N9K interface vfc11 and MDS interface vfc 1/1, change switchport mode configuration to E

  Correct Answer: D

• Question 78:

  A system administrator connects a Cisco Nexus 2248PQ FEX to a fabric interconnect to expand the ports that are available for connecting Cisco UCS C-Series Rack Servers. In Cisco UCS Manager, the administrator does not see the servers connected to this FEX. Which action should be taken to resolve the issue?

  A. The FEX must be exchanged so that it supports the connectivity between fabric interconnects and UCS C-Series servers

  B. The fabric interconnects must be rebooted before the FEX is recognized

  C. The transceivers must be exchanged to support the connectivity between the FEX and the fabric interconnects

  D. The ports that connect the FEX to the fabric interconnects must be configured as server ports

  Correct Answer: D

• Question 79:

  Refer to the exhibit.



  An engineer discovered a VFC interface in a down state on a Cisco Nexus Switch. Which action resolves the problem?

  A. Change the cable between the switch and the server

  B. Reset the Cisco Nexus port toward the file server

  C. Update the CNA firmware and driver versions

  D. Modify the fip keepalive message time to 30 seconds

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/troubleshooting/guide/N5K_Troubleshooting_Guide/n5K_ts_fcoe.html

• Question 80:

  Refer to the exhibit.

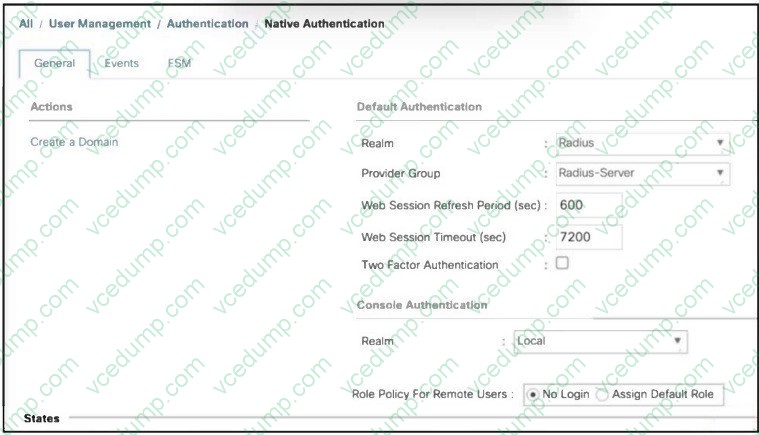

  A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager. The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?

  A. Configure the Filter field with sAMAccountName=$company

  B. Configure the Attribute field with the company

  C. Configure the Attribute field with sAMAccountName=$company

  D. Configure the Filter field with the company

  Correct Answer: A
