Implementing Cisco Collaboration Cloud and Edge Solutions (CLCEI)

Exam Details

  • Exam Code
    :300-820
  • Exam Name
    :Implementing Cisco Collaboration Cloud and Edge Solutions (CLCEI)
  • Certification
    :CCNP Collaboration
  • Vendor
    :Cisco
  • Total Questions
    :175 Q&As
  • Last Updated
    :Apr 01, 2025

Cisco CCNP Collaboration 300-820 Questions & Answers

  • Question 31:

    Which two internal SIP endpoints behind a firewall place calls to external devices? (Choose two.)

    A. An Expressway-C communicates with the internal endpoint and forwards the media to and from an Expressway-E.

    B. A Cisco Endpoint is configured with a publicly routable static NAT SIP address to advertise instead of is private IP address.

    C. An Expressway-C communicates directly with the remote party using the ICE protocol

    D. An Expressway-E is used as a VPN server to allow remote SIP edge servers to connect calls

    E. An Expressway-C rewrites the SIP SDP to advertise its own IP address to the external party.

  • Question 32:

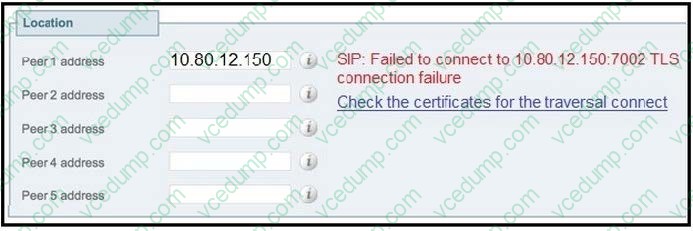

    Refer to the exhibit.

    What are "Type" field values for this Expressway servers zone configuration?

    A. Expressway-C "DNS", Expressway-E "Traversal server"

    B. Expressway-C "Traversal server", Expressway-E "Traversal client"

    C. Expressway-C "Neighbor", Expressway-E "Neighbor"

    D. Expressway-C "Traversal client", Expressway-E "Traversal server"

  • Question 33:

    An engineer reviews the configuration of a pair of Expressway servers for a company with the domain example.com. The company allows toll fraud calls to reach the Cisco UCM only when it expects externally registered devices to call internal 5-digit extensions. The search history shows that the fraudulent calls have a destination URI of 8 or more digits and several domains. What must the engineer configure to prevent all toll fraud calls from going past the Expressway-E to the internal network?

    A. search rules to only route calls with a destination URI of 5 to 8 digits long on the Expressway-E

    B. CPL that blocks calls with a destination domain other than example.com on the Expressway-C.

    C. search rules to only route calls with a destination domain of example.com on the Expressway-E

    D. CPL to block calls with a destination URI with 8 or more digits on the Expressway-E

  • Question 34:

    Which 16-digit number is unique to a serial number and is used to enable the system?

    A. RMS license key

    B. option key

    C. release key

    D. Expressway series

  • Question 35:

    When the network requirements are configured for a new Video Mesh deployment, which firewall ports are required so that Video Mesh cascade signaling succeeds?

    A. TCP 443 and 444

    B. TCP 443 and 8443

    C. UDP 5004 and 5005

    D. UDP 33432 through 33433

  • Question 36:

    An organization wants to be able to call IP addresses and URI addresses. An engineer must configure Cisco Expressways to manage this request from the endpoints in the organization. How would the engineer configure the Expressways to allow these calls to be completed to external IP addresses?

    A. Set calls to unknown IP addresses to direct on the Cisco Expressways, and add a search rule on the Expressway-E

    B. Set calls to unknown IP addresses to indirect on the Cisco Expressways, and add a search rule on the Expressway-E

    C. Use search rules to manage calls to IP addresses, and the direct/indirect setting on the Expressway is used as a fallback only if the search rules do not exist

    D. Set calls to unknown IP addresses to indirect on the Expressway-C and direct on the Expressway-E, and add a search rule on the Expressway-E

  • Question 37:

    Cisco Jabber clients are failing to log in using Mobile and Remote Access. The administrator checked the Jabber problem report logs and saw that connections to the Expressway-E are being refused on TCP port 8443. From a packet capture run on the Jabber client while attempting to log in, there is no response to the TCP SYN packets sent to the Expressway-E by Jabber. Which two reasons are causing the Expressway-E to be unreachable on port 8443 from the internet? (Choose two.)

    A. The Jabber clients using an outdated version.

    B. The Unified Communications zone is down.

    C. The firewall is blocking the port.

    D. The certificate for Jabber is expired.

    E. The SRV record for _cisco-uds is misconfigured.

  • Question 38:

    An administrator is configuring DNS to allow Mobile and Remote Access logins for the domain cisco.com. Where must the _collab- edge_tls.cisco.com DNS SRV record be configured?

    A. in the public DNS server

    B. in DNS SRV settings under Cisco Unified OS Administration in Cisco UCM

    C. in DNS settings in the Expressway-E on the interface that faces the Internet

    D. in DNS settings under Cisco Unified OS Administration in Cisco UCM

  • Question 39:

    An engineer must fix broken SSH tunnels between Expressway-C (192.168.10.5) and Expressway-E (192.168.20.5). The engineer is advised that the packet capture shows the required packets for the SSH tunnels leaving the Expressway-C but not reaching the Expressway-E. Which firewall configuration must the engineer allow to resolve this issue?

    A. port 2222 from Expressway-E to Expressway-C

    B. port 7001 from Expressway-C to Expressway-E

    C. port 7001 from Expressway-E to Expressway-C

    D. port 2222 from Expressway-C to Expressway-E

  • Question 40:

    Why would a Cisco Jabber contact under Hybrid Messaging Integration be grayed out?

    A. The contact uses Cisco Webex Teams and Jabber and remains as Do not Disturb for 30 minutes.

    B. The contact was using only Cisco Webex Teams and changed the status to Away.

    C. The contact set Out of the O ce for Cisco Webex Teams.

    D. The other user has not used Cisco Webex Teams or Jabber within the last 72 hours, so they are ofiine.
