Nokia Nokia Certifications 4A0-101 Questions & Answers

• Question 181:

  Which of the following TLV fields is included in an IS-IS Hello packet?

  A. Area addresses TLV Intermediate system neighbors TLV Authentication information TLV

  B. Intermediate system neighbors TLV Area addresses TLV LSP entries TLV

  C. The IP internal reachability information TLV Area Addresses TLV Authentication Information TLV

  D. The IP external reachability information TLV Area addresses TLV Intermediate system neighbors TLV

  Correct Answer: A

• Question 182:

  Which of the following is optional when configuring IS-IS on the Alcatel-Lucent 7750 SR?

  A. Configuring IS-IS interfaces

  B. Enabling IS-IS

  C. Configuring level capabilities

  D. Specifying an area address

  Correct Answer: C

• Question 183:

  If two routers running IS-IS protocols are exchanging Hello packets with different authentication types, which of the following statements regarding the adjacency state established between them is true?

  A. Different authentication types are not possible because IS-IS only supports password authentication.

  B. An adjacency will not be formed

  C. The two routers negotiate the authentication type and then reach the up state.

  D. Only an L2 adjacency will form, as long as both routers are L2 capable.

  Correct Answer: B

• Question 184:

  Click the exhibit button.

  Which of the following statements best describes the format of data traffic sent from the PC to the server?

  A. The source IP address will be the address of the PC, and the destination IP address will be the system IP address of router R1; the source MAC address will be the MAC address of the PC, and the destination MAC address will be the MAC address of the router R1 port connected to the PC.

  B. The source IP address will be the address of the PC, and the destination IP address will be the IP address of the router R1 port connected to the PC, the source MAC address will be the MAC address of the PC, and the destination MAC address will be the MAC address of the router R1 port connected to the PC.

  C. The source IP address will be the address of the PC, and the destination IP address will be the IP address of the server, the source MAC address will be the MAC address of the PC, and the destination MAC address will be the MAC address of the server.

  D. The source IP address will be the address of the PC, and the destination IP address will be the IP address of the server; the source MAC address will be the MAC address of the PC, and the destination MAC address will be the MAC address of the router R1 port connected to the PC.

  Correct Answer: D

• Question 185:

  An operator configures an Alcatel-Lucent 7750 SR with a loopback interface and IPv6 address. The operator then configures a routing policy to redistribute the loopback prefix into OSPFv3. What type of LSA is used to advertise the route to other OSPFv3 routers in the same area?

  A. Router LSA

  B. AS External LSA

  C. Intra-Area Prefix LSA

  D. Inter-Area Prefix LSA

  E. Network LSA

  F. None of the statements are correct.

  Correct Answer: B

• Question 186:

  Which of the following OSPFv3 LSAs have an AS scope?

  A. Link Local LSA

  B. Router LSA

  C. Network LSA

  D. Inter-Area Router LSA

  E. Intra-Area Prefix LSA

  F. None of the above LSAs have an AS scope.

  Correct Answer: F

• Question 187:

  Which of the following statements regarding link state protocols are true? (Choose two)

  A. When a router receives updates from its neighbors, it adds them to its link state database, performs an SPF computation, and sends the results to its neighbors.

  B. An SPF computation is done by each router to determine the best path to destination networks. All the best paths determined by the SPF calculation will be seen in the route table.

  C. Each router constructs its own link state database with updates received from neighbors.

  D. An SPF computation is done by each router to determine the best path to destination networks. All the best paths determined by the SPF calculation will be offered to the route table manager.

  Correct Answer: CD

• Question 188:

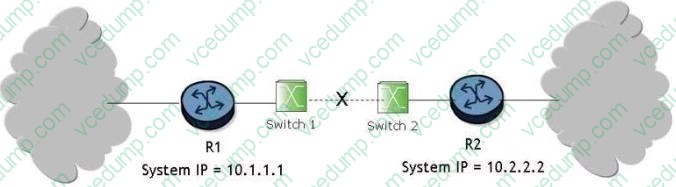

  Click the exhibit button.



  Given the diagram in the exhibit, what would be the correct static route configuration on the router on the right, if it is an Alcatel-Lucent 7750 SR?

  A. config> static-route 0.0.0.0/0 next-hop 10.1.2.2

  B. config>router> static-route 0.0.0.0 255.255.255.255 next-hop 10.1.2.1

  C. config>router> static-route 0.0.0.0/0 next-hop 10.1.2.2

  D. config>router> static-route 0 0.0 0/0 next-hop 10.1.2.1

  Correct Answer: D

• Question 189:

  Which of the statements about the output in the exhibit is FALSE?



  A. The system interface is configured with IPv6 address 2001DB8 1:100:1/128

  B. All interfaces are configured for IPv4 and IPv6.

  C. Interface "toR2" is configured with a globally routed IPv6 address.

  D. Interface "toR3" is not configured for IPv6 with a global IPv6 address.

  Correct Answer: B

• Question 190:

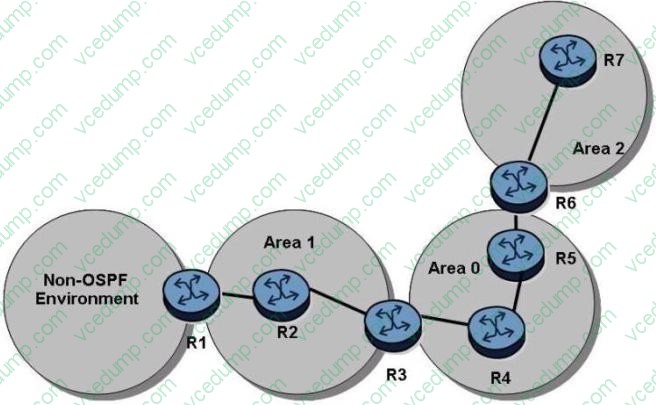

  Click the exhibit button.



  192.168.3.1 is a loopback interface on router R2 and is distributed to OSPF area 0, but the ping fails from router R3. Which of the following is a possible solution to the problem?

  A. Add the "originate-default-route" option in the NSSA area configuration on router R3

  B. Add the "summaries" option to the NSSA area configuration on router R1

  C. Make a static route on router R1 to 192.168.3.1

  D. Make a default route on router R2

  Correct Answer: B
