Nokia Nokia Certifications 4A0-107 Questions & Answers

• Question 171:

  On the Nokia 7750 SR, which of the following QoS-related policies can be configured on a SAP? (Choose three)

  A. The slope-policy

  B. The SAP-ingress policy

  C. The SAP-egress policy

  D. The network-queue policy

  E. The scheduler-policy

  Correct Answer: BCE

• Question 172:

  It is necessary for Tier 1 schedulers to obtain bandwidth from a higher tier scheduler.

  A. TRUE

  B. FALSE

  Correct Answer: B

• Question 173:

  In which of the following scenarios is the egress port scheduler useful? (Choose two)

  A. A customer is complaining that his VoIP traffic is being dropped even though it is sending the correct DSCP markings. Packets are not being dropped on ingress.

  B. A customer is complaining that his VoIP traffic is being dropped even though it is sending the correct DSCP markings. Packets are being dropped on ingress.

  C. A commercial builder has requested numerous dot1Q epipes, VPRNs, and VPLS services to a business park and is only paying up to a maximum 200Mbps.

  D. An equipment manufacturer has requested a NULL epipe service that will transparently pass dot1Q between the new location and national headquarters.

  Correct Answer: AC

• Question 174:

  Which of the following entities can scheduler policies be applied to? (Choose two)

  A. Network ingress port

  B. Epipe ingress SAP

  C. ES egress SAP

  D. Ingress MDA

  E. VPRN ingress interface

  F. Shared buffer space

  Correct Answer: BC

• Question 175:

  Which of the following statements describe the primary objectives of the policing of traffic flows on the Nokia 7750 SR? (Choose two)

  A. Ensure that traffic flows conform to their traffic profile.

  B. Log violations of metered traffic flows exceeding the CIR value set on the entity across which the traffic is moving.

  C. Provide fairness between traffic flows, so that conforming (in-profile) traffic flows are not starved of bandwidth and/or buffer space by non-conforming (out-of-profile) flows.

  D. Minimize packet loss and reduce end to end latency.

  E. Ensure that variable latencies do not cluster short bursts of originally conforming packets and render them nonconforming.

  Correct Answer: AC

• Question 176:

  In the context of hierarchical scheduling, a scheduler is configured with a CIR weight of 0. Which of the following statements is TRUE?

  A. The scheduler will be allocated its "within CIR" bandwidth before all other children at the same level have received their "within CIR" bandwidth.

  B. The scheduler will be allocated its "within CIR" bandwidth after all other children at the same level have received their "within CIR" bandwidth.

  C. The scheduler will be allocated its "within CIR" bandwidth after all other children at all levels have received their "within CIR" bandwidth.

  D. The scheduler will not be allocated its "within CIR" bandwidth.

  Correct Answer: D

• Question 177:

  Click the exhibit button below. Given the scheduler-policy (below), how much bandwidth can the best-effort traffic receive (PIR and CIR) when the ingress rate of each queue is 10Mbps?



  A. PIR = 4Mbps. CIR = 1Mbps

  B. PIR = 1Mbps, CIR = 1 Mbps

  C. PIR = 10Mbps, CIR = 1Mbps

  D. PIR = 5Mbps, CIR = 1.25Mbps

  E. PIR = 1.25Mbps, CIR = 1.25Mbps

  Correct Answer: B

• Question 178:

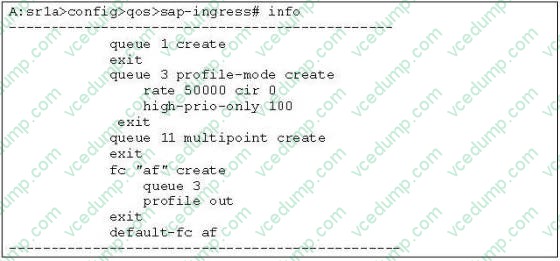

  Click the exhibit button below. A service provider has applied the SAP-ingress policy configuration below on his customer's SAP. The service provider notices that all of the customer's traffic is being dropped at the SAP-ingress. Which of the following actions can resolve the problem, if applied on its own? (Choose three)



  A. Set the CIR of queue 3 to a non-zero value corresponding to the customer's expected bandwidth requirements.

  B. Set queue 3 to use priority mode.

  C. Set the traffic classification of packets to in-profile.

  D. Set the high-priority-only value to 0.

  E. Map AF traffic to queue 1

  Correct Answer: CDE

• Question 179:

  Forwarding subclasses are only relevant to, and are therefore applied within the context of, a _____________policy.

  A. network

  B. scheduling

  C. slope

  D. SAP-ingress

  E. network-queue

  Correct Answer: D

• Question 180:

  To manage the shared buffer space at network ports, slope policies are applied on _________ for the ingress direction, and on ________ or _________ for the egress direction.

  A. Interfaces, ports, SAPs

  B. Ports, ports, MDAs

  C. MDAs, MDAs, ports

  D. Interfaces, interfaces. MDAs

  E. MDAs, ports, interfaces

  Correct Answer: C
