Nokia Nokia Certifications 4A0-C01 Questions & Answers

• Question 651:

  Click on the exhibit.



  Based on the topology shown and the route tables of routers R3 and R4, which of the following is correct?

  A. There is no route leaking configured on router R1 or router R2.

  B. Route leaking is configured on router R1 but not on router R2.

  C. Route leaking is configured on router R2 but not on router R1.

  D. Route leaking is configured on both router R1 and router R2.

  Correct Answer: D

• Question 652:

  An LSP path is configured as follows:

  -Shared-explicit reservation style

  -Make-before-break (MBB) enabled

  -500Mpbs bandwidth reserved on a 1Gbps link

  With 100Mbps of unreserved bandwidth remaining, the operator increases the LSP-path's bandwidth reservation to 900Mbps. What happens to the existing LSP?

  A. CSPF looks for the delta bandwidth, taking down the first path if necessary.

  B. CSPF looks for the delta bandwidth, implementing make-before-break.

  C. After 5 failed attempts to find the bandwidth requested, the head end disables the LSP.

  D. CSPF looks for the entire bandwidth requested, implementing MBB.

  Correct Answer: B

• Question 653:

  Which type of OSPF LSA lists the routers attached to a broadcast network?

  A. Type 1

  B. Type 2

  C. Type 3

  D. Type 4

  E. Type 5

  Correct Answer: B

• Question 654:

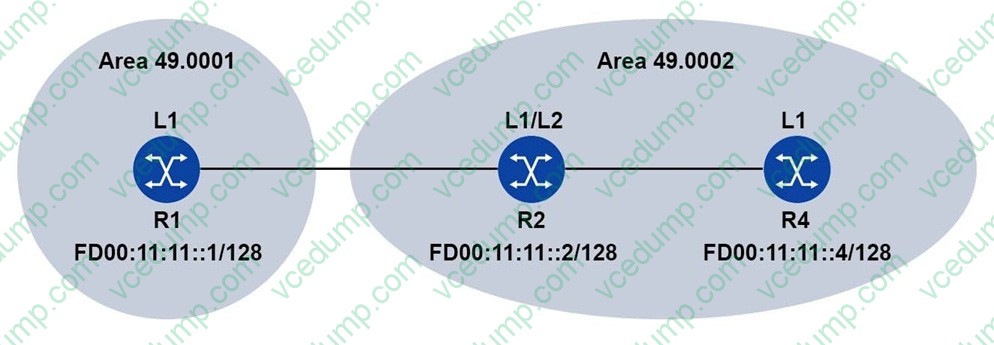

  If routers R1 and R2 have a Level 1 and Level 2 IS-IS adjacency, which of the following statements are true? Choose two answers.

  A. Routers R1 and R2 are in different areas,

  B. Routers R1 and R2 are in the same area.

  C. Routers R1 and R2 will send a Level 1 Hello PDU and Level 2 Hello PDU, if the interface type between them is point-to-point.

  D. Routers R1 and R2 will send a Level 1 Hello PDU and Level 2 Hello PDU, if the interface type between them is broadcast.

  E. Routers R1 and R2 will send a Level 1/2 Hello PDU, if the interface type between them is broadcast.

  Correct Answer: BD

• Question 655:

  Click on the exhibit.



  OSPF is operational on all links in the network diagram, all routers are the same cost, and all routers are configured with an ECMP value of 4. Router R5 advertises the prefix 192.168.3.0/24 into OSPF.

  How many entries for prefix 192.168.3.0/24 will be in router R3's routing table?

  A. 0

  B. 1

  C. 2

  D. 3

  E. 4

  Correct Answer: C

• Question 656:

  Which of the following timers can be adjusted to reduce the time a router waits between attempts to reestablish an LSP after it has failed?

  A. Isp retry-timer

  B. Isp retry-limit

  C. mpls resignal-timer

  D. rsvp refresh-time

  E. router rsvp keep-multiplier

  Correct Answer: A

• Question 657:

  Click on the exhibit.



  Given the contents of the LSPs from routers R1 and R2, which of the following is TRUE?

  A. Router R1 summarizes the prefixes from router R3 as 192.168.0.0/16 and router R2 does not summarize the prefixes.

  B. Router R1 does not summarize the prefixes from routers R3 and R2 summarizes them as 192.168.0.0/16.

  C. Router R1 summarizes the prefixes from router R3 as 192.168.0.0/20 and router R2 does not summarize the prefixes.

  D. Router R1 does not summarize the prefixes from routers R3 and R2 summarizes them as 192.168.0.0/20.

  E. Both routers R1 and R2 summarize the prefixes from R3 as 192.168.0.0/20.

  F. Neither router R1 nor router R2 summarizes the prefixes from router R3.

  Correct Answer: E

• Question 658:

  Which of the following routing protocols are supported on the Alcatel-Lucent 7750 SR to enable constraint-based LSPs? (Choose two)

  A. RIPv2-TE

  B. CSPF

  C. OSPF-TE

  D. ISIS-TE

  E. RSVP-TE

  Correct Answer: CD

• Question 659:

  Which of the following is a valid IPv6 address equivalent to 2001:0da8:0000:0000:0024:0000:4ab9:0300?

  A. 2001:0da8:::0024:0000:4ab9:03

  B. 2001:0da8::0024::4ab9:0300

  C. 2001:da8::24::4ab9:300

  D. 2001:da8::24:0:4ab9:300

  Correct Answer: D

• Question 660:

  Which of the following indicates the path over which an LSP's tail end router will return an RSVP RESV message?

  A. The IGP FIB.

  B. The Reservation State Block (RSB)

  C. The Path State Block (PSB)

  D. The opaque database.

  Correct Answer: C
