Nokia Nokia Certifications 4A0-C01 Questions & Answers

• Question 731:

  Which of the following are top level TLV types defined for OSPF-TE? Choose two answers.

  A. Router address

  B. Traffic engineering metric

  C. Maximum bandwidth

  D. Link

  E. Admin Group

  Correct Answer: AD

• Question 732:

  An OSPF router receives an update in which the sequence number, age, and checksum are the same as the entry already in the topological database. What action does the router take?

  A. The link-state information is not populated in the database, but is forwarded to all neighbors.

  B. The link-state information already in the database is overwritten and the age is reset.

  C. The link-state information is not populated in the database and an acknowledgement is sent.

  D. The link-state information is regarded as old and nothing is done.

  E. A link-state request is performed to increase the sequence number.

  Correct Answer: C

• Question 733:

  Which LSA is used for OSPF-TE purposes?

  A. Type 9 LSA ?Link local LSA

  B. Type 10 LSA ?Area local LSA

  C. Type 8 LSA ?TE router LSA

  D. Type 11 LSA ?Network LSA

  Correct Answer: B

• Question 734:

  Click on the exhibit button below.



  Given the configuration shown, how much of a link's 100Mbps reservable bandwidth can an LSP access when configured for class-type 0 and priority 1?

  A. 10Mbps

  B. 20Mbps

  C. 30Mpbs

  D. 60Mbps

  E. 70Mbps

  Correct Answer: E

• Question 735:

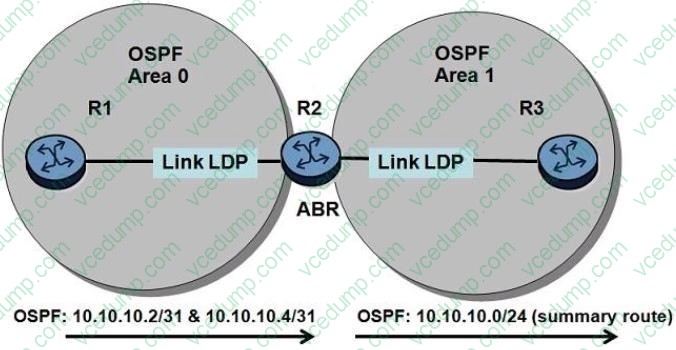

  Click on the exhibit.



  OSPF router R2 has both point-to-point and broadcast interfaces and it is not a DR for any interfaces. Router R2 detects the link failure between itself and router R1.

  Which of the following is correct?

  A. Router R2 sends an update to 224.0.0.5 on its broadcast and point-to-point interfaces. The DR does not send any updates.

  B. Router R2 sends an update to 244.0.0.5 on its point-to-point interfaces. The DR sends an update to

  224.0.0.6 on the broadcast network.

  C. Router R2 sends an update to 224.0.0.5 out its point-to-point interfaces and an update to 224.0.0.6 out its broadcast interface. The DR sends updates to 224.0.0.5 on the broadcast network.

  D. Router R2 sends an update to 224.0.0.6 out its point-to-point interfaces and an update to 224.0.0.5 out its broadcast interface. The DR sends an update to 224.0.0.6 on the broadcast networks.

  Correct Answer: C

• Question 736:

  Which default LDP parameter are you able to change with CLI?

  A. Label space mode

  B. Label retention

  C. Control mode

  D. Keepalive factor

  Correct Answer: D

• Question 737:

  What are the three databases that are maintained by a link-state protocol?

  A. Neighbor, adjacency, routing.

  B. Neighbor, topology, forwarding.

  C. Topology, routing, forwarding.

  D. Topology, forwarding, traffic classification.

  E. Neighbor, adjacency, forwarding.

  Correct Answer: B

• Question 738:

  Which of the following best describes the actions taken by an IS-IS router after it receives an LSP on a broadcast interface that is newer than the one in its database?

  A. The router sends a copy of the LSP from its database to its neighbor.

  B. The router updates its database with the LSP and floods a copy to its other neighbors.

  C. The router updates its database with the LSP, acknowledges the LSP with a PSNP and floods a copy to its other neighbors.

  D. The router updates its database with the LSP and acknowledges it with a PSNP.

  Correct Answer: B

• Question 739:

  Which is the OSPFv3 equivalent to the OSPFv2 Type 7 LSA?

  A. Intra-Area Prefix LSA

  B. Router LSA

  C. AS External LSA

  D. NSSA LSA

  Correct Answer: D

• Question 740:

  How can a router ID be created on an Alcatel-Lucent 7750 SR router? Choose three answers

  A. From the least significant 32 bits of the chassis MAC address.

  B. From the most significant 32 bits of the chassis MAC address.

  C. From the loopback IP address.

  D. By using the command "config router router-id X.X.X.X"

  E. From the system IP address.

  F. From the highest interface IP address.

  Correct Answer: ADE
