• Question 161:

  A router in AS 65100 receives three routes for 138.120.0.0/16. The first route has an AS Path of 65200 65400 65300 and a local preference of 150. The second route has an AS Path of 65200 65300 and a local preference of 100. The third route has an AS Path of 65600 65300 and a local preference of 100. Which route will appear in the RIB-out?

  A. Only the first route will appear in the RIB-Out.

  B. Only the second route will appear in the RIB-Out.

  C. Only the third route will appear in the RIB-Out.

  D. All routes will appear in the RIB-Out.

  Correct Answer: A

• Question 162:

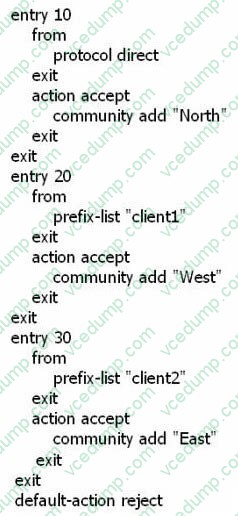

  What is the result of configuring the following policy statement as a BGP import policy on the Nokia 7750 SR?



  A. All BGP routes are accepted.

  B. All routes matching prefix lists "List-1" and "List-2" are rejected.

  C. BGP routes matching prefix lists "List-1" or "List-2" are rejected.

  D. BGP routes matching prefix lists "List-1" and "List-2" are rejected.

  Correct Answer: C

• Question 163:

  The configuration of an Nokia 7750 SR is given below. Router Rl has established BGP sessions with routers R2 and R3. Which of the following is TRUE?



  A. Router R1forms an iBGP session with router R2, and an eBGP session with router R3.

  B. Router R1forms iBGP sessions with routers R2 and R3.

  C. Router R1forms eBGP sessions with routers R2 and R3.

  D. The types of BGP sessions with routers R2 and R3 cannot be determined.

  Correct Answer: D

• Question 164:

  Click the exhibit button.



  Two neighboring OSPF routers have exchanged the packets shown. What state is the adjacency in?

  A. Full; both routers are exchanging Helios to maintain the adjacency.

  B. The adjacency is down.

  C. The adjacency is in exstart state.

  D. The adjacency is in the exchange state.

  Correct Answer: C

• Question 165:

  Which of the following statements apply to link state protocol behavior? Choose three answers.

  A. Routers broadcast the entire route table to all neighbors.

  B. Information about directly connected links is sent to all neighbors.

  C. An adjacency database is maintained by each router.

  D. The sequence number for an update is incremented as it is flooded from router to router.

  E. The topological database is the same for all routers in a single area.

  Correct Answer: BCE

• Question 166:

  Which of the following comparisons between E-pipes and VPLSes is FALSE?

  A. They both function as a Layer 2 switch from the service provider's perspective.

  B. They both support SAP encapsulations of null, dot1Q and Q-in-Q.

  C. They both use SAPs as the demarcation point between the customer and the provider.

  D. MAC addresses are learned by VPLSes, but not by E-pipes.

  Correct Answer: A

• Question 167:

  On which object is ADSPEC enabled?

  A. SDP

  B. Network port

  C. LSP

  D. Service

  E. RSVP

  Correct Answer: C

• Question 168:

  Click on the exhibit.



  Router R2 learns the networks shown from IS-IS. Router R2 is configured to redistribute routes from IS-IS to OSPF as shown. Assume the OSPF and IS-IS adjacencies are operational.

  How many OSPF Type 5 LSAs will router R1 receive from router R2?

  A. 0

  B. 1

  C. 2

  D. 3

  E. 4

  Correct Answer: D

• Question 169:

  Click the exhibit.



  When router A receives the BGP update for the 192.168.0.1/27 prefix, it propagates it to routers B and C. What action is taken by router B when it receives the update?

  A. Router B propagates the BGP update to routers D and C.

  B. Router B propagates the BGP update to router D.

  C. Router B detects duplicates in its BGP database and discards the update.

  D. Router B propagates the update to routers A, C and D.

  Correct Answer: B

• Question 170:

  Which of the following statements regarding OSPF routing updates on a multi-access network segment is true?

  A. In multi-access networks, a DR and BDR are elected only if there are more than two routers connected to the network segment.

  B. In multi-access networks, a DR and BDR are elected only if the subnet masks on the router interfaces are less than /30

  C. In multi-access networks, a DR and BDR are elected. To ensure resiliency, both the DR and BDR send link-state advertisements describing the network.

  D. In multi-access networks, a DR and BDR are elected. The DR sends link-state advertisements describing the network.

  Correct Answer: D
