Nokia Nokia Certifications 4A0-C04 Questions & Answers

• Question 261:

  Which of the following about SDPs is FALSE?

  A. An SDP is not required for a local service.

  B. A single SDP can carry different types of services.

  C. An SDP can simultaneously support GRE and MPLS encapsulation.

  D. An SDP can use the system IP address to indicate the far-end router.

  Correct Answer: C

• Question 262:

  An Nokia 7750 SR receives a route from an eBGP peer with a MED value of 500. What MED value is sent to iBGP peers?

  A. 100

  B. The IGP cost

  C. 500

  D. None

  Correct Answer: C

• Question 263:

  Click the exhibit button.



  If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same area. Choose two answers.

  A. The OSPF internal preference

  B. The IS-IS Level 1 internal preference

  C. The IS-IS Level 2 internal preference

  D. The OSPF external preference

  E. The IS-IS Level 2 external preference

  F. The IS-IS Level 1 external preference

  Correct Answer: BD

• Question 264:

  Static routing will be used in a network between a corporate head office, with many connected networks, and a branch office, with one connection to the head office. Which of the following best describes the likely configuration?

  A. The corporate head office router will have a default route and the branch site will have a more specific static route.

  B. The corporate head office router and the branch office router will both have specific static routes.

  C. The corporate head office router and the branch router will both have default routes.

  D. The corporate head office router will have a more specific static route and the branch office router will have a default route.

  Correct Answer: D

• Question 265:

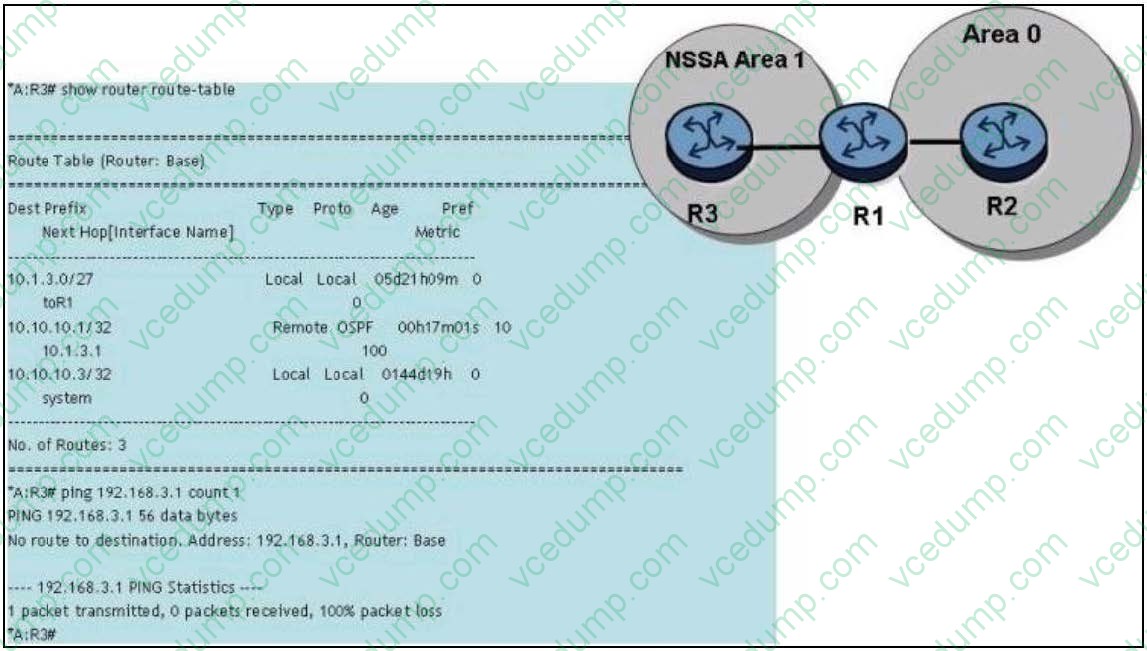

  Click the exhibit button.



  192.168.3.1 is a loopback interface on router R2 and is distributed to OSPF area 0, but the ping fails from router R3. Which of the following is a possible solution to the problem?

  A. Add the "originate-default-route" option in the NSSA area configuration on router R3

  B. Add the "summaries" option to the NSSA area configuration on router R1

  C. Make a static route on router R1 to 192.168.3.1

  D. Make a default route on router R2

  Correct Answer: B

• Question 266:

  Click the exhibit.



  Router R6 is a route reflector with clients R1, R2 and R5. Router R3 advertises the prefix 192.168.1.0/27 to routers R1, R2 and R5. How many routes for prefix 192.168.1.0/27 will router R6 receive?

  A. 1

  B. 2

  C. 3

  D. None

  Correct Answer: C

• Question 267:

  Click the exhibit button.



  Given the topology and the show commands, and assuming that router R2 advertises all of its loopbacks into OSPF, what is the correct router R1 configuration?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 268:

  Click the exhibit button.



  What can you deduce from the show command on router R6?

  A. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.5.

  B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.

  C. The router R6 interface is in a multi-access segment. It is the BDR, which is why it is not adjacent to the other routers.

  D. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.3.

  Correct Answer: B

• Question 269:

  Click the exhibit button.



  The OSPF packets shown have been exchanged between two neighbors. What state is the OSPF adjacency in?

  A. The adjacency state is two way because both routers have received a database description packet.

  B. The adjacency is in the exchange state. The next step is to exchange link state request and link state update packets.

  C. The adjacency is in the ex start state. The routers have exchanged database description packets, but still have to negotiate the starting sequence number.

  D. The adjacency state is full. The routers are exchanging database description packets to notify each other that all link state advertisements have been received.

  Correct Answer: C

• Question 270:

  Click the exhibit.



  The operator at PE1 wants to analyze the traffic between CE4 and PE2. On an Nokia 7750 SR, which of the following is required as part of the configuration?

  A. Both PE1 and PE2 need a mirror source.

  B. PE2 needs a mirror source with the remote source specified.

  C. PE1 needs a mirror source with the remote source specified.

  D. Both PE1 and PE2 need a mirror destination.

  E. PE2 needs a mirror destination that specifies a SAP.

  Correct Answer: D
