• Question 191:

  You are studying for finals in the student lounge. When your laptop is connected to the wireless network, access to the Internet is slow. When you plug your laptop into a wall jack, you can no longer access the Internet at all. You run the ipconfig /all command. The results are shown in the following image:



  Use the drop-down menus to select the answer choice that completes each statement. Each correct selection is worth one point.

  Hot Area:



  Correct Answer:



• Question 192:

  For each of the following statements, select Yes if the statement is true. Otherwise, select No.

  Each correct selection is worth one point.

  Hot Area:



  Correct Answer:



• Question 193:

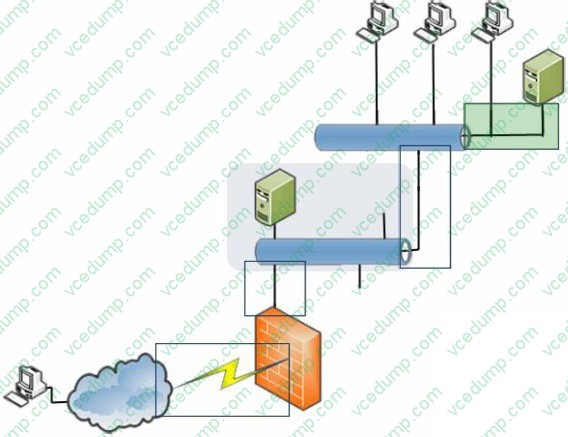

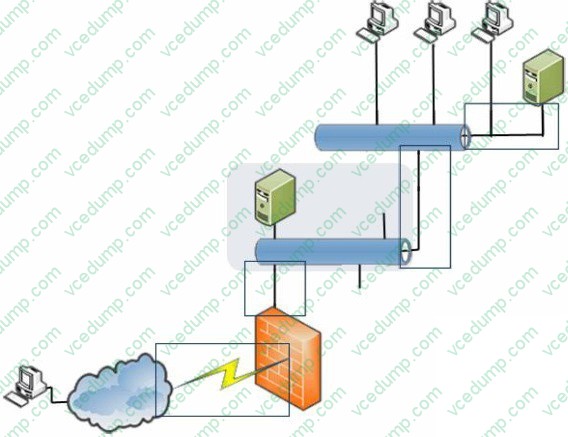

  Where in the diagram is a T3 connection possible? (To answer, select the appropriate connection in the diagram in the answer area.)

  Hot Area:



  Correct Answer:



• Question 194:

  For each of the following statements, select Yes if the statement is true. Otherwise, select No. Each correct selection is worth one point.

  Hot Area:



  Correct Answer:



  *

  Yes.

  QoS traffic control: Regulate data flows by classifying, scheduling, and marking packets based on priority and by shaping traffic (smoothing bursts of traffic by limiting the rate of flow). Traffic control mechanisms segregate traffic into service

  classes and control delivery to the network. The service class assigned to a traffic flow determines the QoS treatment the traffic receives.

  *

  Yes.

  The goal of QoS is to provide preferential delivery service for the applications that need it by ensuring sufficient bandwidth, controlling latency and jitter, and reducing data loss.

  *

  No

• Question 195:

  Network client computers running Windows 8.1 and Windows 10 are configured to receive IPv4 addresses through DHCP. The DHCP server fails. For each of the following statements, select Yes if the statement is true. Otherwise, select No.

  Hot Area:



  Correct Answer:



  The IpReleaseAddress and IpRenewAddress functions are used to release and renew the current Dynamic Host Configuration Protocol (DHCP) lease. The IpReleaseAddress function releases an IPv4 address previously obtained through DHCP. The IpRenewAddress function renews a lease on an IPv4 address previously obtained through DHCP. It is common to use these two functions together, first releasing the lease with a call to IpReleaseAddress, and then renewing the lease with a call to the IpRenewAddress function. When a DHCP client has previously obtained a DHCP lease and IpReleaseAddress is not called before the IpRenewAddress function, the DHCP client request is sent to the DHCP server that issued the initial DHCP lease. This DHCP server may not available or the DHCP request may fail. When a host has previously obtained a DHCP lease and IpReleaseAddress is called before the IpRenewAddress function, the DHCP client first releases the IP address obtained and sends a DHCP client request for a response from any available DHCP server.

  References: https://docs.microsoft.com/en-us/windows/desktop/IpHlp/managing-dhcp-leases-using-ipreleaseaddress-and-iprenewaddress

• Question 196:

  Your network uses routers configured with the RIP router protocol.

  For each of the following statements, select Yes if the statement is true. Otherwise, select No.

  NOTE: Each correct selection is worth one point.

  Hot Area:



  Correct Answer:



  Routing Information Protocol (RIP) uses hop count as the metric to rate the value of different routes. The hop count is the number of devices that can be traversed in a route. A directly connected network has a metric of zero; an unreachable network has a metric of 16. This limited metric range makes RIP unsuitable for large networks. The Routing Information Protocol (RIP) sends routing-update messages at regular intervals and when the network topology changes. When a device receives a RIP routing update that includes changes to an entry, the device updates its routing table to reflect the new route. The metric value for the path is increased by 1, and the sender is indicated as the next hop. RIP devices maintain only the best route (the route with the lowest metric value) to a destination. After updating its routing table, the device immediately begins transmitting RIP routing updates to inform other network devices of the change. These updates are sent independently of the regularly scheduled updates that RIP devices send.

  Summarizing routes in RIP Version 2 improves scalability and efficiency in large networks. Summarizing IP addresses means that there is no entry for child routes (routes that are created for any combination of the individual IP addresses

  contained within a summary address) in the RIP routing table, reducing the size of the table and allowing the router to handle more routes.

  It is a stable protocol that uses a distance-vector algorithm to calculate routes.

  References:

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_rip/configuration/15-mt/irr-15-mt-book/irr-cfg-info-prot.html

• Question 197:

  You deploy a computer running Windows Server 2016 in your perimeter network. You want to use this computer to route traffic between the Internet and your network.

  Which role do you need to configure?

  To answer, select the appropriate role in the answer area.

  Hot Area:



  Correct Answer:



  Network Controller is a highly available and scalable server role, and provides one application programming interface (API) that allows Network Controller to communicate with the network, and a second API that allows you to communicate with Network Controller.
