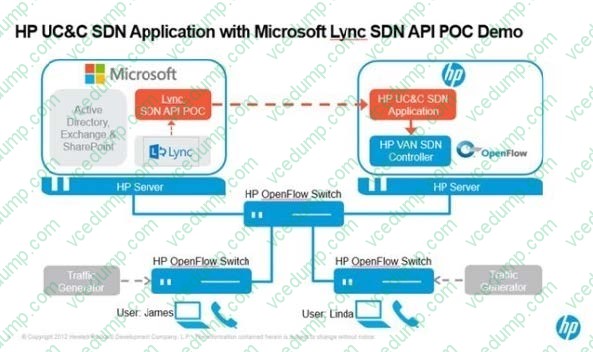

• Question 61:

  A network administrator is attempting to forward HTTP traffic out of port Gigabit Ethernet 2 on an HP 3800 switch. The switch has negotiated to use OpenFlow 1.0 with the HP VAN SDN Controller. Which REST API call will correctly update the flow table of the switch with an entry that does not require active matching traffic to keep the flow entry in the OpenFlow table?







  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

  Note:

  idle_timeout - Number of idle seconds before the flow entry is removed. Defaults to no idle timeout.

  priority - When using non-exact (wildcarded) matches, this specifies the priority for overlapping matches.

  Higher values are higher priority. Not important for exact or non-overlapping entries.

  actions - A list of actions to apply

  . output: if no group action is specified, forward the packet on the port specified by the output action

• Question 62:

  Refer to the exhibit.



  OpenFlow has been enabled on an HP switch and is communicating with an HP VAN SDN Controller The network administrator has checked the switch flow table entries via the controller graphical user interface, but is unsure of the format. The administrator has taken a screenshot and sent you a copy. Why does the flow table display n/a?

  A. The switch has negotiated to use OpenFlow 1.0 with the controller for this instance.

  B. The switch has negotiated to use OpenFlow 1.3 with the controller for this instance,

  C. The switch has negotiated to use standard mode with the controller for this OpenFlow instance.

  D. The switch has negotiated to use ip-control-table-mode with the controller for this OpenFlow instance.

  Correct Answer: A

  Table ID n/a indicates that OpenFlow 1.0 is in use. Example of the Flows View for a Specific OpenFlow Device



  The "Table ID" field applies to OpenFlow 1.3 and greater, but not to OpenFlow 1.0.

  Reference: HP VAN SDN Controller Administrator Guide

• Question 63:

  Refer to exhibit.



  Which HP VAN SDN Controller interface can a network administrator use to troubleshoot the southbound interface of the controller and displays the output shown in the exhibit?

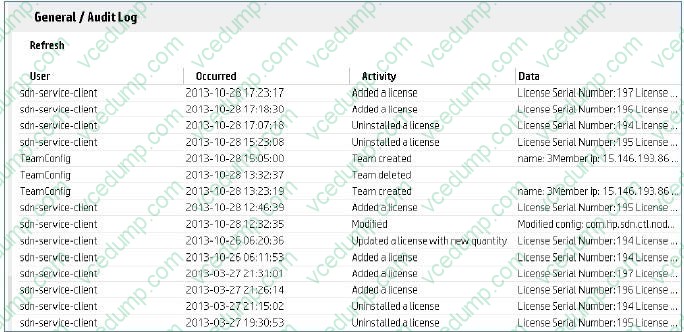

  A. Audit Log

  B. OpenFlow Monitor

  C. OpenFlow Tracer

  D. Dissector

  Correct Answer: C

  The OpenFlow Tracer is a built-in packet sniffer similar to Wireshark.

  Incorrect:

  Not Openflow Monitor:



• Question 64:

  Refer to the exhibit



  A team of HP VAN SDN Controllers has been configured using the controllers shown in the exhibit. Which controller will become the team leader by default?

  A. 192.168.56.2

  B. 192.168.56.7

  C. 192.168.56.5

  D. 192.168.56.6

  Correct Answer: C

  The controller with the highest priority.

  Once a team is configured, the configuration and monitoring of team members and their associated OpenFlow switches is performed by the team manager. If the team manager goes down, the controller with the next highest priority in the team configuration becomes the team manager.

  Note: Team Management Each controller belonging to a team is a team member. To centralize team management and control, one controller is designated as the team manager. Teaming is configured on one controller and is automatically

  propagated to the other controllers in the team, regardless of which controller becomes the team manager.

  Reference: HP VAN SDN Controller Administrator Guide

• Question 65:

  A single HP VAN SDN Controller is used to control OpenFlow enabled switches that operate in virtualization mode. An internal application is installed on the controller that redirects classified traffic to a specific VLAN. The connection between the controller and the network is lost. The HP OpenFlow enabled

  switches' connection interruption mode is set to standalone mode.

  What is the forwarding behavior of the OpenFlow enabled switches?

  A. Based on the timeout values, the flow entries age out, and only OpenFlow traffic is discarded

  B. All flow entries are removed, and traffic is forwarded using normal switch processing.

  C. All flow entries are set not to age out, and the classified traffic is still redirected.

  D. Based on the timeout values, the flow entries are removed from the flow tables, and all traffic is discarded on the switches.

  Correct Answer: B

  OpenFlow instance connection interruption mode You can set the type of behavior when the switch loses connection with the controller. fail-standalone If the switch loses connection with all of the controllers, packets and messages of new flows behave as a legacy switch or router would. Existing flows of this OpenFlow instance are removed.

  Reference: HP OpenFlow Switches

  (page 21) http://h20628.www2.hp.com/km-ext/kmcsdirect/emr_na-c03512348-4.pdf

• Question 66:

  Refer to the exhibit.



  Mininet is being used by a developer to test an OpenFlow RESTful API application developed in Python. The developer is able to view the switches in the OpenFlow topology diagram shown in the exhibit, but no hosts are displayed in the topology diagram. The same behavior is seen when making a RESTful API call for nodes via the RESTful API. Switch information is provided via API calls from the HP VAN SDN Controller, but no nodes are shown.

  What is a possible issue?

  A. Traffic needs to be sent by the Mininet nodes before they will be discovered by the HP VAN SDN Controller.

  B. The developer is using the incorrect API calls and needs to ensure that tokens are sent when requesting information from the HP VAN SDN Controller

  C. OpenFlow communication between Mininet and the HP VAN SDN Controller is not functioning correctly. Wireshark can be used to aid with troubleshooting the OpenFlow communication.

  D. The Topology Service has been stopped on the HP VAN SDN Controller and needs to be started.

  Correct Answer: D

  The Topology service is used to create a network graph and compute the shortest path between two hosts.

  Note: Mininet is a network emulator that can create and emulate an entire OpenFlow network locally on

  your PC.

  Incorrect:

  Not C: No need to analyze packages.

  Wireshark is a free and open-source packet analyzer. It is used for network troubleshooting, analysis,

  software and communications protocol development, and education.

  Reference: HP VAN SDN Controller Administrator Guide

• Question 67:

  An HP VAN SDN Controller team is configured consisting of three controllers, using default settings.

  The first controller is configured with IP address 10.1.1.1 and priority 10. The second controller is

  configured with IP address 10.1.1.2 and priority 20.

  The third controller is configured with IP address 10.1.1.3 and priority 30.

  Currently the third controller (IP address 10.1.1.3) is the leader device. An administrator reboots the third

  controller.

  Which controller will be the leader once this controller comes back online?

  A. the controller with the IP address 10.1.1.3

  B. the controller with the IP address 10.1.1.1

  C. the controller with the IP address 10.1.1.2

  D. The leader role will be shared amongst all team members.

  Correct Answer: C

  Once a team is configured, the configuration and monitoring of team members and their associated OpenFlow switches is performed by the team manager. If the team manager goes down, the controller with the next highest priority in the team configuration becomes the team manager.

  Note: Team Management Each controller belonging to a team is a team member. To centralize team management and control, one controller is designated as the team manager. Teaming is configured on one controller and is automatically propagated to the other controllers in the team, regardless of which controller becomes the team manager.

  Reference: HP VAN SDN Controller Administrator Guide

• Question 68:

  Refer to the exhibit.



  (page 21)

  http://h20628.www2.hp.com/km-ext/kmcsdirect/emr_na-c03512348-4.pdf

  An SDN developer has tried use RSDoc to dis-cover the datapaths in the network. However, the error in the exhibit is displayed. Why is an error returned rather than the datapaths?

  A. RSDoc does not support the submission of datapath requests until a token has been received oURL.

  B. A username and password has not been submitted to the controller via RSDoc.

  C. A Service Token has been submitted to the controller via the Token field in RSDoc.

  D. An Auth Token has not been submitted to the controller via the Token field in RSDoc.

  Correct Answer: D

  This is an AuthenticationException.

  Note: The SDN controller relies on token-based authentication to authenticate its REST APIs. In other words, all REST APIs except the /auth and /rsdoc APIs require an authentication token embedded in an "X-Auth-Token" header to be included with each REST request. The /auth API allows you to obtain a token, while the /rsdoc API provides live REST API documentation information about the controller's REST API.

  Reference: HP VAN SDN Controller Administrator Guide

• Question 69:

  An administrator wants the switches to forward traffic in the legacy mode. If all the controllers fail, which action should the administrator take?

  A. Install a packetin rule as the lowest priority rule in the flow table.

  B. Configure the instance to fail in standalone mode.

  C. Install a packet_out rule as the lowest priority rule in the flow table.

  D. Configure the instance to fail in interruption mode.

  Correct Answer: B

  OpenFlow instance connection interruption mode

  You can set the type of behavior when the switch loses connection with the controller.

  fail-standalone

  If the switch loses connection with all of the controllers, packets and messages of new flows behave as a

  legacy switch or router would. Existing flows of this OpenFlow instance are removed.

  Reference: HP OpenFlow Switches

• Question 70:

  An HP Provision switch loses its OpenFlow connection to the HP VAN SDN Controller. How is traffic processed by default if no controller teaming is configured?

  A. Packets and messages destined to the controller are dropped. Flows continue to expire according to their time-outs. This is because the default setting on HP Provision switches is fail- standalone.

  B. Packets and messages of new flows behave as a legacy switch or router would. Existing flows of this OpenFlow instance are removed. This is because the default setting on HP Provision switches is fail-standalone.

  C. Packets and messages of new flows behave as a legacy switch or router would. Existing flows of this OpenFlow instance are removed. This is because the default setting on HP Provision switches is fail-secure.

  D. Packets and messages destined to the controller are dropped. Flows continue to expire according to their time-outs. This is because the default setting on HP Provision switches is fail- secure.

  Correct Answer: D

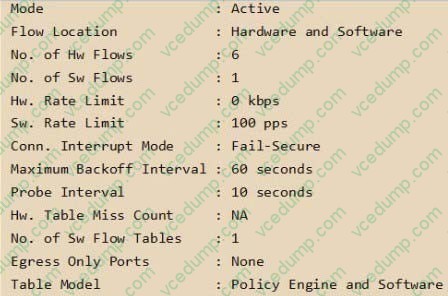

  OpenFlow instance connection interruption mode

  You can set the type of behavior when the switch loses connection with the controller.

  OpenFlow instance connection interruption mode

  fail-secure

  If the switch loses connection with all of the controllers, packets and messages destined to the current

  controller are dropped. Flows continue to expire according to their time-outs.

  Default: fail-secure

  Reference: HP OpenFlow Switches

  (page 21)

  http://h20628.www2.hp.com/km-ext/kmcsdirect/emr_na-c03512348-4.pdf
