Microsoft Microsoft Certifications AZ-104 Questions & Answers

• Question 631:

  DRAG DROP

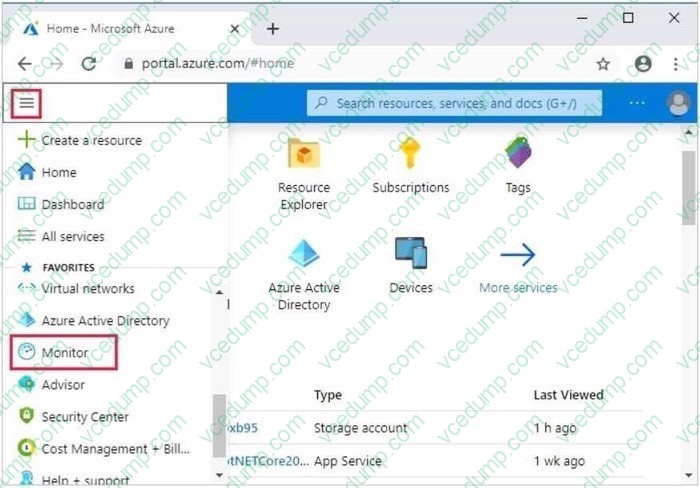

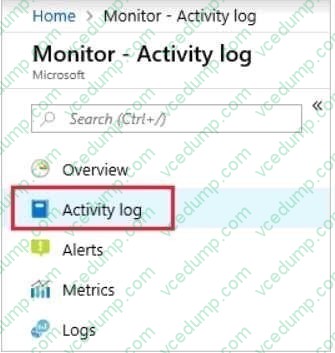

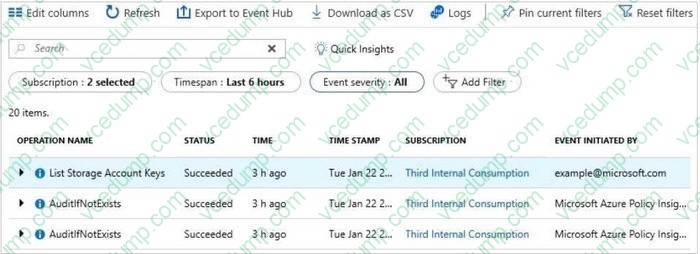

  You need to configure the alerts for VM1 and VM2 to meet the technical requirements.

  Which three actions should you perform in sequence? To answer, move all actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



• Question 632:

  DRAG DROP

  You have downloaded an Azure Resource Manager (ARM) template to deploy numerous virtual machines (VMs). The ARM template is based on a current VM, but must be adapted to reference an administrative password.

  You need to make sure that the password cannot be stored in plain text.

  You are preparing to create the necessary components to achieve your goal.

  Which of the following should you create to achieve your goal? Answer by dragging the correct option from the list to the answer area.

  Select and Place:



  Correct Answer:



  You can use a template that allows you to deploy a simple Windows VM by retrieving the password that is stored in a Key Vault. Therefore, the password is never put in plain text in the template parameter file.

  Reference: https://azure.microsoft.com/en-us/resources/templates/101-vm-secure-password/

• Question 633:

  DRAG DROP

  Your company has an Azure subscription that includes a number of Azure virtual machines (VMs), which are all part of the same virtual network.

  Your company also has an on-premises Hyper-V server that hosts a VM, named VM1, which must be replicated to Azure.

  Which of the following objects that must be created to achieve this goal? Answer by dragging the correct option from the list to the answer area.

  Select and Place:



  Correct Answer:



• Question 634:

  DRAG DROP

  You have an Azure subscription that contains the resources shown in the following table.



  You need to load balance HTTPS connections to vm1 and vm2 by using lb1.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



  Reference: https://docs.microsoft.com/en-us/azure/load-balancer/tutorial-load-balancer-standard-public-zone-redundant-portal

• Question 635:

  DRAG DROP

  You onboard 10 Azure virtual machines to Azure Automation State Configuration.

  You need to use Azure Automation State Configuration to manage the ongoing consistency of the virtual machine configurations.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  NOTE: More than one order of answer choices is correct. You will receive credit for any of the correct orders you select.

  Select and Place:



  Correct Answer:



  1: Upload a configuration to Azure Automation State Configuration

  2: Compile a configuration into a node configuration

  3: Check the compliance status of the node.

  Step 1: Create and upload a configuration to Azure Automation Step 2: Compile a configuration into a node configuration Step 3: Register a VM to be managed by State Configuration Step 4: Specify configuration mode settings Step 5: Assign a node configuration to a managed node Step 6: Check the compliance status of a managed node

  Reference: https://docs.microsoft.com/en-us/azure/automation/automation-dsc-getting-started https://docs.microsoft.com/en-us/azure/automation/tutorial-configure-servers-desired-state

• Question 636:

  DRAG DROP

  You have an Azure subscription. The subscription includes a virtual network named VNet1. Currently, VNet1 does not contain any subnets.

  You plan to create subnets on VNet1 and to use application security groups to restrict the traffic between the subnets. You need to create the application security groups and to assign them to the subnets.

  Which four cmdlets should you run in sequence? To answer, move the appropriate cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



  Step 1: New-AzureRmNetworkSecurityRuleConfig

  Step 2: New-AzureRmNetworkSecurityGroup

  Step 3: New-AzureRmVirtualNetworkSubnetConfig

  Step 4: New-AzureRmVirtualNetwork

  Example: Create a virtual network with a subnet referencing a network security group New-AzureRmResourceGroup -Name TestResourceGroup -Location centralus $rdpRule = New-AzureRmNetworkSecurityRuleConfig -Name rdp-rule Description "Allow RDP" - Access Allow -Protocol Tcp -Direction Inbound -Priority 100 -SourceAddressPrefix Internet - SourcePortRange * -DestinationAddressPrefix * -DestinationPortRange 3389 $networkSecurityGroup = New-

  AzureRmNetworkSecurityGroup -ResourceGroupName TestResourceGroup -Location centralus -Name "NSG-FrontEnd" -SecurityRules $rdpRule $frontendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name frontendSubnet -

  AddressPrefix "10.0.1.0/24" -NetworkSecurityGroup $networkSecurityGroup $backendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name backendSubnet - AddressPrefix "10.0.2.0/24" -NetworkSecurityGroup $networkSecurityGroup

  New-AzureRmVirtualNetwork -Name MyVirtualNetwork -ResourceGroupName TestResourceGroup - Location centralus -AddressPrefix "10.0.0.0/16" -Subnet $frontendSubnet,$backendSubnet

  References:

  https://docs.microsoft.com/en-us/powershell/module/azurerm.network/new- azurermvirtualnetwork?view=azurermps-6.7.0

• Question 637:

  DRAG DROP

  You are configuring serverless computing in Azure.

  You need to receive an email message whenever a resource is created in or deleted from a resource group.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



  References: https://docs.microsoft.com/en-us/azure/event-grid/monitor-virtual-machine-changes-event-grid-logic-app

  Action 1: Create an Azure Logic App



  Action 2: Create an Azure Event Grid Trigger



  Action 3: Create conditions and actions



  References: https://docs.microsoft.com/en-us/azure/event-grid/monitor-virtual-machine-changes-event-grid- logic-app

• Question 638:

  DRAG DROP

  You have an Azure subscription that contains an Azure Service Bus named Bus1. Your company plans to deploy two Azure web apps named App1 and App2. The web apps will create messages that have the following requirements:

  1.

  Each message created by App1 must be consumed by only a single consumer

  2.

  Each message created by App2 will be consumed by multiple consumers.

  Which resource should you create for each web app? To answer, drag the appropriate resources to the correct web apps. Each resource may be used once, more than once, or not at all. You may need to drag the split bar between panes or

  scroll to view content.

  NOTE: Each correct selection is worth one point.

  Select and Place:



  Correct Answer:



  Reference: https://docs.microsoft.com/en-us/azure/service-bus-messaging/service-bus-queues-topics-subscriptions

• Question 639:

  DRAG DROP

  You have an Azure subscription that contains an Azure virtual machine named VM1. VM1 runs Windows Server 2016 and is part of an availability set.

  VM1 has virtual machine-level backup enabled.

  VM1 is deleted.

  You need to restore VM1 from the backup. VM1 must be part of the availability set.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



• Question 640:

  DRAG DROP

  You have an Azure subscription that contains the following resources:

  1.

  a virtual network named VNet1

  2.

  a replication policy named ReplPolicy1

  3.

  a Recovery Services vault named Vault1

  4.

  an Azure Storage account named Storage1

  You have an Amazon Web Services (AWS) EC2 virtual machine named VM1 that runs Windows Server You need to migrate VM1 to VNet1 by using Azure Site Recovery.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:



  Correct Answer:



  Step 1: Deploy an EC2 virtual machine as a configuration server Prepare source include:

  Use an EC2 instance that's running Windows Server 2012 R2 to create a configuration server and register it with your recovery vault.

  Configure the proxy on the EC2 instance VM you're using as the configuration server so that it can access the service URLs.

  Step 2: Install Azure Site Recovery Unified Setup.

  Download Microsoft Azure Site Recovery Unified Setup. You can download it to your local machine and then copy it to the VM you're using as the configuration server.

  Step 3: Enable replication for VM1.

  Enable replication for each VM that you want to migrate. When replication is enabled, Site Recovery automatically installs the Mobility service.

  References:

  https://docs.microsoft.com/en-us/azure/site-recovery/migrate-tutorial-aws-azure
