IBM IBM Certified Deployment Professional C5050-062 Questions & Answers

• Question 41:

  Which steps are used to create or modify a process by combining plugin steps?

  A. Select the process, then define or edit it using the Design tab of the Process user interface

  B. Select the process, then define or edit it using the Edit tab of the Process user interface.

  C. Select a component, then define or edit its process using the Process tab of the Component user interface.

  D. Select a component, then define or edit its process using the Workflow tab of the Component user interface

  Correct Answer: A

  In the process editor you organize the steps in a process, specify their properties, and connect them to each other. By combining automation plug-in steps in the process editor, you can create fully automated deployment processes. When you create a process, you drag steps onto the design area and define the properties as you go. Property values can be specified when you define the process or at run time. The process flow is defined by drawing connections between steps. The following illustration, shows a series of automation-type plug-in steps and the connections between them.



  Note: A component process is a series of user-defined steps that operate on a component's artifacts. Each component has at least one process and can have several. Component processes are created with the process editor. The process editor is a visual drag-and-drop editor that enables you to drag process steps onto the design space and configure them as you go. Process steps are selected from a menu of standard steps.

  References: http://www.ibm.com/support/knowledgecenter/SS4GSP_6.1.3/ com.ibm.udeploy.reference.doc/topics/plugin_ch.html

• Question 42:

  You are integrating IBM UrbanCode Deploy (UCD) with a database in order to perform database deployments. Which statements is true about IBM UCD and the order of the SQL scripts to be executed?

  A. IBM UCD queries the target database to determine the order in which the scripts need to be executed.

  B. The order must be hardcoded into the deployment process.

  C. IBM UCD will only run scripts that have not been executed against a database. The order is irrelevant.

  D. IBM UCD uses a naming convention to determine the order to execute the scripts.

  Correct Answer: D

• Question 43:

  Which security types are used to secure the IBM UrbanCode Deploy server?

  A. Server Configuration and Web UI

  B. Security UI and Application Security

  C. Application Security and DevOps Security

  D. UI Security and DevOps Security

  Correct Answer: A



  References: http://www.ibm.com/support/knowledgecenter/en/SS4GSP_6.1.3/com.ibm.udeploy.admin.doc/ topics/security_types.html

• Question 44:

  A security type is a product area that can have permissions defined for it. Each security type has a set of permissions that affect how users interact with it. How many security types are available in IBM UrbanCode Deploy?

  A. 13

  B. 10

  C. 3

  D. 5

  Correct Answer: D

  A security type is a product area that has permissions defined for it. There are several security types predefined. They are system, application, release, deployment, status, and initiatives and changes.

  Other than the Status security type, permissions are predefined.

  References: http://www.ibm.com/support/knowledgecenter/SS4GCC_6.2.1/com.ibm.urelease.doc/topics/ security_types.html

• Question 45:

  In order to set up an integration with WebSphere, you first perform a WebSphere Topology Discovery. WebSphere is not installed in a default location and so you must notify IBM UCD concerning the location of the wsadmin executable. What is the name of the property that you must set, and where do you set it?

  A. You must set the wsadmin.location property on the correct resource.

  B. You must set the wsadmin.path property on the correct agent.

  C. You must set the wsadmin.executable on the correct resource.

  D. You must set the wsadmin.location on the correct agent.

  Correct Answer: B

  If WebSphere Application Server is deployed in a directory other than the default directory, you must set a property on the agent before you can run the WebSphere Topology Discovery step.

  1.

  Go to Resources > Agents > > Configuration > Agent Properties.

  2.

  Add a property named wsadmin.path.

  3.

  Set wsadmin.path to the fully qualified path to the wsadmin script (including the script name).

  References: http://www.ibm.com/support/knowledgecenter/SS4GSP_6.0.1/com.ibm.udeploy.plugins.doc/ topics/plugins_websphereportal_config_deploy.html

• Question 46:

  When integrating .NET applications for deployment to an IIS server, IBM UrbanCode Deploy requires a property be set on the resource for the location of the appcmd.exe file. Where is the Windows default location for appcmd.exe?

  A. C:\\Windows\System32\inetsrv

  B. C:Program Files\Common Files

  C. C:\\Program Files\MSBuild\Microsoft

  D. C:\\Windows\Microsoft.NET\Framework

  Correct Answer: A

  Appcmd.exe resides in the %windir%\system32\inetsrv directory, even for 64-bit Windows versions.

  References: https://technet.microsoft.com/en-us/library/cc730918(v=ws.10).aspx

• Question 47:

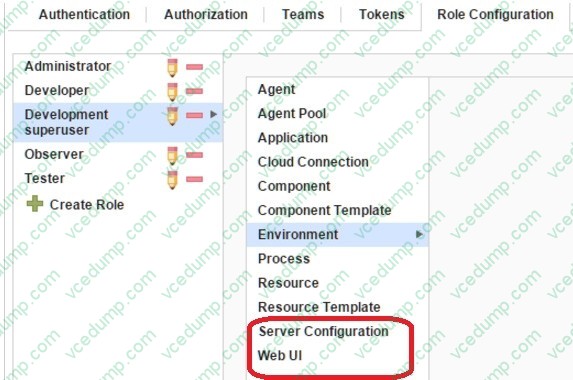

  A security type in IBM UrbanCode Deploy is a product area that can have permissions defined for it. Additional subtypes can be defined for the product areas. In which product areas is it impossible to define additional subtypes?

  A. Agents and Resources

  B. Web UI and Server Configuration

  C. License and Process

  D. Components and Applications

  Correct Answer: B

  Except for the web UI and server configuration product areas, you can create security subtypes for most product areas.

  References: https://www.ibm.com/support/knowledgecenter/en/SS4GSP_6.1.0/ com.ibm.udeploy.admin.doc/topics/security_types_create.html

• Question 48:

  What do you use to define a logical grouping of deployable that function as a single unit and contain definitions of automations and target environments?

  A. Component template

  B. Resource

  C. Application D. Resource template

  Correct Answer: B

  Component-type resources represent the components that are deployed to target environments. A

  resource is a logical deployment target that typically resolves to an agent and a user-defined construct that

  is based on the architectural model of IBM UrbanCode Deploy.

  If a resource is part of a hierarchy, it delegates its automation, if any, up the chain until it finds an agent.

  In IBM UrbanCode Deploy, deployable items are combined into logical groupings called components.

  Incorrect Answers:

  D: A resource template is a model for a group of resources. The template contains a hierarchy of resources, groups, and agent prototypes that is a starting point for creating new resources.

  References: http://www.ibm.com/support/knowledgecenter/SS4GSP_6.2.0/com.ibm.udeploy.doc/topics/ resources_ch.html

• Question 49:

  Which three statements are true about creating new component versions? (Select three.)

  A. New component versions can be created using the IBM UrbanCode Deploy client.

  B. New component versions can be created when updating the application configuration.

  C. New component versions can be created from the versions tab of the component.

  D. New component versions can be created using an IBM UrbanCode Deploy generic process.

  Correct Answer: ACD

  AD: Each time a component's artifacts are imported into the repository, including the first time, a separate version is stored in CodeStation. Versions can be assigned automatically by IBM UrbanCode Deploy, applied manually, or come from a build server.

  If the component does not import new versions automatically, you can import versions manually.

  C: Step 1: Step 2:





  References:

  http://www.slideshare.net/ibmrational/ucd-components (page 26)

  http://www.ibm.com/support/knowledgecenter/SS4GSP_6.2.2/com.ibm.udeploy.doc/topics/

  comp_version.html

• Question 50:

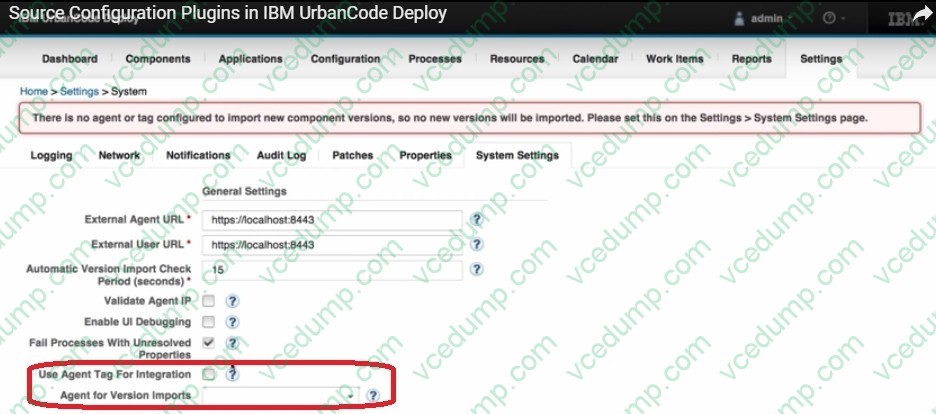

  Which statement is true about importing files into component versions from the file system?

  A. Component versions can only be imported from the file system via the UCD server process over port 2776.

  B. Component versions can only be imported from the file system using an agent installed on the IBM UrbanCode Deploy server.

  C. Any agent listed in the system settings can be used to import component versions from the file system.

  D. Any agent selected in the file import plug-in can be used to import component versions from the file system.

  Correct Answer: D
