IBM IBM Smarter Cities C7010-010 Questions & Answers

• Question 1:

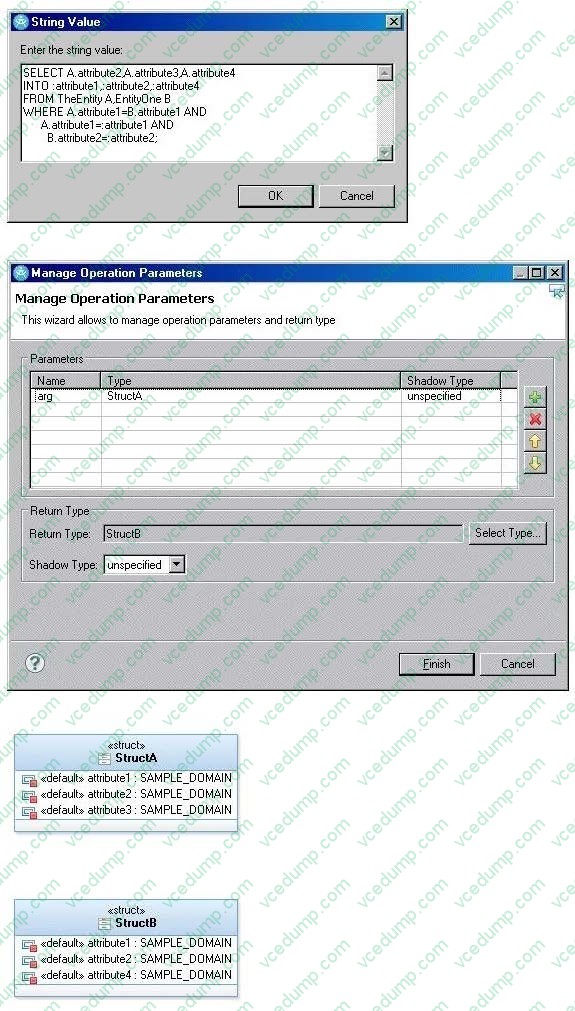

  Consider the following hand-crafted SQL statement (written for an <> entity operation) and the relevant modeled information presented: Which of the following statements are valid?





  A. A build generated will fail with the error message 'Error 20500 - incorrect SQL syntax defined for nonstandard operation on [Entity].[Operation]'.

  B. It will only be possible to test whether the syntax is well-formed by running the SQL.

  C. A build generated will complete successfully, but the entity operation may throw an exception at runtime.

  D. The use of Host variables ':attribute1' and ':attribute2' as both argument and return variables will cause a compilation error in the server application.

  Correct Answer: BC

• Question 2:

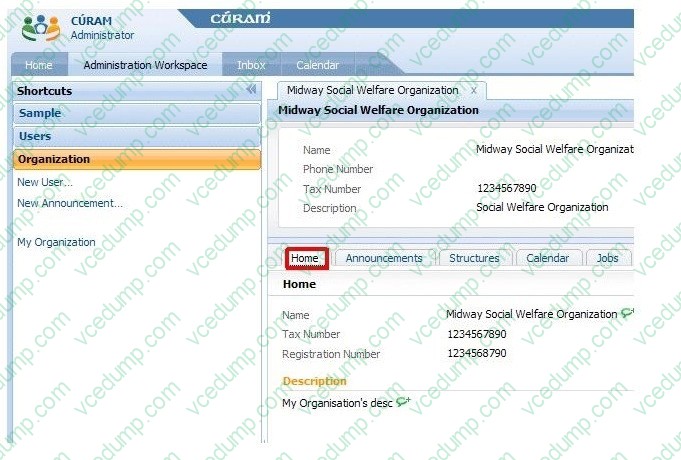

  Review the Screenshot presented.



  What type of application navigation element can be expected to correspond with the element highlighted by the red box?

  A. Selection

  B. Menu

  C. Tab

  D. Navigation

  E. Shortcut-Tab

  Correct Answer: B

• Question 3:

  Which of the following is a complete description of the process involved in creating a valid

  A. Create a new Index class containing the index attributes and add a named association between this class and the target Entity class

  B. Create a new Struct class containing the index attributes and add a named association with stereotype index between it and the target entity class

  C. Create a new Entity class with an attribute of stereotype index and add an association with stereotype index between it and the target Entity class

  D. Create a new Association class with an attribute of stereotype index and add an association between it and the target Entity class

  Correct Answer: B

• Question 4:

  What are three effects of running a build clean server command? [Select 3]

  A. All database tables are dropped and rebuilt

  B. All generated artifacts are deleted

  C. All code table files are recompiled

  D. All application navigation files are checked and loaded

  E. All client pages that have changed since the last build are regenerated

  F. All generated and handcrafted code is compiled

  Correct Answer: BCF

• Question 5:

  Which of the following statements about Multi-Select Lists are correct?

  A. Domains that use multi-select lists must be specified within the MULTIPLE_SELECT section of the Application.prx file.

  B. The property specified for the TARGET element must have a Domain Definition that ultimately unwinds to the String type because multiple user selections will be concatenated into a tab-delimited string.

  C. The INITIAL element used should declare a MULTI-SELECT attribute with the value true.

  D. If a SOURCE element is used within the MULTI_SELECT definition to pre-select items in the list, the Server Interface property it refers to should contain a tab-delimited string.

  Correct Answer: B

• Question 6:

  Examine the following piece of code:



  On the built JSP, what happens when the user clicks the Remove action control?

  A. Nothing happens, as there are no SERVER_INTERFACEs of PHASE SUBMITA.Nothing happens, as there are no SERVER_INTERFACEs of PHASE SUBMIT

  B. Only SERVER_INTERFACE RemoveServerInterface is invoked

  C. Only SERVER_INTERFACE ModifyServerInterface is invoked

  D. Both SERVER_INTERFACEs are invoked

  Correct Answer: D

• Question 7:

  Which three of the following entity stereotypes require the user to specify input parameters when modeling? [Select 3]

  A. nkread

  B. nkmodify

  C. nkreadmulti

  D. nsinsert

  E. nsremove

  F. readmulti

  Correct Answer: DEF

• Question 8:

  If a change is made to a UIM page, what are the minimum steps required to make the new page visible to the client browser?

  A. Restart the server and Tomcat and refresh the page.

  B. Stop the server and Tomcat, build a clean client, refresh in Eclipse, and restart the server and Tomcat.

  C. Stop Tomcat, do a build client, refresh in Eclipse, and restart Tomcat.

  D. Build a clean client and refresh in Eclipse.

  E. Build the client.

  Correct Answer: C

• Question 9:

  Which two of the following are valid options for model-specified validations? [Select 2]

  A. Maximum_Value

  B. Maximum_Chars

  C. Minimum_Size

  D. Starts_With

  E. Ends_With

  Correct Answer: AC

• Question 10:

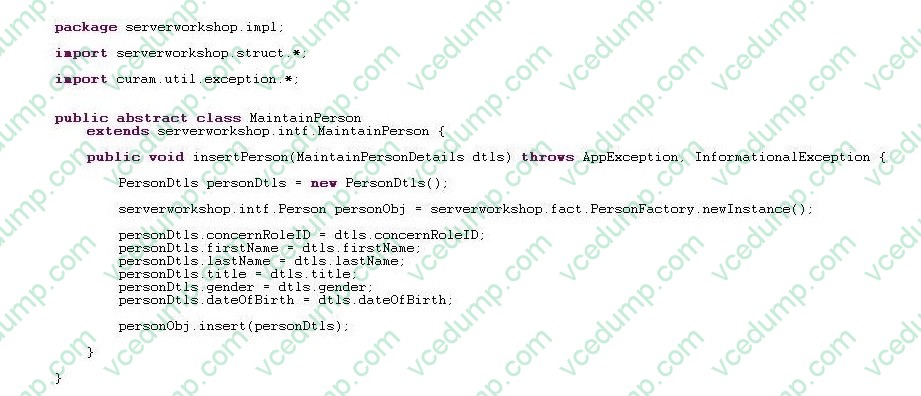

  Examine the following piece of code:



  Which of the following statements about this piece of code is true?

  A. It does not compile because an import statement is missing

  B. It does not compile because the PersonDtls object must be obtained from a factory class

  C. It does not compile because the MaintainPerson should not extend the class serverworkshop.intf.MaintainPerson

  D. It compiles without errors

  Correct Answer: C
