• Question 61:

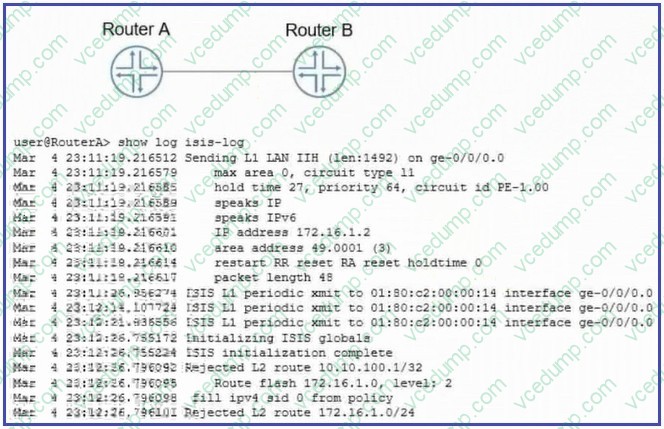

  Click the Exhibit button.



  Why is the route shown in the exhibit hidden?

  A. The router cannot reach the protocol next hop.

  B. An MPLS LSP is unavailable.

  C. The router is being rejected through an import policy.

  D. The route is being rejected through an export policy.

  Correct Answer: C

• Question 62:

  You are configuring IS-IS on the newly provisioned ae88 interface. After you commit the configuration, you notice that your adjacency is not showing up.



  Referring to the exhibit, what is the reason for the adjacency being down?

  A. R1 and R2 are configured for different metrics.

  B. R1 and R2 are in different IS-IS levels.

  C. R1 and R2 have different interface parameters.

  D. R1 and R2 are configured for different areas.

  Correct Answer: C

• Question 63:

  Which two statements about Layer 2 firewall filters are correct? (Choose two.)

  A. You can apply only one firewall filter term per filter.

  B. You can apply only one input filter per VLAN.

  C. You can apply multiple firewall filter terms per filter.

  D. You can apply multiple input filters per VLAN.

  Correct Answer: BC

• Question 64:

  Exhibit.



  Referring to the exhibit, Router-1 and Router-2 are failing to form an IS-IS adjacency. What should you do to solve the problem?

  A. Remove the overloaded statement from Router-1.

  B. Change the IP subnet masks to match on the ge-0/0/2 interfaces of both routers.

  C. Remove the ISO address from ge-0/0/2 on Router-1.

  D. Change the ISO areas on the Io0 interfaces to match on both routers.

  Correct Answer: B

• Question 65:

  You are asked to configure filter-based forwarding (FBF) to forward traffic sourced from a specific subnet to a webserver.

  In this scenario, which mechanism is used to add interface routes to the forwarding routing instance used in FBF?

  A. generated routes

  B. RIB groups

  C. forwarding policy

  D. routing policy

  Correct Answer: B

• Question 66:

  Exhibit.



  You are attempting to set up VRRP with R1 and R2 being participating members. You want R1 to be the master router and R2 to be the backup router with the virtual router they create being at address 172.25.100.1. The virtual router is not pinging from either User A or User B.

  Referring to the exhibit, what must be done to correct the problem?

  A. The VRRP group value on R1 and R2 must match.

  B. A VRRP authentication type value is needed on R1 and R2.

  C. A VRRP policy is needed on R1 and R2.

  D. The VRRP priority value on R1 and R2 must match

  Correct Answer: A

  https://www.juniper.net/documentation/en_US/junos/topics/reference/configuration- statement/priority-edit-interfaces-vrrp.html

• Question 67:

  What are three types of port designation specific to Private VLANs? (Choose three.)

  A. Promiscuous ports

  B. Transparent ports

  C. PVLAN trunk ports

  D. Designated ports

  E. Isolated ports

  Correct Answer: ACE

• Question 68:

  Routet-1 and Router-2 must connect through the Internet using a tunneling technology. Hosts that are connected to Router-1 and Router-2 will be sending traffic up to 1500 bytes. The maximum segment size that is supported across the path is 1520 bytes.

  Which tunneling technology will allow this communication to take place?

  A. IP-IP tunnel

  B. GRE tunnel

  C. IPsec VPN tunnel mode

  D. IPsec VPN transport mode

  Correct Answer: A

• Question 69:

  Your router is learning the 172.25.11.0/24 prefix from both the BGP and OSPF protocols. A routing policy is configured on your device to advertise the prefix to an established BGP peer but the peer is not receiving the prefix. You want to allow the prefix to be advertised to the BGP peer.

  What should you do on this router to satisfy this requirement?

  A. Enable the automatic removal of peer AS information from the prefix.

  B. Enable the advertisement of inactive BGP routes.

  C. Enable the automatic removal of private AS numbers from the prefix.

  D. Enable the automatic refreshing of BGP routes.

  Correct Answer: B

• Question 70:

  Which two statements about the default load-balancing behavior for the Junos OS are correct? (Choose two.)

  A. By default, the Junos OS performs a per-packet load-balancing operation.

  B. By default, the Junos OS installs multiple equal-cost next hops in the forwarding table for a destination prefix.

  C. By default, the Junos OS selects one of the equal-cost next hops for received destination prefixes.

  D. By default, all Packet Forwarding Engine slots are assigned the same hash value on the Junos device.

  Correct Answer: CD
