NetApp NetApp Certifications NS0-161 Questions & Answers

• Question 41:

  You want to create a new SVM for serving NFS data using the Storage Virtual Machine (SVM) Setup wizard.

  In this scenario, which object is created automatically during the setup process? (Choose the best answer.)

  A. a data volume named after the SVM with the suffix _nfs_vol1

  B. a data aggregate named after the SVM with the suffix _nfs_aggr1

  C. a data LIF named after the SVM with the suffix _nfs_lif

  D. an export policy named after the SVM with the suffix _nfs_exp1

  Correct Answer: C

  Reference: https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.exp-nfs-vaai%2FGUID363E3FA6-DE29-4578-9F45-4D23A6E1E53F.html

• Question 42:

  You are asked to deploy a two-node ONTAP Select system. The physical hardware is located in two different locations. You must ensure high availability and automated switchover.

  Which two steps would you take to satisfy this requirement? (Choose two.)

  A. Ensure that the ONTAP Select Deploy VM resides at a third location other than the two datacenters.

  B. Use ONTAP Select Deploy to install the nodes on the physical hardware.

  C. Ensure that the SyncMirror license is installed on the cluster.

  D. Use Active IQ Unified Manager to provide a quorum for the two nodes.

  Correct Answer: BD

• Question 43:

  Which two protocols does ALUA support on an ONTAP cluster? (Choose two.)

  A. iSCSI

  B. NVMe

  C. FCP

  D. NFS

  Correct Answer: AD

  Reference: https://library.netapp.com/ecmdocs/ECMP1204463/html/GUID-D7570D36-76FF-4923-8ECC525AF435C2D6.html

• Question 44:

  Click the Exhibit button.

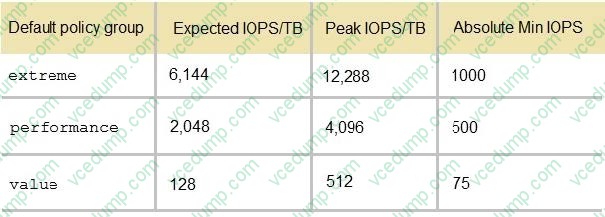

  The exhibit displays the values for the default adaptive QoS policy. An administrator assigns the Value policy to a 1 TB volume. Over time, the volume expands to 3 TB.

  What is the peak IOPS for the volume, both before and after the expansion? (Choose the best answer.)

  A. 512 IOPS and 512 IOPS

  B. 512 IOPS and 1536 IOPS

  C. 512 IOPS and 12288 IOPS

  D. 75 IOPS and 512 IOPS

  Correct Answer: C

  Reference: http://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.pow-perf-mon%2FGUIDB144F39A-2E14-4048-91CA-D8080C50F70D.html

• Question 45:

  Click the Exhibit button.



  A customer has an issue with performance on an NVMe solution. The SVM is using all four ports shown in the exhibit.

  In this scenario, how would the customer improve the host performance? (Choose the best answer.)

  A. Change the SFP+ in the controllers from 32 Gbps to 64 Gbps.

  B. Move all of the network interfaces to port 2a.

  C. Move some of the network interfaces from 2a to 2c and 2d.

  D. Remove support of the FC protocol and only use NVMe.

  Correct Answer: A

• Question 46:

  Node A has taken over Node B. You solved the issue that caused the takeover and are now ready to resume normal operation.

  After initiating the storage failover giveback command, how are the aggregates given back? (Choose the best answer.)

  A. CFO aggregates are automatically given back, SFO aggregates must be manually given back.

  B. CFO aggregates and SFO aggregates are automatically given back.

  C. The root aggregate is automatically given back, CFO and SFO aggregates must be manually given back.

  D. SFO aggregates are automatically given back, CFO aggregates must be manually given back.

  Correct Answer: B

  Reference: https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-cmpr-960% 2Fstorage__failover__giveback.html

• Question 47:

  You are asked to delete an SVM that was used for CIFS.

  Which two steps must be completed prior to completing this task? (Choose two.)

  A. Delete all LIFs from all SVMs.

  B. Stop the SVM.

  C. Delete all data volumes in the SVM.

  D. Delete the CIFS license.

  Correct Answer: BC

  Reference: https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.onc-sm-help-900% 2FGUID-1286A6CD-2981-444F-97F6-65D65A00D758.html

• Question 48:

  Click the Exhibit button.



  You have an ONTAP 9.7 cluster. You increased the size of the volume to 3 TB, but the IOPS did not increase as expected.

  What are the expected IOPS for the volume after the change? (Choose the best answer)

  A. 2048

  B. 6144

  C. 1024

  D. 4096

  Correct Answer: C

  Reference: https://kb.netapp.com/Advice_and_Troubleshooting/Data_Storage_Software/ONTAP_OS/ What_is_Adaptive_QoS_and_how_does_it_work%3F

• Question 49:

  Click the Exhibit button.



  You are configuring a NetApp cluster to communicate on VLAN 1. However, the new LIF is unable to communicate with any host in the VLAN. The network administrator has configured the switch port as an access (untagged) port on VLAN 1 and says that the VLAN is non-routed.

  Referring to the exhibit, what would you do to troubleshoot this problem? (Choose the best answer.)

  A. Verify that there is not IP address conflict on the network.

  B. Reconfigure the LIF to be on port e0c.

  C. Add a default gateway.

  D. Verify that the network cabling is working properly.

  Correct Answer: B

• Question 50:

  You want to improve the write performance of NL-SAS volumes serving data on your ONTAP. You also want to keep the performance consistent during a possible controller failover.

  In this scenario, which feature do you use? (Choose the best answer.)

  A. Flash Cache

  B. Flash Pool

  C. FlexCache

  D. FabricPool

  Correct Answer: A
