OMG OMG Certifications OMG-OCUP2-INT200 Questions & Answers

• Question 1:

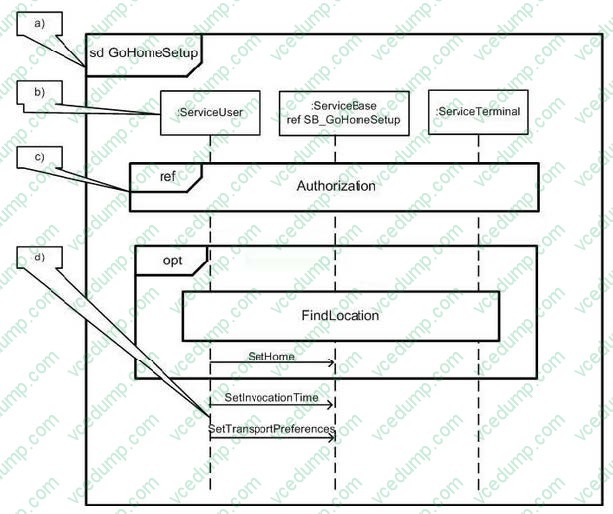

  In the exhibit, what represents an interaction occurrence?



  A. A

  B. B

  C. C

  D. D

  Correct Answer: C

• Question 2:

  What is NOT a valid Variable Action?

  A. Remove Variable Value Action

  B. Add Variable Value Action

  C. Clear Variable Action

  D. Read Variable Action

  E. Set Variable Action

  Correct Answer: E

• Question 3:

  To what does an internal structure of a class refer?

  A. the decomposition of that class in terms of interconnected parts

  B. the set of structural features of that class

  C. the inheritance structure of that class

  D. the set of nested classifiers of that class

  E. class and associations owned by that class

  Correct Answer: A

• Question 4:

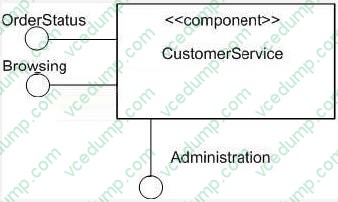

  Refer to the exhibit. What is the significance of the fact that the Administration interface symbol extends downward rather than leftward?



  A. The interface is the primary provided interface for the component.

  B. The interface is not publicly visible on the component.

  C. There is no significance.

  D. The interface is the primary interface for the component.

  E. The interface cannot be provided via a port.

  F. The interface does not require a delegation connector.

  Correct Answer: C

• Question 5:

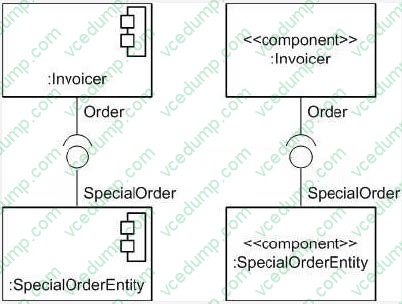

  What is the semantic difference between the two figures in the exhibit?



  A. One is white-box view, while the other is a black-box view.

  B. One is a deployment diagram, while the other is a class diagram.

  C. There is no semantic difference.

  D. One is a UML 2.0 diagram, while other is a UML 1.5 diagram.

  Correct Answer: C

• Question 6:

  When an object invokes a ReadSelfAction, what will it retrieve?

  A. attribute values for the invoking object

  B. invoking object

  C. attribute values and links for the invoking object

  D. class name of the invoking object

  E. name of the invoking activity

  Correct Answer: D

• Question 7:

  A component may legally participate in which relationship(s)?

  A. associations and generalizations

  B. dependencies, associations, and generalizations

  C. dependencies and generalizations

  D. dependencies

  Correct Answer: B

• Question 8:

  Why are profiles NOT a first class extension mechanism?

  A. They do not allow for modifying existing metamodels.

  B. They do not permit customizing for domains, platforms, and methods.

  C. They permit removing constraints that apply to existing metamodels.

  D. They do not allow for modifying existing stereotypes.

  Correct Answer: A

• Question 9:

  What must be true for a connector to be well formed if a delegation connector delegates to more than one target port?

  A. The interfaces of the target ports must have no features in common.

  B. The interface of at least one of the target ports must be signature compatible with the interface that is the type of the source port.

  C. The interface of each of the target ports must be signature compatible with the interface that is the type of the source port.

  D. The union of the interfaces of the target ports must be signature compatible with the interface that is the type of the source port.

  Correct Answer: D

• Question 10:

  How can the internals of a component be presented?

  A. using a complex component connector

  B. in a compartment of the component box or via boxes nested within the component box

  C. in a compartment of the component box or component requires port

  D. component provides port or a component requires port

  Correct Answer: B
