Citrix Citrix Certifications 1Y0-402 Questions & Answers

• Question 111:

  Scenario: A Citrix Architect is designing a XenDesktop environment. The Engineer group uses graphical applications which require the use of AMD hardware shared virtualized GPU. Which two hypervisors can the architect select? (Choose two.)

  A. XenServer 6.5

  B. VMware vSphere 5.5

  C. XenServer 7.0

  D. VMware vSphere 6.0

  E. Microsoft Hyper-V Server 2012 R2

  Correct Answer: AC

• Question 112:

  Scenario: A Citrix Architect is designing hardware requirements for a small production XenApp and XenDesktop environment.

  Requirements: Access to the environment hosted in a single datacenter Ability to perform maintenance on the environment without requiring an outage

  Which hardware requirement does the architect need to include for hypervisor hosts in order to meet the customer's needs?

  A. Multiple individual hypervisor hosts in the same datacenter

  B. Separate hypervisor cluster/pool in an alternate datacenter

  C. Separate hypervisor clusters/pools in the same datacenter

  D. N+1 hypervisor hosts in a single cluster/pool

  Correct Answer: C

• Question 113:

  Scenario: A Citrix Architect is reviewing a XenApp and XenDesktop design for an environment with multiple Active Directory forests.

  Click the Exhibit button to view the design details.



  Which risk should the architect highlight to the customer, based on the details listed in the Exhibit?

  A. The SupportMultipleForest registry key is NOT supported.

  B. The Active Directory trust method is NOT supported.

  C. The Active Directory functional level is NOT supported.

  D. The DNS lookup strategy is NOT supported.

  Correct Answer: C

• Question 114:

  Scenario: A Citrix Architect needs to implement XenApp and XenDesktop. Based on the assessment and early stages of the design, the architect has identified the requirements as shown in the Exhibit.

  Click the Exhibit button to view the requirements.



  Which tier of storage should the architect consider implementing, based on the requirements in the Exhibit?

  A. DAS

  B. Local

  C. SAN

  D. NAS

  Correct Answer: A

• Question 115:

  Scenario: A Citrix Architect needs to design a new XenDesktop environment for a client who does NOT currently have a Citrix environment. The project scope has NOT yet been determined, and the architect is about to start the Assess phase of the project.

  In which order should the architect complete the four tasks of a typical assessment when following the Citrix methodology?

  A. Define the organization, Define the user groups, Define the applications, Define the project team.

  B. Define the user groups, Define the applications, Define the organization, Define the project team.

  C. Define the project team, Define the organization, Define the user groups, Define the applications.

  D. Define the organization, Define the project team, Define the user groups, Define the applications.

  Correct Answer: D

• Question 116:

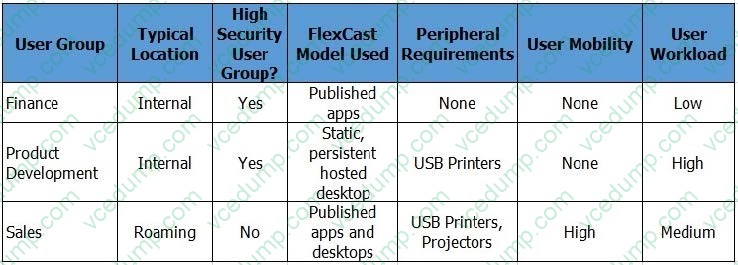

  Scenario: A Citrix Architect is designing a new XenApp and XenDesktop environment and needs to determine which endpoints to include. Based on discussions with various departments, the user requirements listed in the Exhibit were collected.

  Click the Exhibit button to view the requirements.



  In addition to the user requirements, the architect has identified the following organizational requirements:

  Minimize total cost of ownership (TCO) Minimize maintenance costs

  Which endpoint type should the architect use for the Product Development group, based on the requirements?

  A. BYOD laptop/notebook

  B. Corporate-owned high-performance workstation

  C. Corporate-owned standard desktop

  D. Corporate-owned laptop/notebook

  E. Corporate-owned thin client

  Correct Answer: E

• Question 117:

  Scenario: A Citrix Architect needs to manage the disaster recovery process for a XenApp and XenDesktop environment. The environment currently consists of an active datacenter which is typically accessed by users and a disaster recovery (DR) datacenter which would be used in the event that a disaster impacts the primary datacenter. The organization has made it a priority to minimize the loss of data when failing over between datacenters and has begun planning for an event in which the environment must fail over from the primary datacenter to the DR datacenter.

  What is the appropriate sequence of steps that the architect should follow after getting management approval to complete the process in case of such an event?

  A. Block access to primary datacenter, complete replication, terminate/drain existing sessions, reverse direction of replication, enable access in DR datacenter

  B. Block access to primary datacenter, terminate/drain existing sessions, complete replication, reverse direction of replication, enable access in DR datacenter

  C. Terminate/drain existing sessions, complete replication, block access to primary datacenter, enable access in DR datacenter, reverse direction of replication

  D. Complete replication, terminate/drain existing sessions, block access to primary datacenter, reverse direction of replication, enable access in DR datacenter

  E. Complete replication; block access to primary datacenter, terminate/drain existing sessions, enable access in DR datacenter, reverse direction of replication

  F. Terminate/drain existing sessions; block access to primary datacenter, complete replication, reverse direction of replication, enable access in DR datacenter

  Correct Answer: D

• Question 118:

  Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment.

  The architect has identified the Resource Layer requirements shown in the Exhibit.

  Click the Exhibit button to view the requirements.



  Additionally, management at the organization has identified the following general Resource Layer requirements:

  The profile solution should minimize logon and logoff times as much as possible. The time required to configure and maintain the solution should be minimized. User groups do NOT need to use the same profile type.

  Which profile type should the architect use for the Customer Service group?

  A. Microsoft roaming

  B. Mandatory

  C. Local

  D. Citrix Profile Management

  Correct Answer: C

• Question 119:

  Scenario: A Citrix Architect is designing an environment for a large company. The company has identified

  the following user groups and requirements.

  Product Managers - Typically, they work from inside the company network but are able to work from home.

  They need to use a variety of standard productivity and web-based SaaS applications.

  Field Sales Engineers - They frequently work with mobile devices and tend to access the environment

  externally. They need access to sales tools and the front-end of the customer database.

  Web Developers - Internal and remote workers who use specialized hardware with a graphics card to

  handle resource-intensive applications.

  Which FlexCast model should the architect assign to Product Managers?

  A. Hosted VDI

  B. Remote PC

  C. VM Hosted Applications

  D. Published Apps

  E. Published Desktops

  Correct Answer: A

• Question 120:

  Scenario: A Citrix Architect is designing a XenApp and XenDesktop environment and needs to design machine catalogs and Delivery Groups. Users should only be able to access their assigned resources.

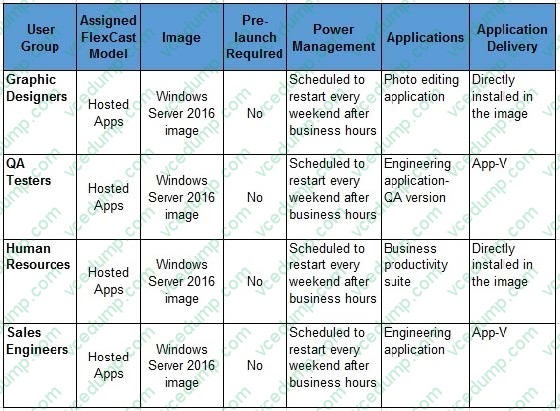

  Click on the Exhibit button to view the design requirements.



  What is the appropriate design using the minimum number of machine catalogs and Delivery Groups, based on the requirements in the Exhibit?

  A. 1 machine catalog, 2 Delivery Groups, and no tagging

  B. 2 machine catalogs, 3 Delivery Groups, and tagging for the machine hosting the Engineering application - QA version

  C. 3 machine catalogs, 4 Delivery Groups, and no tagging

  D. 1 machine catalog, 1 Delivery Group, and tagging for the machine hosting the Engineering application QA version

  Correct Answer: A
