Cisco CCNP Collaboration 350-801 Questions & Answers

• Question 331:

  Due to provider requirements, outgoing calls from the Enterprise to the PSTN must start with channel 1. Which ISDN command changes the channel selection an IOS to meet this requirement?

  A. isdn bchan-number-order decending

  B. isdn bchan-number-order ascending

  C. isdn protocol-emulate network

  D. isdn incoming-voice voice

  Correct Answer: B

• Question 332:

  When a new SIP phone Is registered to Cisco Unified Communications Manager, it keeps failing and showing an "unprovisioned" error message in the phone display. Which problem is a possible cause of this issue?

  A. Auto-registration is disabled on the Cisco Unified Communications Manager nodes and the phone device does not have a DN configured.

  B. The DN assigned to the phone is already in use by another SIP phone.

  C. The phone cannot download and install the latest firmware.

  D. The DHCP settings are set incorrectly and the phone does not have an alternate TFTP defined.

  E. The DN configuration for this phone is shared with an SCCP phone. which is not supported.

  Correct Answer: A

  https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cuipph/8941_8945/10_0/english/admin_guide/P415_BK_AA30369C_00_adminguide-8941-8945-10_0/P415_BK_AA30369C_00_adminguide-8941-894510_0_chapter_01100.html#CUIP_RF_PB38DAA9_00

• Question 333:

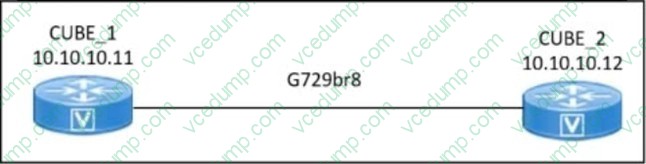

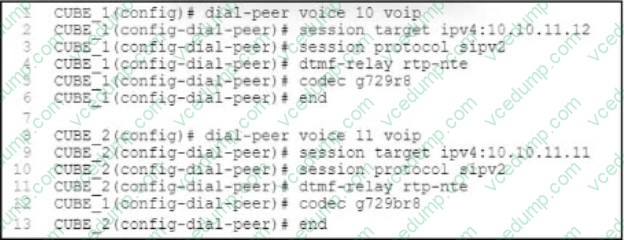

  Refer to the exhibit.



  An engineer configures a VoIP dial peer on a Cisco gateway. Which codec is used?

  A. G.711ulaw

  B. No codec is used (missing codec command).

  C. G.711alaw

  D. G.729r8

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/dialpeer/configuration/15-mt/vd-15-mt-book/vd-dp-cfg-examp.pdf

• Question 334:

  A user dials 9011841234567 to reach Vietnam. Which steps send the call to the PSTN provider as 011841234567?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 335:

  When a phone is registered over Mobile and Remote Access, where does it register?

  A. Cisco Unified Presence Server

  B. Expressway-E

  C. Cisco Unified Communications Manager

  D. Expressway-C

  Correct Answer: C

  Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_0_1/systemConfig/cucm_b_system-configuration-guide-1201/cucm_b_system-configuration-guide-1201_chapter_01011010.html

• Question 336:

  Which packet delay is the maximum supported between Cisco Unified Communications Manager nodes for clustering over WAN deployments?

  A. 150 ms round tip

  B. 510 ms round trip

  C. 40 ms round trip

  D. 80 ms round trip

  Correct Answer: D

  The maximum one-way delay between any two Unified CM servers should not exceed 40 msec, or 80 msec round-trip time https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/8x/uc8x/models.html#wp1044021

• Question 337:

  Which configuration on Cisco Unified Communications Manager is required for SIP MWI to work?

  A. The line partition must be inside the inbound CSS assigned to the CUC SIP trunk.

  B. The line partition must be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.

  C. Set the "Enable message waiting indicator" on the part group.

  D. Assign a MWI extension on the mailbox.

  Correct Answer: A

  The line partition must be inside the inbound CSS assigned to the CUC SIP trunk. This ensures that the SIP MWI messages are sent to the correct destination.

  The other options are incorrect because:

  Assigning an MWI extension on the mailbox is not required for SIP MWI to work. The line partition does not need to be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.

  Setting the "Enable message waiting indicator" on the port group is not required for SIP MWI to work.

• Question 338:

  After an engineer runs the utils ntp status command on the Cisco Unified Communications Manager publisher, the stratum value is 16. Which issue can the Cisco Unified CM cluster experience?

  A. Unified CM sends an NTPV4 packet.

  B. Database replication is not synchronized on the Unified CM nodes.

  C. The cluster loses access to port 124 at the firewall.

  D. The date/time group on all phones defaults to the time zone of the engineer.

  Correct Answer: B

  16 is a invalid stratum value that means "this server is not considered a time provider". The stratum can be invalid for various reasons, the most common of which is that the "time provider not synchronized", the "configured source does not exist", or the "ntp server not running". CUCM can communicate with the NTP server on Port 123

• Question 339:

  As a voice engineer, which two recommendations do you to make to your company to optimize Cisco Unified Communications Manager configuration to reduce the number of toll fraud incidents? (Choose two.)

  A. Classify all route patterns as on-net and prohibit on-net to on-net call transfers in Cisco Unified CM service parameters.

  B. Classify all route patterns as off-net and prohibit off-net to off-net call transfers in Cisco Unified CM service parameters.

  C. Classify all route patterns as on-net or off-net and prohibit off-net to off-net call transfers in Cisco Unified CM service parameters.

  D. Inbound CSS on any gateway typically should have access to internal destinations and PSTN destinations.

  E. Inbound CSS on any gateway typically should have access to internal destinations only and not PSTN destinations.

  Correct Answer: CE

• Question 340:

  A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified Communications Manager SIP trunk. Which media resource can be leveraged to interwork this mismatch?

  A. Conference Bridge

  B. Trusted Relay Point

  C. Media Termination Point

  D. Annunciator

  Correct Answer: C
