Avaya ACIS 3605 Questions & Answers

• Question 41:

  Which steps are initial steps required to configure the Ethernet Routing Switch (ERS) 8600 in a clustered basic core configuration? (Choose three.)

  A. create VLANs

  B. create the IST

  C. enables OSPF

  D. configure SMLT

  Correct Answer: ABD

• Question 42:

  An Ethernet Routing Switch (ERS) 8600 for Virtual Router Redundancy Protocol (VRRP) is being configured. Which CU command would cause this switch to be the VRRP master?

  A. ERS8600:5# config vlan 100 ip vrrp 100 priority 250

  B. ERS8600:5ff config vlan l00 ip vrrp 100 priority 1

  C. ERS860Q:5# config vlan 100 ip vrrp 100 master

  D. ERS8600:5# config vlan 100 ip vrrp 100 priority master

  Correct Answer: A

• Question 43:

  An Ethernet routing switch (ERS) 4550T-PWR has been deployed with a single AC power supply and is currently supporting 20 VoIP telephones with power over Ethernet (PoE). each with a power draw of 8 Watts when offhook. The network engineer has requested the addition of 5 Wireless Access points (WAPs) to the ERS 4550T-PWR.Each WAP supports PoE and requires 12 Watts of power.

  What is the outcome of the addition of the WAPs to the ERS 455QT-PWR?

  A. The 4550T-PWR will have sufficient power to support the 20 VoIP telephones and 5 WAP devices,

  B. The addition of a second AC power supply will be required to provide sufficient power to the ERS -4550T-PWR to Support all of-the PoE devices.

  C. The addition of a Redundant Power Supply 15 will be required to provide sufficient power to ensure the VoIP phones and WAP function property.

  D. the power requirement of the WAP exceeds the individual port maximum power rating of the ERS 4550T-PWR and will therefore require an external power source.

  Correct Answer: A

• Question 44:



  Which two pairs of commands will configure spanning tree on the edge switch? (Choose two)

  A. 5520-24T (config) # interface fastethernet 25-265520-24T (corrfig-if) # spanning-tree learning fast

  B. 5520-24T (config) # interface fastethernet 25-265520-24T (config-if) # spanning tree learning disable

  C. 5520-24T (config) # interface fastethernet 1-205520-24T (config-if) # spanning tree learning disable

  D. 5520-24T (config) # interface fastethernet 1-205520-24T (config-if) # spanning-tree learning fast

  Correct Answer: AC

• Question 45:

  A network has some Ethernet Routing Switch (ERS) 5500 switches licensed at the advanced level for Release 6 2 A technician implementing Protocol independent Multicast - Sparse Mode (PIM-SM) Which licensing requirement applies?

  A. the PIM-SM is already covered by the existing advanced feature license

  B. the PIM-SM con only be licensed on ERS 5510 models

  C. the PIM-SM is included m the base license with release 6.2

  D. A Premier license is needed

  Correct Answer: C

• Question 46:

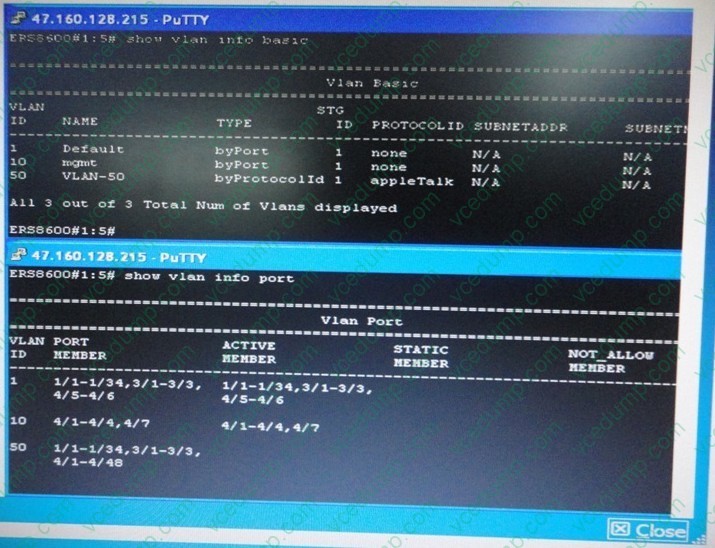

  Click on the exhibit button After checking the VLAN configuration using the show vlan info basic and the show vlan info port commands, there are no ACTIVE MEMBER ports for VLM4-50. What is causing this problem?



  A. The ports have not been configured as active for this VLAN

  B. AppleTalk Protocol VLANs do not have ACTIVE MEMBERS

  C. The default setting for this type of VLAN is potential and no AppleTalk traffic has entered any of these ports

  D. There are no devices connected to these ports.

  Correct Answer: C

• Question 47:

  Consider the fallowing port conditions on an Ethernet Routing Switch (ERS) 8648GTRS 10/100/1000 Ethernet I/O module left LED -green Right LED - flashing

  green.

  What is the status of the port?

  A. The link speed is 100 Mbps. and the port is disabled.

  B. The link speed is 1000 Mbps, and the port is disabled

  C. The link speed is 100 Mbps. and the port is passing traffic.

  D. The link speed is 1000 Mbps. and the port is passing traffic.

  Correct Answer: C

• Question 48:

  Ethernet Routing Switch (ERS) 5500 supports a resilient stacking architecture using FAST Stack technology with this stacking capability, what is the total stacking bandwidth for a full stack of eight switches?

  A. 400 Gbps

  B. 640 Gbps

  C. 720 Gbps

  D. 1.15 Tbps

  Correct Answer: B

• Question 49:

  With release 4.0 or higher software on the Ethernet routing switch (ERS) 8300, an advanced routing license is required to enable certain features. Which two statements ant true about the Advanced Routing License process and supported features for the ERS 8300? (Choose two.)

  A. the Advanced Routing License supports QoS, SMLT, VRRP and OSPF

  B. the Advanced Routing License supports SMLT, VRRP, OSPF, PIM-SM. and SLPP

  C. To protect against security breaches, the ERS 8300 allows only a primary path for the license file

  D. To protect against system flash failure, the ERS 8300 allows a primary, secondary, and tertiary path for the license file.

  Correct Answer: BD

• Question 50:

  During a power-on or cold-start sequence, at which stage can he flags to change the operational environment of the switch be set?

  A. boot monitor prompt

  B. image search

  C. PC system test

  D. boot configuration prompt

  Correct Answer: A
