Avaya ACIS 3605 Questions & Answers

• Question 61:

  The exhibit indicates the two show commands from an edge Ethernet Routing Switch (ERS) 5520-24T- PWR an untagged frame arrives on port 10.which is configured as an access port To which VLAN will the packet be forwarded?



  A. All untagged packets will be placed in the default VLAN (VLAN 1).

  B. All untagged packets will be discarded.

  C. All untagged packets will be placed in VLAN 311

  D. All untagged packets will be placed in VLAN 31?

  Correct Answer: B

• Question 62:

  After experiencing issues with XFPs, the show sys pluggable-optical-modules info CLI command is used to find that the switch does not recognize the XFPs. Which other method can be used to view the XFP compatibility?

  A. Check for port alarms.

  B. Show DWDM-XFP {detail}.

  C. Check the config sys set pluggable-optical-module info.

  D. Select Edit, Port, General, DDI/SFP from the Enterprise Device Manager to see the XFP port specifics_

  Correct Answer: D

• Question 63:

  A technician is configuring password levels on the Ethernet Routing Switch (ERS) 8600, and wants the manager to be able to view and edit device settings, but not to be able to change security and password settings. Which Login Level should be set for the manager?

  A. Layer 2 Read-Write Accesses

  B. Layer 3 Read-Write Access

  C. Read-Write-All Access

  D. Read-Write Access

  Correct Answer: D

• Question 64:

  In a multicast campus, when should the PIM interface in passive mode be configured?

  A. When the ERS 8600 is used as an edge switch and is aggregating end users

  B. When PIM control traffic must be passed

  C. When there are no unicast routing paths

  D. When more than one multicast routing protocol is in use

  Correct Answer: A

• Question 65:

  A split Multi-Link Trunking (SMLT) for switch clustering is being configured. Which statement is a configuration requirement for the SMLT?

  A. CP-Limit is configured on edge switch stacks.

  B. Neighboring edge switch stacks should be connected to each other via a DMLT connection to add resilient paths in the event of an SMLT failure.

  C. Alternate the primary path of the SMLT connection to load balance the switch core.

  D. VLANS that are defined on the SMLT are so defined on the MLT that defines the core Inter Switch Trunks (IST)

  Correct Answer: D

• Question 66:

  After issuing a show mit ist stats (CLI) or show ist stat (ACLI) command, it is determined that running type is normal MLT and not Inter Switch Trunks (IST). Which are two causes of the 1ST not running properly? (Choose two.)

  A. The 1ST is not enabled on both switches.

  B. The MLT ID does not match on both switches.

  C. The peer IP address is not the address of the peer switch 1ST VLAN

  D. The peer IP addresses have to be 192.168.1.1/30 and 192.168.1.2/30.

  Correct Answer: AC

• Question 67:

  A technician wants to control the routes being added to the routing table from the BGP routing table. Which statement describes how to do this?

  A. BGP filters are applied to all incoming route information.

  B. BGP filters are applied only to external route information.

  C. Metrics determine which routes are inserted into the routing table,

  D. BGP adds all new priority routes to the routing table.

  Correct Answer: C

• Question 68:

  In the interaction between EAPO17802.1 and the Enterprise Policy Manager (EPM), what is the role EPM in the User-Based Policy (UBP) process?

  A. It passes the user access request to the RADIUS server

  B. It authenticates the user request.

  C. It opens a port.

  D. it applies the required treatment to the access port.

  Correct Answer: A

• Question 69:

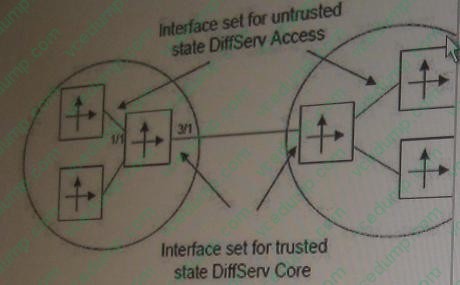

  Which commands will configure the labeled Ethernet ports appropriately?



  A. Config Ethernet 3/1 enable-diffserv trueconfig Ethernet 1/1 access-diffserv true

  B. Config Ethernet 3/1 enable-diffserv trueconfig Ethernet 1/1 access-diffserv false

  C. Config Ethernet 1/1, 3/1 enable-diffserv trueconfig Ethernet 1/1 access-diffserv true

  D. Config Ethernet 3/1 enable-diffserv trueconfig Ethernet 3/1 access- diffserv true

  Correct Answer: C

• Question 70:

  Auto-negotiation should be enabled on all ports except under which condition?

  A. When there is a mix of 10 Mops and 1 Gbps end servers

  B. When there are fiber ports in some end workstations

  C. When only the core Pitches support auto-negotiation

  D. When there is a mix of R and RS modules in the stack

  Correct Answer: C
