Symmetrix Installation and Troubleshooting Specialist

Exam Details

  • Exam Code
    :E20-616
  • Exam Name
    :Symmetrix Installation and Troubleshooting Specialist
  • Certification
    :Legato Cert
  • Vendor
    :EMC
  • Total Questions
    :113 Q&As
  • Last Updated
    :Mar 11, 2025

EMC Legato Cert E20-616 Questions & Answers

  • Question 1:

    Refer to the exhibit.

    A customer would like to have dynamic SRDF target volumes which cannot be swapped. From the illustration shown, what would you select?

    A. DR2

    B. DRX

    C. R2

    D. DR1

  • Question 2:

    Refer to the exhibit.

    A customer would like to have dynamic SRDF source volumes which cannot be swapped. From the illustration shown, what would you select?

    A. DR2

    B. DRX

    C. R2

    D. DR1

  • Question 3:

    Refer to the exhibit.

    When would you use the 'EAN' bit setting in SymmWin?

    A. If the SAN speed is unknown

    B. To enable SAN topology

    C. To Enable iSCSI negotiation

    D. If IP network speed will be negotiated

  • Question 4:

    Refer to the exhibit.

    What does 'V' represent under the DAE Map Window of SymmWin?

    A. 25 disk drive DAE

    B. Surrogate

    C. 15 disk drive DAE

    D. Volume Set Addressing

  • Question 5:

    Refer to the Exhibit.

    What is the purpose of 'A' as illustrated in the configuration tool bar selections?

    A. Saves IMPL file to disk under the same name and folder.

    B. Saves IMPL bin under a different name and folder.

    C. Saves changes made in current window, which is required before closing.

    D. Tests configuration changes made in this window.

  • Question 6:

    Refer to the exhibit.

    What is the purpose of the "A" icon?

    A. Door LED indicator

    B. SymmWin Wizard

    C. Log Browser

    D. Configuration performance Check

  • Question 7:

    Refer to the exhibit.

    For what is the ELM tool used?

    A. Manage Symmetrix Licenses

    B. Environmental LCC Management

    C. ELM scheduler task

    D. Create Environmental scripts

  • Question 8:

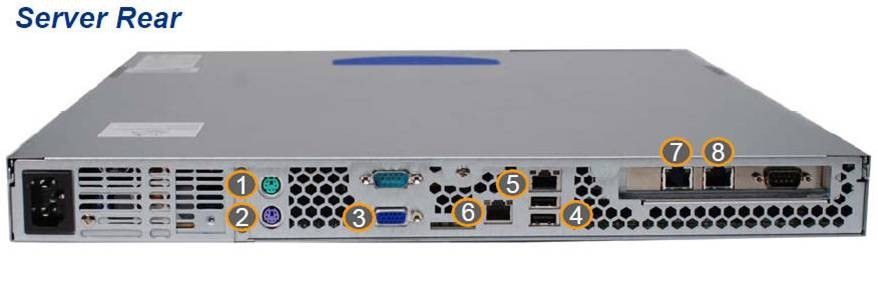

    Refer to the Exhibit.

    Which cable should be connected to the VMAX Service processor illustrated as '5'?

    A. Ethernet: CS-Spare

    B. Ethernet: Highest Engine number

    C. Ethernet: Customer Network

    D. Ethernet: Lowest Engine number

  • Question 9:

    Refer to the Exhibit.

    While configuring a Multi-Engine VMAX 20K, the CE is connecting Engine numbers 4 and 5 with cables. What is the type and sequence of connections required to connect the Lowest Engine number?

    A. Purple Cable; connects F to G and H to 3

    B. Green Cable; connects F to G and H to 3

    C. Purple Cable; connects F to G and E to 3

    D. Green Cable; connects F to G and E to 3

  • Question 10:

    Refer to the Exhibit.

    While configuring a Multi-Engine VMAX 20K, the CE is connecting Engine numbers 4 and 5 with cables. What is the type and sequence of connections required to connect the Highest Engine number?

    A. Purple Cable; connects B to C and A to 1

    B. Green Cable; connects B to C and A to 1

    C. Purple Cable; connects B to C and D to 1

    D. Green Cable; connects B to C and D to 1
