HP ASE HP2-Z33 Questions & Answers

• Question 31:

  Which statement is correct about passwords when a network administrator synchronizes User Access Manager (UAM) with an Active Directory server?

  A. Passwords are set but with a different salt value.

  B. Passwords set in the Active Directory must be reset to different values when synchronized with UAM.

  C. Passwords are stored in clear text in UAM.

  D. Passwords are checked against the Active Directory during authentication.

  Correct Answer: D

• Question 32:

  Which customer requirements would cause a WLAN designer to recommend implementing an HP Unified Wired-Wireless enterprise controller? (Select two.)

  A. The customer currently has 500 access points and an HP MSM controller deployed, and they plan to deploy an additional 400 access points.

  B. The customer expects that the number of authenticated users will increase from 1500 to 2500.

  C. The customer wants to manage their wireless network using the HP IMC platform.

  D. The customer requires high availability and seamless failover of non-centralized traffic,

  E. The customer plans to deploy a new wireless network with 500 access points.

  Correct Answer: CD

• Question 33:

  To allow user access for corporate employees, a network administrator sets an SSID named CORPORATE using an HP Unified Wireless solution. The administrator wants these security enhancements: Enable 802.1x authentication in PEAP MS-CHAP V2 mode on this SSID along with AES and WPA2.

  Set the User Access Manager server at 10.0.1.100 to authenticate 802.1x supplicants.

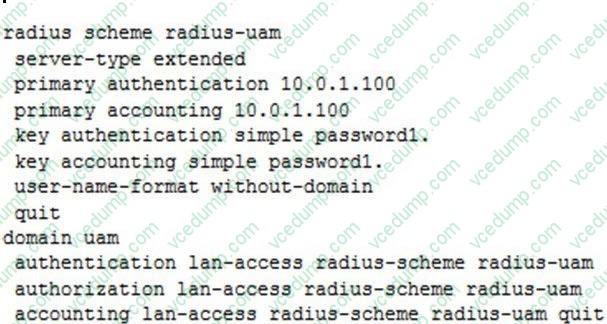

  The network administrator enters these commands:

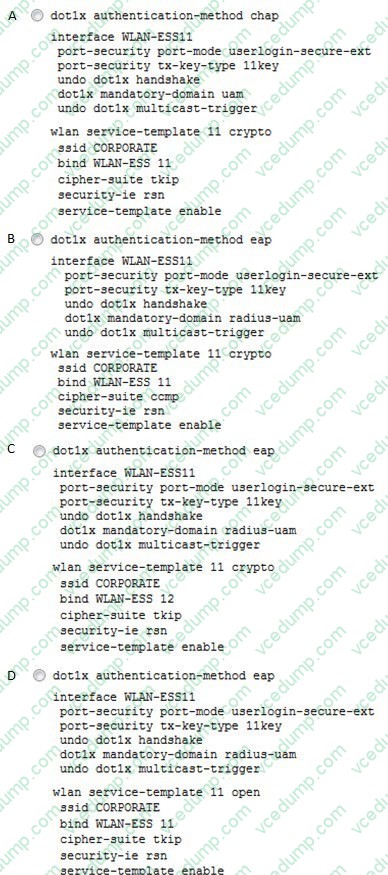

  What is another set of commands that must be entered onto the Unified Wireless Controller in system-view mode to define the SSID CORPORATE with 802.1X Authentication in PEAP MSCHAPV2, using the defined RADIUS server?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: D

• Question 34:

  Refer to the exhibit.



  What is the primary advantage of enabling SSID Hide?

  A. to connect to the access point without configuring clients

  B. to make it easier for the client to connect to the access point

  C. to prevent people from inadvertently connecting to the access point

  D. to improve security

  Correct Answer: D

• Question 35:

  Refer to the exhibit.



  What does the Auth Mode enable?

  A. sets the authentication mechanism(s) that must be used by clients if they wish to roam between access controllers

  B. adds message integrity checks to messages sent between access controllers in the roaming group

  C. ensures that all traffic between access controllers is encrypted

  D. ensures access controllers are authenticated before they join the roaming group

  Correct Answer: B

• Question 36:

  Which factors impact the calculation of the Effective Isotropic Radiated Power (EIRP)?

  A. antenna gain, cable loss, and transmit power

  B. propagation loss, receiver sensitivity, and transmit power

  C. antenna height, interference, and receiver signal strength

  D. antenna gain, propagation loss, and transmit power

  Correct Answer: A

• Question 37:

  Refer to the exhibit.



  The access controller (AC) has configured session-mode load balancing. The maximum number of sessions is configured as 5. The maximum session gap is configured as 4. Client 1 is associated with API Clients 2 to 6 are associated with AP2. Client 7 can only hear AP2. Client 7 attempts to associate to AP2.

  What happens?

  A. AP2 allows client 7 to associate with it, after client 7 sends multiple association attempts to AP2.

  B. AP2 accepts client 7 association requests and forces client 2 to connect to AP1 by sending client 2 a disassociation request

  C. AP2 accepts client 7 association requests, as the load balancing threshold values have not been met.

  D. AP2 rejects all client 7 association requests.

  Correct Answer: D

• Question 38:

  An administrator wants to configure authentication on the HP 830 switch ports that connect to wireless access points. The company policy requires all wireless users to be authenticated using 802.1X authentication. Each port should also allow multiple wireless users to pass 802.1X authentication.

  Which port security mode meets these requirements?

  A. macAddressWithRadius

  B. userLoginSecure

  C. userLoginSecureExt

  D. macAddressElseUserLoginSecureExt

  Correct Answer: D



  An engineer is installing a new access point (AP). The AP has successfully acquired an IP address. The engineer can ping the access controller (AC) from the AP. However the AC is not discovering the AP. What could cause this problem?

  A. The interface between the AC and the IP network is down.

  B. The AC and AP must be in the same subnetwork.

  C. The AP and AC are not in the same VLAN.

  D. The DHCP server has not been set up with option 43.

• Question 39:

  Which command configures the management IP address on a WLAN controller?

  A. interface ip address 192.168.0.100 slot 1

  B. oap management-ip 192.168.0.100 slot 1

  C. management-ip address 192.168.0.100 255.255.255.0

  D. ip address 192.168.0.100 24

  Correct Answer: B

  Reference:

  http://h20565.www2.hp.com/portal/site/hpsc/template.BINARYPORTLET/public/kb/docDisplay / resource.process/?

  javax.portlet.begCacheTok=com.vignette.cachetokenandjavax.portlet.endCacheTok=com.vignette. cachetokenandjavax.portlet.rid_ba847bafb2a2d782fcbb0710b053ce01=docDisplayResURLandjava

  x.portlet.rst_ba847bafb2a2d782fcbb0710b053ce01=wsrp-resourceState%3DdocId %253Demr_na- c03719557-5%257CdocLocale

  %253Den_USandjavax.portlet.tpst=ba847bafb2a2d782fcbb0710b053ce01_ws_BIandac.admitted=1 401095294880.876444892.492883150 (page 4)

  Parameters

  ip-address: Specifies the management IP address of the OAP module. This address must be configured on the OAP module.

  slot slot-number: Specifies the number of the slot where the switching engine resides. The value of this field must be 0.

  Usage guidelines

  To use an NMS to manage the switching engine, you must first configure a management IP address for the engine.

  Examples

  # Set the management IP address to 192.168.0.101 for the switching engine of the HP 830 Series PoE+ Unified Wired-WLAN Switch.

  system-view

  [Sysname] oap management-ip 192.168.0.101 slot 0

• Question 40:

  It is Monday morning, and no one can connect to the wireless network. The network administrator suspects that the access controller's certificate may have expired and is no longer valid. How can the administrator check if this is the problem?

  A. On the access controller, navigate to Authenticate > Certificate Management, and click the CRL tab. Then click Retrieve CRL

  B. On the access controller, navigate to Authenticate > Certificate Management and click the Domain tab. Then click Retrieve CRL

  C. On the access controller, navigate to Authenticate > Certificate Management and click the Entity tab. Then click Request Cert.

  D. On the access controller, navigate to Authenticate > Certificate Management and click the Certificate tab. Then click Request Cert.

  Correct Answer: A
