HP ASE HP2-Z34 Questions & Answers

• Question 11:

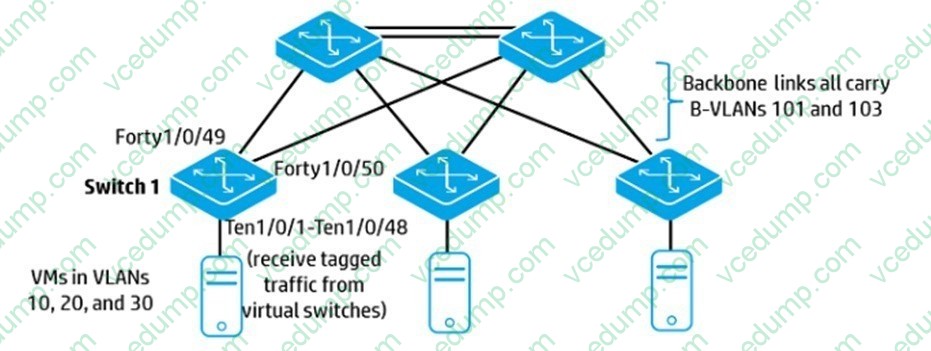

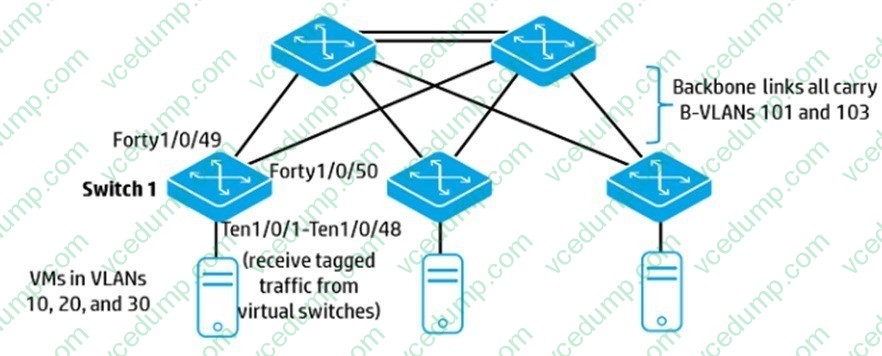

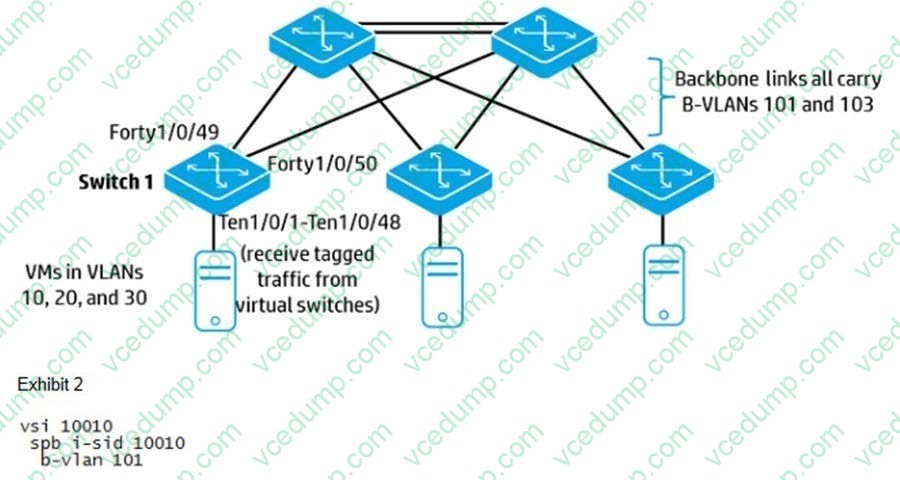

  Refer to the exhibit SPBM is being implemented on the backbone links shown in the exhibit. The servers in VLAN 10 (10.1.10.0/24) should be able to communicate at Layer 2 across the backbone. In the vsi section of the configuration on Switch 1. which logical components are required?



  A. the S-VLAN to which the servers are assigned and the ECT algorithm for distributing their traffic

  B. a unique l-SID for the servers and the B-VLAN that should carry their traffic

  C. the S-VLAN to which the servers are assigned and the B-VLAN that should carry their traffic

  D. a unique l-SID for the servers and the S-VLAN to which the servers are assigned

  Correct Answer: C

• Question 12:

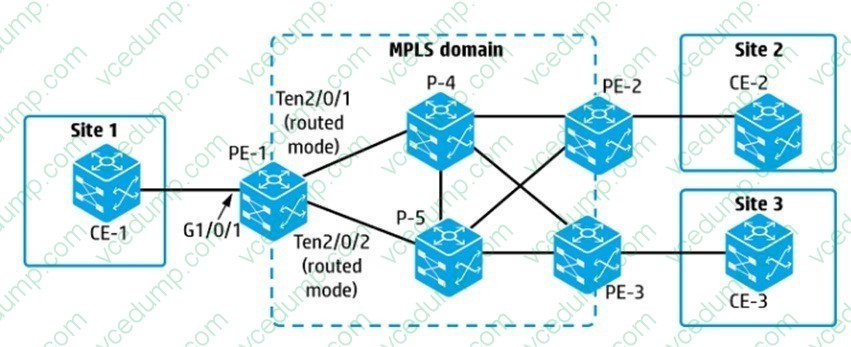

  Refer to the exhibit An administrator is establishing an MPLS domain to allow communication between 10.1.0.0/16.10 2 0 0/16. and 10.3 0.0/16. The solution will use OSPF routing and LDP. On which PE and P devices should these protocols be configured?



  A. All P and PE devices should be configured with MPLS, but only P devices need OSPF and only PE devices need LDP.

  B. All P and PE devices should be configured with MPLS, LDP. and OSPF.

  C. All P and PE devices should be configured with MPLS, but only PE devices need OSPF and LDP.

  D. All P and PE devices should be configured with MPLS and LDP. but only PE devices need OSPF.

  Correct Answer: A

• Question 13:

  Which option is correct about the flash memory of an HP Comware switch with multiple MDCs?

  A. Each MDC has its own subfolder in the flash, but it can also access another MDC's subfolder if administrators specifically reference the appropriate folder ID.

  B. The entire flash directory is shared by every MDC. All MDCs have root access. Administrators may create new subfolders.

  C. Each MDC including the Admin MDC can only access its own subfolder in the flash The Admin MDC can also access the root folder, but not the subfolder for other MDCs.

  D. Except for the Admin MDC each MDC can only see and access its own subfolder in the flash. The Admin MDC has root access to the root folder and all subfolders.

  Correct Answer: B

• Question 14:

  Refer to the exhibit A company added a second data center IRF 1 and IRF 2 connect on direct Ethernet cables. What is the simplest, most flexible and resilient option for the data center connection?



  A. link aggregation between IRF 1 and IRF 2

  B. VPLS solution between IRF 1 and IRF 2

  C. EVI network between IRF 1 and IRF 2

  D. IRF 1 and IRF 2 combined into a single IRF virtual device

  Correct Answer: B

• Question 15:

  What is an appropriate situation for configuring an interface as a silent TRILL access port?

  A. The interface connects to another TRILL switch, which has a higher DRB priority than this switch

  B. The interface connects to a downstream non-TRILL switch, which is connected to another TRILL switch. The administrator does not want the interface to carry encapsulated TRILL traffic.

  C. The interface connects to a downstream non-TRILL switch, which is connected to another TRILL switch The administrator wants the interface to provide a backup path for encapsulated TRILL traffic

  D. The interface connects directly to server NICs. and it is a bridge aggregation on an IRF virtual device.

  Correct Answer: A

• Question 16:

  Which statement is correct about defining a Route Distinguisher (RD) for a VPN instance on an HP Comware switch?

  A. The RD is only required when the router runs Border Gateway Protocol (BGP) and must match the BGP router ID.

  B. The RD is only required when the router runs Border Gateway Protocol (BGP) and must be unique to that VPN instance.

  C. The RD is always required and must match the switch global router ID.

  D. The RD is always required and must be unique to that VPN instance.

  Correct Answer: C

• Question 17:

  What is the relationship between a Forwarding Equivalence Class (FEC) and the MPLS label that a Label Switching Router (LSR) advertises for that FEC?

  A. An LSR assigns the same label to FECs with the same best next hop: labels remain constant across the MPLS domain

  B. The LSR assigns a unique label to each FEC, but labels assigned by different LSRs do not necessarily match.

  C. The LSR assigns a unique label to each FEC. and that label remains constant across the MPLS domain

  D. An LSR assigns the same label to FECs with the same best next hop; labels assigned by different LSRs do not necessarily match

  Correct Answer: D

• Question 18:

  What is the correct use case for implementing priority flow control (PFC) on a switch port?

  A. The port carries data and storage traffic. PFC should be applied to the priority queue that is assigned to storage traffic.

  B. The port carries multimedia voice and video traffic PFC should be applied to the queues with a lower priority than multimedia traffic

  C. The port carries data and storage traffic PFC should be applied to the queues with a lower priority than storage traffic.

  D. The port carries multimedia voice and video traffic PFC should be applied to the priority queue that is assigned to multimedia traffic.

  Correct Answer: C

• Question 19:

  An administrator is implementing MDC and wants to create a redundant solution where each MDC uses two physical HP Comware switches. What is the correct setup process?

  A. Set up the MDCs on both switches. Configure Intelligent Resilient Framework (IRF) between the two switches on each MDC separately.

  B. Combine the two switches in an Intelligent Resilient Framework (IRF) virtual device Set up the MDCs on this device.

  C. Set up the MDCs on both switches. Use the Admin MDC to configure Intelligent Resilient Framework (IRF) on the two switches

  D. Enable MDC on both switches in resiliency mode Configure the MDCs on each device using the same MDC IDs on each Connect the devices.

  Correct Answer: D

• Question 20:

  An HP IRF virtual switch with two members is implementing TRILL. The administrator wants to ensure that the master can fail without causing topology changes or changes in forwarding tables in the TRILL region. Which setting helps support this requirement?

  A. Graceful Restart for TRILL

  B. Bidirectional Forwarding Detection (BFD) Multi-Active Detection (MAD) for the IRF link

  C. calculation of at least two trees

  D. non-stop-forwarding for TRILL

  Correct Answer: B
