HP ASE HP2-Z34 Questions & Answers

• Question 21:

  Refer to the exhibit



  An administrator wants these switches to establish a TRILL region TRILL is enabled globally and nicknames are set. What must the administrator do so that each TRILL switch (RBridge) finds the best path to all other TRILL switches?

  A. Configure IS-IS on VLAN 1 on all the switches.

  B. Enable TRILL with the correct link-type on each switch-to-switch port

  C. Configure DRB priorities on all switch-to-switch links.

  D. Create a Virtual Service Instance (VSI) on each switch and define the other switches as TRILL peers.

  Correct Answer: B

• Question 22:

  Refer to the exhibit An administrator is creating the EVI network shown in the exhibit Switches 1 and 2 are configured as ENDP servers. and Switch 3 is configured as an ENDP client to the ENDP servers. Which configuration is correct for the EVI tunnel interface on Switch 3?



  A. The source IP address is the switch router ID; the addresses for switches 1. 2. and 4 need to be set as destinations

  B. The source IP address is the address on the connection to the service provider; no other destination IP addresses need to be set.

  C. The source IP address is the address on the connection to the service provider; the addresses for switches 1, 2, and 4 need to be set as destinations

  D. The source IP address is the switch router ID; no other destination IP addresses need to be set.

  Correct Answer: C

• Question 23:

  An HP Comware switch supports FCoE in Fibre Channel Forwarder (FCF) mode. A switch interface Ten1/0/1 connects to a server FCoE Converged Network Adapter (CNA). The CNA transmits normal data traffic, which is tagged for VLANs 4 and 8. and storage traffic for VSAN 2, which is associated with VLAN

  20. What is a correct port type and VLAN configuration for Ten 1/0/1?

  A. a hybrid port that has PVID 1 and defines VLANs 4 and 8 as tagged

  B. a trunk port that has PVID 20 and permits VLANs 4. 8. and 20

  C. a hybrid port that has PVID 1. defines VLAN 20 as untagged, and defines VLANs 4 and 8 as tagged

  D. a trunk port that has PVID 1 and permits VLANs 4. 8. and 20

  Correct Answer: D

• Question 24:

  Which statement is correct about a Fibre Channel (FC) node-port (N-port) in a Storage Area Network (SAN) fabric topology?

  A. It is a port on a SAN switch that connects to an initiator or target

  B. It is a port on a SAN switch that connects to a target but never to an initiator

  C. It is a port on an initiator but never a target, and it connects to an extension port (E-port).

  D. It is a port on an initiator or a target, and it connects to a fabric port (F-port)

  Correct Answer: C

• Question 25:

  Refer to the exhibit An EVI network is being set up as shown in Exhibit 1. Part of Switch 1's configuration is shown in Exhibit 2 All other switches are configured correctly and can reach each other. The EVI links should carry traffic in VLANs 4 to 20; however, when the administrator tries to ping a VLAN 4 device in DC 2 from DC 1. the ping fails.





  What should the administrator do?

  A. Change the tunnel source IP address to the Switch 1 router ID.

  B. Add tunnel destination IP addresses to the tunnel interface.

  C. Either disable the neighbor-discovery server setting or remove the client setting

  D. Configure the tunnel interface to extend VLANs 4 to 20 instead of VLAN 100.

  Correct Answer: D

• Question 26:

  What must be used when implementing the backbone multicast feature to isolate multicasts in the SPBM region?

  A. maximum of two Equal Cost Tree (ECT) algorithms

  B. single l-SID for all VLANs belonging to the same customer

  C. head-end replication for multicasts

  D. odd-numbered VLAN IDs for B-VLANs

  Correct Answer: C

• Question 27:

  An administrator configures an HP Comware switch to support FCoE in Fibre Channel Forwarder (FCF) mode A switch interface connects to a server FC host bus adapter (HBA). What is the correct configuration for this port?

  A. bound to a VFC interface, which is in F mode

  B. bound to a VFC interface, which is in E mode

  C. FC port >n F mode

  D. FC port in NP mode

  Correct Answer: B

• Question 28:

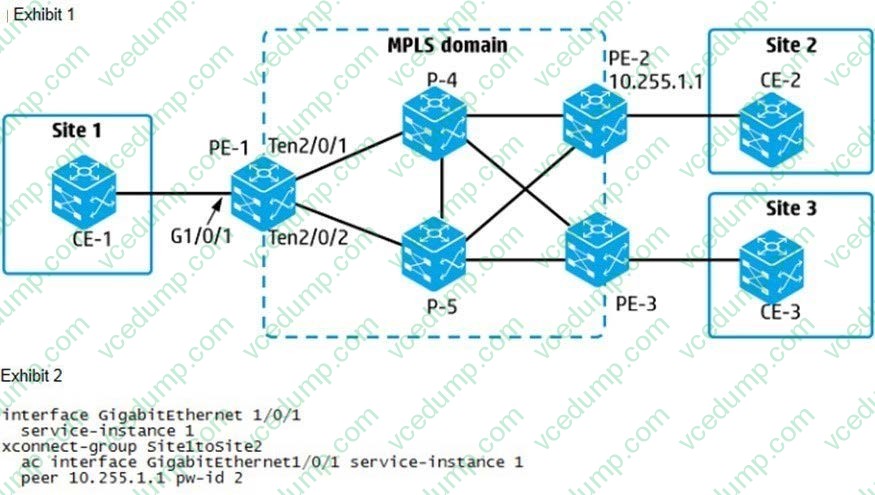

  Refer to the exhibit



  An administrator is configuring an MPLS VPLS Martini solution on PE-1. The VPLS solution should connect customer A sites 1, 2, and 3 Where should the administrator specify the LDP peers and pseudo wire (PW) label for the PWs?

  A. in service instances on interfaces Ten2/0/1 and Ten2/0/2

  B. in a Virtual Switch Instance (VSI) for customer A

  C. in a service instance on interface G1/0/1

  D. in a global cross-connect group

  Correct Answer: A

• Question 29:

  Why might a customer decide to use MDC instead of Multi-VPN-Instance CE (MCE)?

  A. to isolate tenants while maintaining the ability to leak routes in and out of a tenant instance

  B. to integrate with Intelligent Resilient Framework (IRF)

  C. to manage all routing and switch functions with a single management team

  D. to provide further segmentation between tenants at the hardware or ASIC level

  Correct Answer: A

• Question 30:

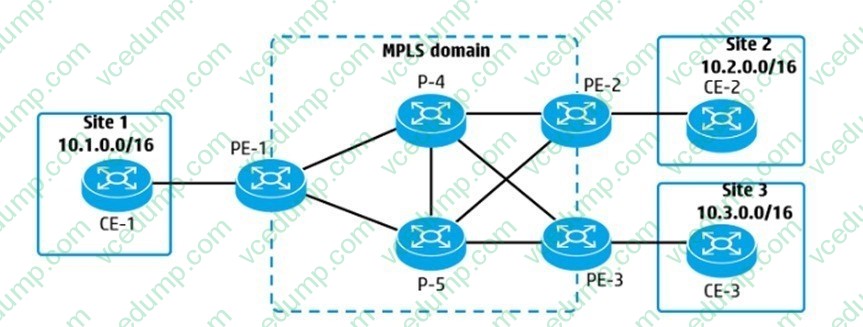

  Refer to the exhibit



  An administrator is planning an MPLS solution and wants to make sure that traffic from 10.1.0.0716 to 10.2 0.0/16 takes the best path. The solution is not using Traffic Engineering (TE). How does PE-1 choose between the label advertised for 10.2.0.0/16 by P-4 and by P-5?

  A. based on which peer is the higher priority LDP peer

  B. based on which peer is the next hop in the best route in the IP routing table

  C. based on which link has the lower LDP cost

  D. based on which link has the lower MPLS cost

  Correct Answer: B
