NetApp NetApp Certifications NS0-502 Questions & Answers

• Question 91:

  A customer has a four-node SUN cluster configuration. Each node has two, dual- ported HBAs. What is the minimum number of igroups that need to be created to map a LUN to the cluster?

  A. 1

  B. 2

  C. 4

  D. 8

  Correct Answer: A

• Question 92:

  A 200-GB LUN is created in an empty 500-GB volume with the volume guarantee option set to Volume. LUN reservation is enabled and the fractional reserve is set to 100 and scheduled snapshots are disabled.Directly after LUN creation, what is the maximum free space available in the volume?

  A. 200 GB

  B. 300 GB

  C. 400 GB

  D. 500 GB

  Correct Answer: B

• Question 93:

  Click the Exhibit button.



  Based on the diagram shown, what is the appropriate FC switch topology?

  A. core-edge

  B. full mesh

  C. partial mesh

  D. partial cascade

  Correct Answer: C

• Question 94:

  Click the Exhibit button.



  Based on the diagram shown, what is the appropriate FC switch topology?

  A. full mesh

  B. core-edge

  C. full cascade

  D. partial mesh

  Correct Answer: B

• Question 95:

  Which FC SAN topology provides the best performance and scalability?

  A. cascade

  B. core-edge

  C. full mesh

  D. partial mesh

  Correct Answer: B

• Question 96:

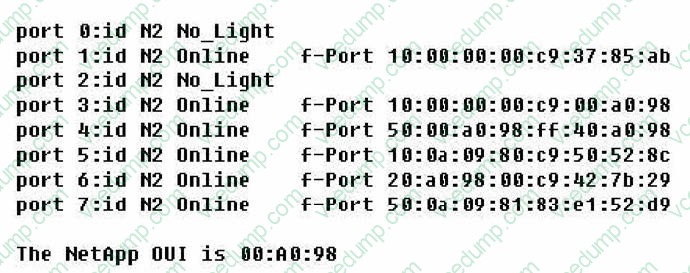

  Click the Exhibit button.







  Given the information provided in the diagram, what is the appropriate FC topology?

  A. point-to-point

  B. switched fabric

  C. arbitrated loop

  D. ring

  Correct Answer: B

• Question 97:

  A company has a Fibre Channel environment and wants to connect a new host in a remote data center using 50/125um OM2 multi-mode fiber cable and needs to support 2 Gb speeds.

  What is the maximum distance of the cable run supported in this situation?

  A. 50/125um OM2 multi-mode fiber cable supports up to 500 meters at 2 Gb.

  B. 50/125um OM2 multi-mode fiber cable supports up to 10000 meters at 2 Gb.

  C. 50/125um OM2 multi-mode fiber cable supports up to 150 meters at 2 Gb.

  D. 50/125um OM2 multi-mode fiber cable supports up to 300 meters at 2 Gb.

  Correct Answer: D

• Question 98:

  An organization currently has a NetApp Fibre Channel block-based solution. With limited budget and resources, they want to create a new disaster recovery site that utilizes a NetApp solution.

  What would the optimal solution include?

  A. SnapMover and Fibre Channel at the disaster recovery site for all hosts

  B. SnapMirror and iSCSI at the disaster recovery site for all hosts

  C. Fibre Channel at both locations using ftp to replicate storage

  D. MetroCluster and NAS

  Correct Answer: B

• Question 99:

  Which utility on Solaris 10 can be used to collect information about firmware and driver versions for an Emulex LP1xxxx/LPe1xxxx HBA?

  A. EMutil

  B. SANutil

  C. hbainfo

  D. SANsurfer

  E. HBAnywhere

  Correct Answer: E

• Question 100:

  Which utility on Solaris 10 can be used to collect information about firmware and driver versions for a Qlogic QLAxxx/QLExxxx HBA?

  A. EMutil

  B. SANutil

  C. cfgadmin

  D. SANsurfer

  E. HBAnywhere

  Correct Answer: D
