HP HP Certifications HPE6-A41 Questions & Answers

• Question 61:

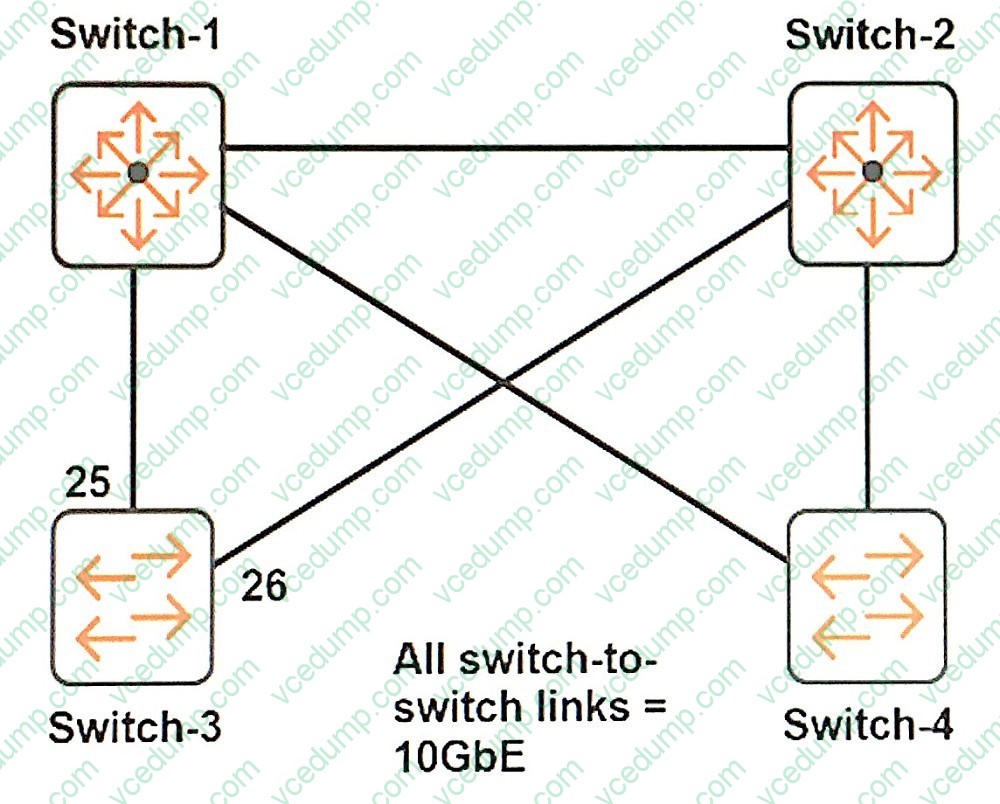

  Refer to the exhibit.



  The switches in the exhibit are all ArubaOS switches that run MSTP. The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic.

  What should the administrator do to accomplish this?

  A. Configure link-keepalive on the switch-to-switch ports.

  B. Configure links on a switch as a standard link aggregation.

  C. Configure the switch-to-switch ports as MSTP auto-edge ports.

  D. Configure BPDU filters on the switch-to-switch ports.

  Correct Answer: C

• Question 62:

  A network administrator wants to deploy Aruba Instant APs (IAPs) at a remote site that does not have Internet access. The APs should receive their configuration automatically from AirWave by using Zero Touch Provisioning (ZTP). What does the administrator need to configure?

  A. the name and password of a user with full administrative rights to AirWave

  B. the name of the AirWave VLAN with the configuration that the APs should use

  C. the DHCP server configured with options 43 and 60 for ZTP

  D. the IP address for the DNS server with the mapping for the airwave hostname

  Correct Answer: C

• Question 63:

  A manager password is configured on an ArubaOS switch. The network administrator wants to ensure managers only use SSH to connect to the ArubaOS switch for CLI access. Which step should the administrator complete to accomplish this?

  A. Enter the command no telnet-server.

  B. Enter the commend include-credentials.

  C. Enter the command ip ssh.

  D. Enter the command secure-vty.

  Correct Answer: A

• Question 64:

  Refer to the exhibit.



  Which issue could cause the Blocked status on A2?

  A. A1 and A2 are connected to different switches.

  B. A1 and A2 use different trunk load balancing modes.

  C. A1 and A2 support different VLANs.

  D. A1 and A2 have spanning tree enabled on the link aggregation.

  Correct Answer: D

• Question 65:

  What does the traceroute command that is entered on an ArubaOS switch identify?

  A. each physical device between the switch and a destination

  B. the path to each router connected to the switch

  C. each Layer 3 device between the switch and a destination

  D. debug output tracing entries to the routing table

  Correct Answer: C

• Question 66:

  Refer to the exhibit.



  Switch 1 shown in the exhibit is an ArubaOS switch that has an uplink to the network core on interface 25.

  The network administrator wants to add a link on interface 26. The administrator creates a link aggregation

  with this command:

  Switch1 (config)# trunk 25-26 trk1 lacp

  What else must the administrator do to enable the Switch 1 link aggregation to successfully pass all traffic

  to the core?

  A. Configure VLANs 10 and 20 as tagged VLANs on interface 26.

  B. Configure VLANs 10 and 20 as tagged VLANs on trk1.

  C. Enable BPDU filtering on interface 26.

  D. Enable LACP in active or passive mode on interfaces 25 and 26.

  Correct Answer: A

• Question 67:

  An ArubaOS switch is protected with a manager password. The network administrator wants to back up the configuration and apply it to other switches. The administrator wants the manager password to be available in both the saved and running configuration.

  To accomplish this goal, what must the administrator do before the configuration is backed up?

  A. Enter the password command with the plaintext option.

  B. Configure an SSH keypair on the switch.

  C. Enter the include-credentials command.

  D. Ensure that the server to which the configuration will be backed up uses SCP as opposed to TFTP.

  Correct Answer: C

• Question 68:

  A Virtual Switching Framework (VSF) fabric currently has two members and two physical 10GbE links in its VSF link.

  Which administrative task can a network administrator perform on this VSF fabric when both members are online?

  A. Remove a VSF member.

  B. Add a new 40GbE link to the VSF link.

  C. Remove one of the physical links in the VSF link.

  D. Change the VSF link to use 40GbE links instead of 10GbE links.

  Correct Answer: A

• Question 69:

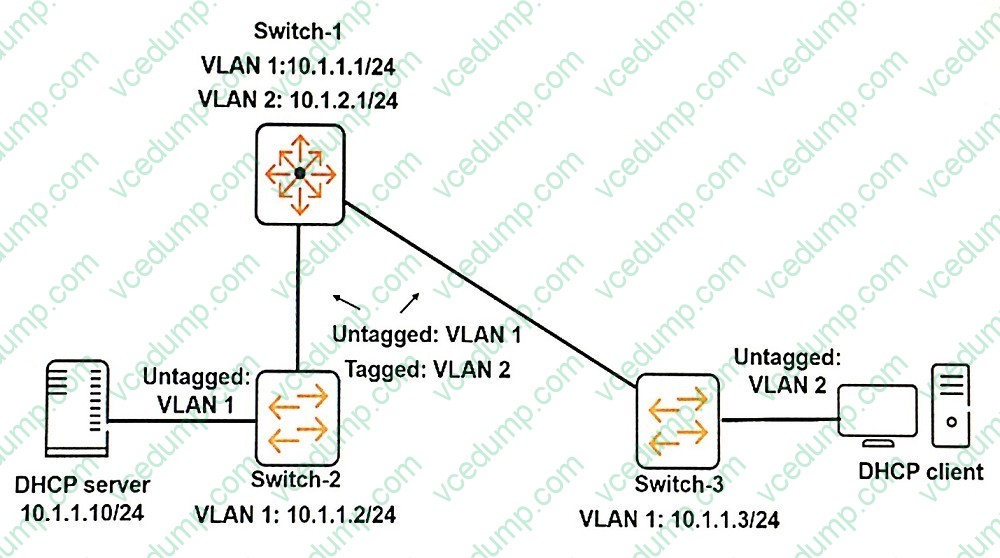

  Refer to the exhibit.



  Based on the topology shown in the exhibit, which symptom does a network administrator see if the ArubaOS switches are in their factory default states?

  A. Ports places in a blocking state

  B. Mislearned MAC addresses

  C. TTL expired in transit

  D. Layer 3 loop

  Correct Answer: D

• Question 70:

  Refer to the exhibit.

  Exhibit 1.



  Exhibit 2.



  PC1 cannot reach PC2.

  Based on the exhibits, what could be the cause of this issue?

  A. PC1 has the wrong IP address for its default gateway setting.

  B. Router A has a direct route, instead of a static route, to 10.1.10.0/24.

  C. The next hop address for the 10.1.20.0/24 route is incorrect.

  D. Router A has an invalid subnet mask for the VLAN 1 subnet.

  Correct Answer: A
