HP HP Certifications HPE6-A71 Questions & Answers

• Question 121:

  An administrator wants to implement the MultiZone feature in a company's network to segregate corporate and guest traffic. Corporate traffic will have APs establish connections to a cluster managed by a Mobility Master (MM), and guest traffic will have the same APs establish connections to a standalone controller at the company's DMZ.

  What is true about the implementation of MultiZones in this scenario?

  A. The MultiZone feature must be enabled in the data zone.

  B. The primary zone maintains full control of AP management and configuration.

  C. The primary and data zones must be in the same L2 subnet.

  D. A MultiZone AP can initially connect to any zone to obtain its configuration.

  Correct Answer: B

• Question 122:

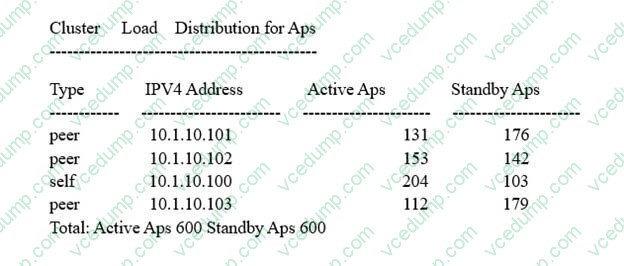

  Refer to the exhibit.



  Which controller connection with the Aruba as the cluster leader?

  A. Controller A

  B. Controller B

  C. Controller C

  D. Controller D

  Correct Answer: B

• Question 123:

  An administrator has a standalone controller that runs ArubaOS 8.x software and wants to upgrade it to a newer release. The upgrade will be performed from the front panel of the physical controller. The administrator places the new software in the root directory of a USB drive. On the controller's LCD panel, no image is found.

  What is the cause of this problem?

  A. The image must be placed in the /Upgrade subdirectory.

  B. The image must be placed in the /Images subdirectory.

  C. The image must be placed in the /ArubaImage subdirectory.

  D. The upgrade must be performed from the controller's WebUI.

  Correct Answer: C

  References: https://www.arubanetworks.com/techdocs/ArubaOS_63_Web_Help/Content/ArubaFrameSt yles/ Base_WLAN_Switch/Using_the_LCD.htm

• Question 124:

  An administrator implements blacklisting of users that fail authentication functions three or more times. By default, how long will these users have to wait before they can successfully log into the network again?

  A. 15 minutes

  B. 1 hour

  C. 4 hour

  D. 24 hours

  Correct Answer: B

  https://www.arubanetworks.com/techdocs/ArubaOS_63_Web_Help/Content/ArubaFrameSt yles/ New_WIP/Client_Blacklisting.htm

• Question 125:

  An administrator configures Unified Communications and Collaboration (UCC) heuristics mode on an Aruba Mobility Master (MM). What should be modified in order to send items such as VoIP sessions and monitored information about adds, updates, deletions, and periodic snapshots of those VoIP sessions on the MM or the Aruba Mobility Controller (MC)?

  A. OpenFlow Controller profile

  B. Mgmt Config profile

  C. Skype ALG Configuration profile

  D. OpenFlow profile

  Correct Answer: B

• Question 126:

  An administrator moves an AP from one campus to another. However, at the second campus, the moved AP does not connect to a controller and download an AP Group configuration.

  Which process should the administrator perform to reset the AP to the initial state?

  A. From the controller's CLI, reboot the AP.

  B. From the AP's CLI apboot mode, execute a factory reset.

  C. From the controller's CLI, stop the autoboot process of the AP.

  D. From the AP's CLI, toggle POE on the AP's port.

  Correct Answer: B

• Question 127:

  Which Aruba Mobility Controller (MC) administrative role should an administrator assign to a receptionist so that they can create and manage guest accounts?

  A. guest-provisioning

  B. receptionist

  C. guest-operator

  D. network-operations

  Correct Answer: A

• Question 128:

  Refer to the exhibit.



  An AP is connected to a cluster of controllers. An AAA server provides all authentication and authorization functions for wireless users. A wireless user connects to an AP, and Active User Anchor Controller (AUAC) and Standby UAC (S-UAC) tunnels are built from the AP to the respective controllers in the cluster.

  Why would an administrator create four VRRP groups with four Virtual IP (VIP) addresses in the cluster?

  A. to allow the AAA Server to enforce RADIUS CoA in case the A-UAC experiences an outage

  B. to allow High Availability (HA) Fast Failover to function in case a controller experiences an outage

  C. to allow the AP to establish redundant AP Anchor Controller (AAC) connections to the cluster

  D. to provide a VRRP group for election of the cluster leader

  Correct Answer: A

• Question 129:

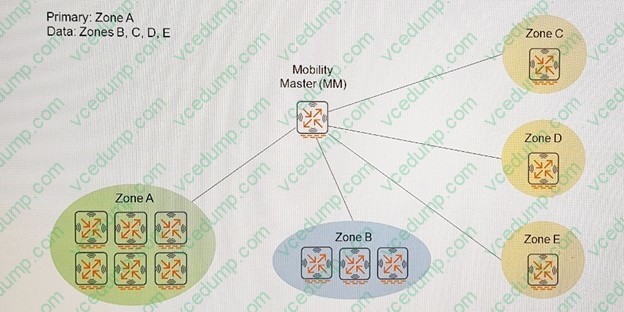

  Refer to the exhibit.



  An administrator implements the MultiZone feature. The administrator sets up five zones as shown in the

  exhibit in this configuration:

  -Zone A has six controllers that form a cluster.

  -Zone B has three controllers that from a cluster.

  -Zones C, D, and E have a single standalone controller each.

  A total of 13 VAPs are created across the five zones. Aruba Mobility Controllers (MCs) in Zones A, B and

  C run ArubaOS 8.1.0.1 MCs in zones D and E run ArubaOS 8.1.0.2. Some APs do not join their respective

  data zones.

  What could cause this problem?

  A. The number of controllers exceeds the maximum for MultiZone.

  B. The MCs run different versions of the ArubaOS code.

  C. The number of zones exceeds the maximum for MultiZone.

  D. The number of VAPs exceeds the maximum for MultiZone.

  Correct Answer: B

• Question 130:

  Which VPN component must be configured on the Mobility Master (MM) to allow a RAP to use the built-in certificate to successfully connect to a Mobility Controller (MC)?

  A. IP Address pool

  B. VPN username and password

  C. IPSec pre-shared key

  D. CPSec auto-whitelist

  Correct Answer: D
