• Question 131:

  Refer to the exhibits.

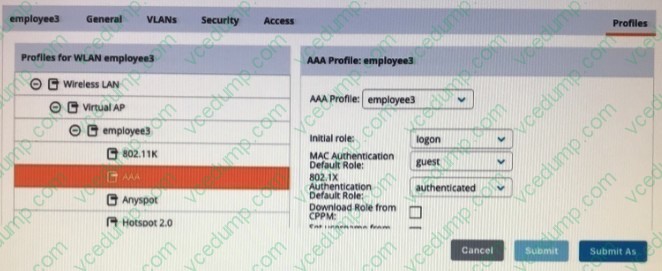

  Exhibit 1: WLAN VAP configuration

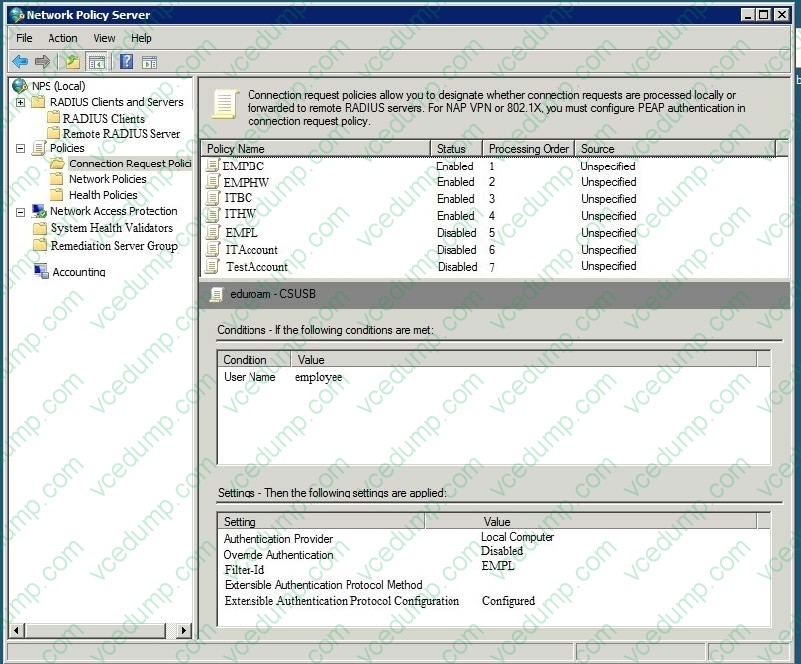

  Exhibit 2: Microsoft NPS server configuration

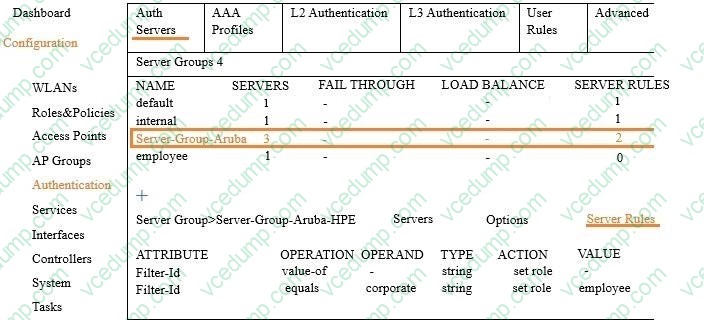

  Exhibit 3: Server group configuration for the VAP.



  An employee authenticates with the username employee and the correct password. However, once the user authenticates, an administrator notices that the employee is assigned the authenticated role and not the desired employee role.

  What should the administrator do to solve this problem?

  A. Add a new server group rule on the controller.

  B. Associate the user to the employee group in Microsoft NPS.

  C. Change the server group name on the controller.

  D. Reference the employee role in the WLAN VAP on the controller.

  Correct Answer: A

  We have to add new rule:

  Filter-Id - equals - EMPL - string - set role - employee

• Question 132:

  An administrator supports an Aruba wireless solution that uses ClearPass to implement server role assignment. A user reports that they are not able to access the correct department resources. The administrator determines from the connected controller that the user is associated to the login user profile instead of the department user profile.

  What should the administrator examine on the ClearPass server to determine the Aruba VSA User Role value that ClearPass returns to the controller?

  A. Accounting

  B. Event Viewer

  C. Audit Viewer

  D. Access Tracker

  Correct Answer: D

• Question 133:

  Refer to the exhibit.



  What can be determined from the command output shown in the exhibit?

  A. The synchronized data is protected by VRRP.

  B. The command was executed on the standby Mobility Master (MM).

  C. The synchronization period is at its default value.

  D. The other Mobility Master (MM) is the active license server.

  Correct Answer: C

• Question 134:

  Refer to the exhibit.



  A user uses Microsoft Windows for a wireless session. Based on the output shown in the exhibit for the selected Aruba AP, what is the possible problem with this user's wireless session?

  A. The AP has reached the limit for number of users that are allowed to connect to the radio.

  B. The controller cannot reach the AAA server to perform the authentication.

  C. The user is configured for PEAP, but the WLAN profile on the controller implemented EAP-TLS.

  D. The user misconfigured the Managed Network Settings profile in Windows.

  Correct Answer: C

• Question 135:

  An administrator creates service-based policies for AirGroup on the Mobility Master (MM). The administrator can define location-based policy limits based on which information?

  A. AP names, AP groups, controller names, and controller groups

  B. AP Fully Qualified Location Names (FQLNs) and controller Fully Qualified Domain Names (FQDNs)

  C. AP names, AP groups, and AP Fully Qualified Location Names (FQLNs)

  D. Controller names, controller groups, and controller Fully Qualified Domain Names (FQDNs)

  Correct Answer: C

• Question 136:

  Which forwarding mode is used for a WLAN if a RAP needs to decrypt all user traffic and forward it locally?

  A. Split-tunnel

  B. Bridge

  C. Tunnel

  D. Decrypt-tunnel

  Correct Answer: B

• Question 137:

  An administrator wants to implement 802.1X authentication on Ethernet ports on branch office controllers. What must the administrator do to implement this policy?

  A. Define the port an untrusted, and assign an AAA policy to the port.

  B. Define the port as trusted, and assign an AAA policy to the port.

  C. Define the port as untrusted, and assign an AAA policy to the VLAN.

  D. Define the port as trusted, and assign an AAA policy to the VLAN.

  Correct Answer: A

• Question 138:

  In a VPN that uses certificate-based authentication, which component must be configured on the Mobility Master (MM) to allow a RAP to successfully connect to a Mobility Controller (MC)?

  A. RAP VPN username and password

  B. WLAN and new RAP group

  C. RAP IPSec pre-shared key

  D. RAP whitelist

  Correct Answer: D

• Question 139:

  An administrator implements the Aruba AitGroup feature to accommodate the Apple Bonjour service. In this implementation, which protocol advertises devices such as printers, computers, and their services?

  A. LLDP

  B. Multicast DHCP

  C. Multicast DNS

  D. Broadcast DNS

  Correct Answer: C

• Question 140:

  Refer to the exhibit.



  An administrator supports a RAP at a branch office shown in the exhibit. The company has one Mobility Controller (MC) at the Primary DMZ site and one at the Secondary DMZ site. The RAP is configured to connect to only the MC at the Primary DMZ site. A network outage with the ISP at the Primary DMZ site causes the RAP to reboot. Upon reboot, the RAP cannot build a tunnel to the Secondary DMZ site MC because the administrator forgot to add the Second LMS IP address to the AP Group configuration. Once the RAP can successfully connect, the administrator can add the Secondary DMZ MC as a backup LMS to fix the AP Group.

  What should the administrator implement to allow the RAP to connect to the MC at the Secondary DMZ site while the outage at the primary site persists?

  A. Dynamic discovery through DHCP Option 43

  B. Static configuration from apboot mode

  C. Dynamic discovery through DHCP Option 60

  D. Dynamic discovery through multicast ADP

  Correct Answer: B
