NetApp NetApp Certifications NS0-593 Questions & Answers

• Question 51:

  After a motherboard replacement on a NetApp AFF A300 in a SAN environment, the customer states that ports 0e and 0f are unable toconnect to the fabric. The ports report "offline".

  What would you examine first to troubleshoot the issue?

  A. vserver fcp wwpn-alias show command output

  B. system node hardware unified-connect show command output

  C. storage port show command output

  D. vserver fcp interface show command output

  Correct Answer: C

• Question 52:

  Your customer added a new DS4246 shelf to their FAS2750 single-node system and created a new aggregate on the new shelf. Two weeks later, they log into Active IQ and discover the Medium Impact error shown below. Shelves with both connections via the same SAS path detected



  Referring to the exhibit, which statement is correct?

  A. In a FAS2750 system, the internal shelf is only seen on one path, and the external shelves are seen on two paths.

  B. The cables are cabled Incorrectly on the SAS stack.

  C. This situation is normal for a FA57750 single-node system.

  D. Active IQ Is not aware of the shelf configuration for a single-node system.

  Correct Answer: C

• Question 53:

  A system panic due to an "L2 watchdog timeout hard reset" error occurred. You have found a FIFO message in the SP log. Which FIFO message Is useful for Investigating this Issue?

  A. before NMI BBSP:C=00 L=00 FIFO: F3 F2 F1 F0 5 B2 0 0 0 80 20 E F E3 C0 C2 3 4 6 7 9 9 A

  B. BIOS exit BBSP:C=2F L=20 FIFO: 2 C8 C9 C4 24 4 6 18 7 8 11

  C. before Reset BBSP:C=00 L=00 FIFO:

  D. ONTAP Shutdown BBSP:C=00 L=2F FIFO:

  Correct Answer: B

• Question 54:

  You are attempting to connect a NetApp ONTAP cluster to a very complex network that requires LIFs to fail over across subnets. How would youaccomplish this task?

  A. Configure an equal number of UFs on each subnet.

  B. Configure VIP LIFs using OSPF.

  C. Configure VIP LIFs using BGP.

  D. Configure a I IF failover policy for each subnet inside a single broadcast domain.

  Correct Answer: C

• Question 55:

  After a normal power down of both nodes forbuilding maintenance, Node01 of a 2-node cluster cannot be powered back up; however, all disk shelves are powered. Which action should be performed to bring the cluster online and allow Node02 to serve data?

  A. Recreate the cluster with the system configuration recovery cluster recreate -from node command.

  B. Reboot the node With the system node reboot -node Node02 -bypass-optimization true command.

  C. Perform a takeover with the storage failover takeover -ofnode Node01 -option forcecommand.

  D. Reinitialize the cluster with option 4a from the boot menu.

  Correct Answer: A

• Question 56:

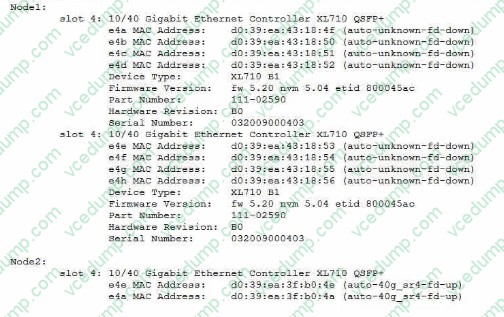

  A customer wants to connect a NetApp AFF A700 system to a 40GbE switch. The controllers have a 10/40G Ethernet card in slot 4 for this purpose. The link comes up fine on node 2,but it will not come up on node 1. You look at the AutoSupport data for the nodes in question and see the output shown in the exhibit.



  What is the cause of the customer's problem?

  A. The cable is plugged in upside down.

  B. The incorrect cable is used.

  C. The ports are configured for 4x10Gbit instead of 40Gbit.

  D. The port has an incorrect SFP inserted.

  Correct Answer: C

• Question 57:

  Which two automation methods does NetApp ONTAP Select support? (Choose two.)

  A. REST

  B. Anslble

  C. Docker

  D. PHP

  Correct Answer: AB

• Question 58:

  Your customer complains about missing volume snapshot copies on a SnapMlrror destination. While investigating this case, you notice an executed SnapMirror resync operation in the event logs of the system. In this scenario, what Is the cause of this problem?

  A. Newer Snapshot copies than the common snapshot that was chosen for resync were removed automatically at the destination.

  B. The autodelete option removed Snapshot copies before the resync.

  C. Snapshot copies were manually removed from the destination after the resync.

  D. NetApp ON TAP System Manager removed these snapshot copies due to a snapshot schedule.

  Correct Answer: C

• Question 59:

  You created a new NetApp ONTAP FlexGroup volume spanning six nodes and 12 aggregates with a total size of 4 TB. You added millions of files to the FlexGroup volume with a flat directory structure totaling 2 TB, and you receive anout of apace error message on your host.

  What would cause this error?

  A. The maximum number of volume constituents has been reached in the ONTAP software.

  B. All constituent volumes are full.

  C. The inode limit is exceeded in the ONTAP software.

  D. The maxdirsize Is exceeded in the ONTAP software.

  Correct Answer: C

• Question 60:

  Your customer has deployed a two petabyte NetAppONTAP FlexGroup volume across their 4-node ONIAP 9.8 cluster. They plan to store over three billion files. They want to prevent file 10 conflicts since files are placed into the FlexGroup volume.

  In this scenario, which two NFS SVM parameters should be enabled? (Choose two.)

  A. -v3-64bit-identifiers

  B. -v4-fsid-change

  C. -v3-fsid-change

  D. -v4-64bit-idantifiers

  Correct Answer: AC
