OMG OMG Certifications OMG-OCUP2-INT200 Questions & Answers

• Question 101:

  Triggers on two different transitions originating from two states at different levels of the same state are simultaneously enabled (as shown in the exhibit).



  A. The state machine is not well-formed.

  B. More deeply nested transitions take precedence over those with less depth.

  C. Both transitions are taken in arbitrary order.

  D. The less deeply nested transition takes precedence over those with more depth.

  Correct Answer: B

• Question 102:

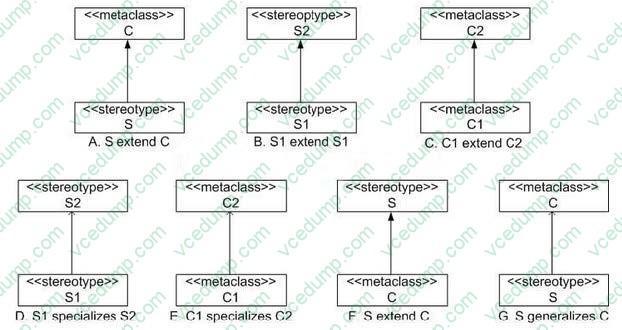

  Which figures are correct models for extension and generalization/specialization? (Choose three.)



  A. A

  B. B

  C. C

  D. D

  E. E.

  F. F.

  G. G

  Correct Answer: ADE

• Question 103:

  What characteristic does a behavior port possess?

  A. owns the behavior of the classifier that owns the port

  B. must have a protocol state machine

  C. has its own behavior that is distinct from the behavior of the classifier

  D. relays any incoming messages directly to the behavior of the owning object

  E. defines the behavior that the owning classifier must realize

  F. is a kind of behavior

  Correct Answer: D

• Question 104:

  What is true about the composite structure exhibit?



  A. Every instance of X must be connected to an instance of Y.

  B. All instances corresponding to x and y will be destroyed when an instance of C is destroyed.

  C. Every instance of Y must be connected to an instance of X.

  D. C has at least two properties.

  Correct Answer: D

• Question 105:

  What action would destroy all association links for an object in one operation?

  A. Clear Structural Feature Action

  B. Destroy Object Action

  C. Clear Association Action

  D. Remove Structural Feature Action

  E. Destroy Link Action

  Correct Answer: C

• Question 106:

  In the exhibit, what is true about Mstrict?



  A. Within the strict combined fragment, sending a signal will immediately be followed by the reception of that signal.

  B. The whole Mstrict has only one legal trace.

  C. Sending q precedes reception of r in all legal traces.

  D. Sending r precedes sending p in all legal traces

  Correct Answer: C

• Question 107:

  What determines whether a clause executes?

  A. behaviors

  B. classes

  C. parameters

  D. guards

  E. test nodes

  Correct Answer: E

• Question 108:

  What statement is true if a port delegates to multiple ports on subordinate components?

  A. at execution time, signals will be delivered from the subordinate ports to the delegating port

  B. subordinate ports must collectively offer the delegated functionality of the delegating port

  C. subordinate ports must be type compatible with the delegating port

  D. multiple delegation is not allowed

  Correct Answer: B

• Question 109:

  What is true of a composite state with two regions?

  A. is a kind of submachine state B. is equivalent to two states with one region each

  C. is executed concurrently

  D. is an orthogonal state

  E. can have separate entry and exit actions for each region

  Correct Answer: D

• Question 110:

  What does the composite structure notation in the exhibit mean?



  A. port p is connected to an object called F.

  B. Port p realizes the features defined by interface F.

  C. Port p requires the features defined by interface F.

  D. Class C has internal structure.

  E. Object c1 is a kind of component.

  Correct Answer: C
