Cisco CCNP Data Center 300-615 Questions & Answers

• Question 191:

  Refer to the exhibit.



  A blade server on UCS-1 fails to boot from SAN. The PWWNs of the server and the target device are in the fabric login database of the N9K-1. Which set of actions resolves the issue?

  A. Configure zoning and activate the zone set.

  B. Reset HBA adapter 1/2/1 to reinitiate FLOGI.

  C. Set fabric binding based on the initiator PWWN and target PWWN.

  D. Define LUN masking on the storage array.

  Correct Answer: D

• Question 192:

  An engineer troubleshoots FCoE on a Cisco MDS 9000 Series Switch. What does this output indicate about port channel 1?



  A. Port channel 1 is configured to connect to an NPIV switch.

  B. Port channel 1 is configured to be an ISL.

  C. Port channel 1 is configured to connect to an NPV switch.

  D. Port channel 1 is configured to connect to a host bus adapter.

  Correct Answer: B

• Question 193:

  Refer to the exhibit.



  The Cisco ACI fabric is configured with RADIUS realm as the default authentication method. The customer1_admin user is configured with the read-all role but still can create new objects in Tenant1. Which Cisco AV pair must be used to resolve the issue?

  A. shell:domains=customer1/read-all/, customer1//read-all

  B. shell:domains=customer1/access-admin/

  C. shell:domains=customer1//admin

  D. shell:domains=customer1/tenant-admin/

  Correct Answer: A

• Question 194:

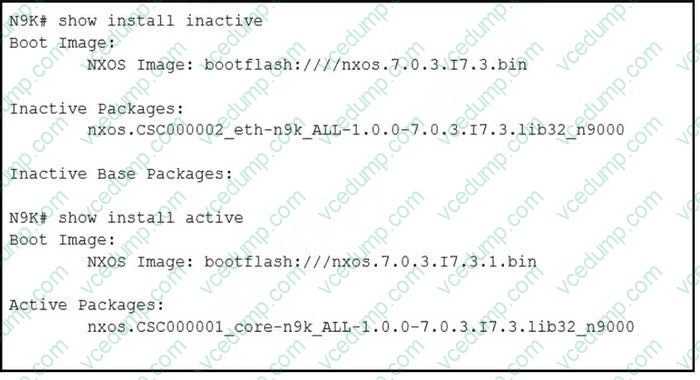

  Refer to the exhibit.



  After an unexpected reload of the Cisco Nexus 9000 Series Switch, the network administrator noticed that one of the Software Maintenance Upgrades (SMU) images is inactive. The engineer must ensure that the package remains active after the switch is reloaded in the future. Which action accomplishes this goal?

  A. Copy the SMU package file on the bootflash

  B. Deactivate and uninstall the active core package

  C. Save the running configuration after activating the package

  D. Commit the package using the install commit command

  Correct Answer: D

• Question 195:

  Refer to the exhibit.



  A network engineer is implementing an RBAC on the Cisco Nexus 9000 Series Switch. The role called HostA fails to clear LACP counters on the port channel 20. Which configuration resolves the issue?

  A. Delete rule 2 and create a new rule 4

  B. Delete rule 3 and create new rule 3 to allow the permit command

  C. Change the sequence of rule 2 and rule 3

  D. Permit rule number 3 and read-write L3 operation.

  Correct Answer: B

• Question 196:

  Refer to the exhibit.



  An engineer configures EVPN on Switch-1. but the neighbors fail to exchange EVPN routes. Which action resolves the issue?

  A. Configure neighbor 192.168.0.7 as an L2VPN EVPN route-reflector client.

  B. Activate the IPv4 unicast address family for neighbor 192.168.0.7.

  C. Enable the send extended community option for the L2VPN EVPN address family.

  D. Advertise L2VPN EVPN under the IPv4 unicast address family.

  Correct Answer: C

• Question 197:

  Refer to the exhibit.



  A network engineer must add a Cisco Nexus 5000 Series Switch to a Cisco DCNM. However, the device discovery status shows as unreachable. The engineer verifies these parameters:

  1.

  compatibility matrix between the DCNM server and the Nexus switch

  2.

  credentials to the Nexus switch

  3.

  IP connectivity and reachability between DCNM and the Nexus switch

  4.

  enablement of SSH on the Nexus switch Which procedure resolves the issue?

  A. Restart the Advanced Message Queuing Protocol service in the DCNM appliance.

  B. Increase the heap size of the Elasticsearch on the DCNM server.

  C. Globally enable Cisco Discovery Protocol on the switch and on the DCNM interface.

  D. Rediscover the Nexus switch from the DCNM server.

  Correct Answer: D

• Question 198:

  Which control plane is used according to this output?



  A. flood-and-learn MAC address learning

  B. BGP EVPN

  C. flood-and-learn IP address learning

  D. VXLAN OAM

  Correct Answer: B

• Question 199:

  A network administrator adds several Cisco UCS C-Series servers to the existing Cisco UCS environment. Some of the servers fail to be discovered in Cisco UCS Manager. Which two actions resolve the issue? (Choose two.)

  A. Enable fabric interconnect ports as appliance ports.

  B. Place the VIC card in the correct PCIe slot.

  C. Update the FEX software version.

  D. Remove custom configurations from Cisco IMC.

  E. Update the RAID software controller.

  Correct Answer: CD

• Question 200:

  Refer to the exhibits.



  The server traffic fails to reach the storage array. Which action resolves the issue?

  A. Change the VLAN ID and VSAN ID at both ends.

  B. Change port speed to auto mode.

  C. Remove and add new SFP on both ends.

  D. Reboot and configure the M5K switches.

  Correct Answer: C
