Cisco CCNP Data Center 350-601 Questions & Answers

• Question 261:

  An engineer must add a new VRF (DC DC) to the network that runs with Multiprotocol Border Gateway Protocol (MP-BGP) and EVPN.The requirement for the new VRF is to allow communication of network prefixes between PE1 and PE2.

  Which two sets of steps should be taken to complete the VRF configuration? (Choose two) A. Option A



  B. Option B

  C. Option C

  D. Option D

  E. Option E

  Correct Answer: BD

• Question 262:

  A network engineer must restore the running configuration on a Cisco Nexus 5000 Series Switch to an existing snapshot called "stable1". The restore procedure should proceed only if no errors occur.

  Which configuration should be used to accomplish this goal?

  A. rollback running-config checkpoint stable1 best-effort

  B. rollback checkpoint stable1 best-effort running-config atomic

  C. rollback checkpoint stable1 best-effort running-config best-effort

  D. rollback running-config checkpoint stable1 atomic

  Correct Answer: D

• Question 263:

  An engineer must configure a VDS port group using APIC policy. The requirements are for the frames to be mapped to a particular Layer 2 network and for the virtual machine assigned to the port group to receive all frames passed on the virtual switch.

  Which two settings must be used to meet these requirements? (Choose two.)

  A. forged transmits

  B. VMDirectPath

  C. port binding

  D. promiscuous mode

  E. VLAN

  Correct Answer: DE

• Question 264:

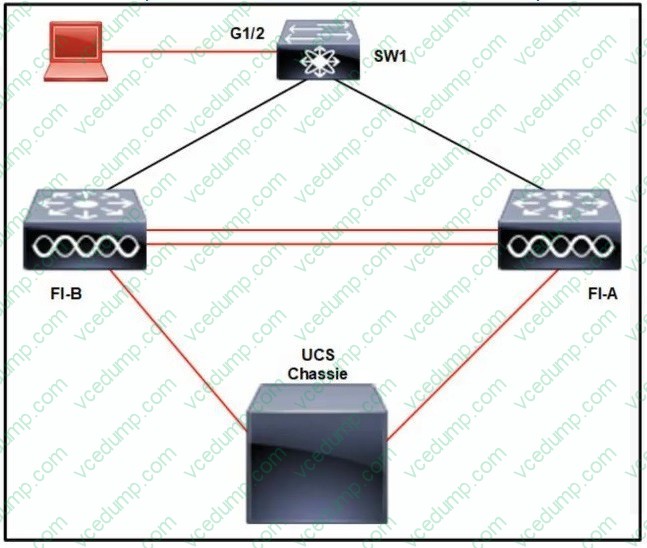

  Refer to the exhibit.



  A pair of Cisco Nexus switches form a vPC. A new chassis s added to the pre-existing Cisco UCS domain. A new chassis must be discovered, and all links from the chassis to the LAN network must be established. Which set of actions accomplishes these requirements?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C

• Question 265:

  A network engineer must SPAN only the ingress traffic of a Cisco MDS 9000 series switch from interface fc 1/23 to interface fc 1/24.

  Which two configuration must be applied to complete this task? (Choose two)



  A. MDS-A(config-span)# source interface fc 1/23

  B. MDS-A(config-if)# switchport mode SD

  C. MDS-A(config-span)# source interface fc 1/23 rx

  D. MDS-A(config-span)# source interface fc 1/23 tx

  E. MDS-A(config-if)# switchport mode TL

  Correct Answer: BC

• Question 266:

  An engineer is deploying a VXLAN EVPN environment for a customer. The customers environment suffers from a large amount of flooding related to hosts attempting to resolve the MAC to IP mapping on the network segment. Which feature prevents this issue from happening in the future?

  A. anycast rendezvous point

  B. anycast gateway

  C. IP ARP SYNC

  D. IP ARP suppression

  Correct Answer: D

• Question 267:

  A customer data center experiences bandwidth contention that affects the servers connected to the NPV enabled switch The NPV switch is connected to the NPIV switch using two 10 Gb uplinks but the traffic originating front the connected hosts to the core switch exceeds the available bandwidth The engineers decided to add a third uplink to the NPV server to increase the available bandwidth.

  Which set of commands must be used to provision the new uplink?

  A. switch2(config)# npv auto-load-balance ! uplink to NPV Core switch2(config-if)# switchport mode npiv

  B. switch2(config)# npv traffic-map server-interface ! uplink to NPV Core switch2(config-if)# switchport mode npiv

  C. switch2(config)# npv auto-load-balance disruptive ! uplink to NPV Core switch2(config-if)# switchport mode np

  D. switch2(config)# port-channel load-balance ethernet source-dest-port ! uplink to NPV Core switch2(config-if)# switchport mode np

  Correct Answer: C

  FC NPV supports disruptive load balancing of server logins. When disruptive load balancing is enabled, FC NPV redistributes the server interfaces across all available NP uplinks when a new NP uplink becomes operational. To move a server

  interface from one NP uplink to another NP uplink, FC NPV forces reinitialization of the server interface so that the server performs a new login to the core switch.

  Only server interfaces that are moved to a different uplink are reinitialized. A system message is generated for each server interface that is moved.

  Note

  Redistributing a server interface causes traffic disruption to the attached end devices. Adding a member to the existing port-channel does not trigger disruptive auto load-balance.

  To avoid disruption of server traffic, you should enable this feature only after adding a new NP uplink, and then disable it again after the server interfaces have been redistributed.

  If disruptive load balancing is not enabled, you can manually reinitialize some or all of the server interfaces to distribute server traffic to new NP uplink interfaces.

• Question 268:

  A storage administrator notices an increasing number of storage targets that unexpectedly reach capacity, causing periodic service interruptions. The administrator must now create and submit a daily report of the environment that shows the status of the storage targets with the highest capacities.

  Which solution provides this information?

  A. Nagios Core with OpManager

  B. Cisco DCNM with SAN Insight

  C. SolarWinds with Slow Drain Analysis

  D. Cisco Intersight with Slow Drain Analysis

  Correct Answer: D

• Question 269:

  A bridge domain is being extended out of a Cisco ACI fabric. Between which of these components are policies used to identify the connectivity between Endpoint Groups and the external connection?

  A. an external bridge domain and an external routed domain

  B. internal contracts and external contracts

  C. internal EPGs and external EPGs

  D. L2Out and L3Out

  Correct Answer: C

• Question 270:

  A company must security harden its Cisco UCS C-Series servers. The security policy requires all out-of- band management to meet these requirements

  1.

  It must encrypt all traffic

  2.

  It must use nondefault ports

  3.

  It must provide private administrative sessions

  Which Cisco IMC corrflguraton meets the requirements?

  A. data1# scope sol data1 /sol # set enabled yes data1 /sol *# set encrypted tls1.2 data1 /sol *# set port 3389 data1 /sol *# set session max 2 data1 /sol *# set deny-local yes

  B. data1# scope cimc data1 /cimc # set enabled yes data1 /cimc *# set encrypted tls data1 /cimc *# set kvm-port 1972 data1 /cimc *# set max-sessions 1

  data1 /cimc *# set local-session deny

  C. data1# scope oob data1 /oob # set enabled no data1 /oob *# set encrypted yes data1 /oob *# set kvm-port 2068 data1 /oob *# set max-sessions 1 data1 /oob *# set local-access no

  D. data1# scope kvm data1 /kvm # set enabled yes data1 /kvm *# set encrypted yes data1 /kvm *# set kvm-port 3168 data1 /kvm *# set max-sessions 1 data1 /kvm *# set local-video no

  Correct Answer: D
