Cisco CCNP Data Center 350-601 Questions & Answers

• Question 321:

  Refer to the exhibit.



  The MDS-EDGE-Switch and MDS-Core-Switch are configured with NPV and NPIV features

  The FLOGI from Cisco UCS is received by the MDS-Core-Switch on interface fc1/2.

  An engineer tried to move all traffic between the MDS-EDGE-Switch and MOS-Core-Switch from interface fc 1/2 to fc1/3, but the attempt failed.

  Which set of actions completes the configuration?

  A. Shut down fc1/1 in the MDS-EDGE-Switch. Re-apply the command. Enable interface fc1/1.

  B. Disable the NPIV feature in the MDS-EDGE-Switch. Re-enable the NPIV feature. Disable interface fc1/3.

  C. Disable the NPV feature in the MDS-EDGE-Switch. Re-enable the NPV feature. Disable interface fc1/1.

  D. Shutdown fc1/3 in the MDS-EDGE-Switch. Re-apply the command. Enable interface fc1/3.

  Correct Answer: A

• Question 322:

  Refer to the exhibit.



  SVR-A in EPG-A/BD-A fails to reach SVR-B in EPG-B/BD-B. Which two conditions should be verified to analyze the traffic between the two EPGs? (Choose two.)

  A. A contract exists between EPG-A and EPG-B and allows the traffic.

  B. Limit Endpoint Learning is disabled on the bridge domain for EPG-B.

  C. SVR-B is learned as an endpoint in EPG-B from Node-112.

  D. EPG-A and EPG-B are excluded from the preferred group.

  E. The bridge domain for EPG-B floods ARP packets.

  Correct Answer: AB

• Question 323:

  An engineer must implement access control tor Cisco UCS Manager. The configuration must meet these requirements.

  1.

  All users and user groups must be configured using Active Directory.

  2.

  User1 must have full access to the Fabric Interconnect infrastructure and network security operations

  3.

  User1 must have full access to the storage operations configuration. Which action must be performed on Cisco UCS to meet the requirements?

  A. Create a custom rote tot the user and RADIUS for the role-mapping for Active Directory.

  B. Execute a built-in role for the user and LDAP lor the role-mapping for Active Directory.

  C. Create a custom role tor the user and LDAP for the rote-mappings for Active Directory.

  D. Execute a built-in role for the user and RADIUS for the role-mapping for Active Directory.

  Correct Answer: B

• Question 324:

  An engineer must configure a Cisco UCS blade system that is managed by Cisco UCS Manager. All four connected interfaces between the blade system and the fabric interconnects must be used. Additionally, the connectivity must tolerate any link failure between the l/O module and the fabric interconnects. Which action accomplishes these requirements?

  A. Configure port aggregation with LACP policy set to default

  B. Configure Firmware Auto Sync Server policy to Auto Acknowledge

  C. Configure Link Group Preference to Port Channel.

  D. Configure chassis/FEX discovery pokey action to four links

  Correct Answer: C

• Question 325:

  Which two actions should be taken before an upgrade is started on a Cisco MDS switch? (Choose two.)

  A. check the impact of the upgrade using the show install all impact command

  B. disable Cisco Fabric Services

  C. back up the configuration

  D. free up space on the USB3 device by deleting old Cisco NX-OS image files

  E. make the primary supervisor the active supervisor

  Correct Answer: AC

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_2/upgrade/guid es/nx-os/upgrade.html

• Question 326:

  Refer to the exhibit.



  Which type of backup is required to restore a Cisco UCS configuration?

  A. system configuration

  B. all configuration

  C. logical configuration

  D. full state

  Correct Answer: A

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/1-0- 2/ b_CLI_Config_Guide_1-0-2/CLI_Config_Guide_1-0-2_chapter29.pdf



• Question 327:

  An engineer must configure a named VSAN when the fabric interconnect is in Fibre Channel switch mode The VSAN must meet these requirements:

  1.

  Named VSAN must be called";VSAN 1";.

  2.

  VSAN ID must be 10.

  3.

  FCoE ID must be 20.

  4.

  VSAN 10 must be attached to port 2 in slot 1.

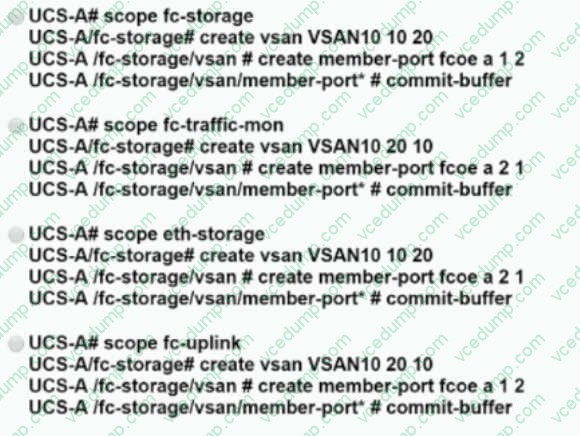

  Which command set configures a VSAN when the fabric interconnect is in Fibre Channel switch mode?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 328:

  Refer to the exhibit.



  Which two statements describe the routing table of the leaf switch? (Choose two.)

  A. The next hop 10.0.8.65 for route 10.20.1.0724 is the TEP address of a border leaf in ACI.

  B. The next hop 10.0.1.14 for route 172.16.99.0/24 is the TEP address of a border leaf in ACI.

  C. The next hop 10.1.168.95 for route 172.16.100 0/24 is the TEP address of a border leaf in ACI.

  D. 172.16.100.0/24 is a BD subnet in ACI.

  E. 10.20.1.0/24 is a BD subnet in ACI.

  Correct Answer: CE

• Question 329:

  What is a characteristic of the NFS protocol?

  A. It is used for booting Cisco UCS B-Series servers.

  B. It is used to access a storage array at a block level.

  C. It uses UDP and HTTP as its transport.

  D. It uses remote procedure calls with TCP/IP for transport.

  Correct Answer: D

• Question 330:

  An engineer mus! send JSON encoded telemetry data to an external collector. The transport mechanism must prevent tampenng or forgery of the data. Which protocol accomplishes this goal?

  A. GPB

  B. HTTP

  C. gRPC

  D. DTLS

  Correct Answer: B
