HP HP ATP HP2-Z30 Questions & Answers

• Question 1:

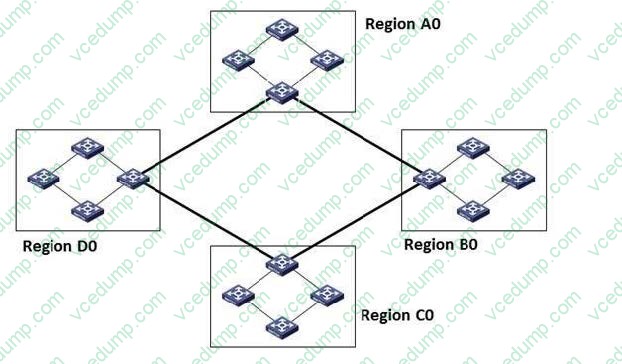

  Refer to the network exhibit.



  The network shown in the exhibit is comprised of four MSTP regions that are interconnected. Based on this topology, which statement is true?

  A. PVST should be used instead of MSTP.

  B. A routing solution must be used between MSTP regions when more than one region exists.

  C. An optimized topology can be created using MSTP between the regions.

  D. The switches are running the equivalent of RSTP between the regions.

  Correct Answer: D

• Question 2:

  A network administrator has installed IMC and the appropriate licenses. The network administrator is attempting to import the HP Comware and HP ProVision switches into IMC but is experiencing problems importing the Comware switches. The network administrator verifies the SNMPv2c configuration on both sets of switches and the SNMP configuration in IMC. The SNMP parameters are correct.

  What is the cause of the import problem?

  A. Comware switches implement SNMPv3 by default.

  B. Comware switches require SSH to be configured for remote CLI access.

  C. Comware switches are not fully supported by IMC.

  D. Comware switches do not have telnet fully configured.

  Correct Answer: D

• Question 3:

  What is the default state of spanning tree on HP Comware switches?

  A. MSTP is enabled.

  B. RSTP is enabled.

  C. STP is disabled.

  D. PVST is enabled.

  Correct Answer: C

• Question 4:

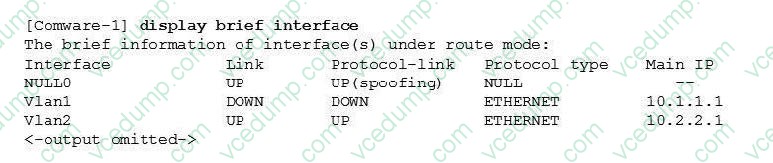

  A network administrator executes the following command:



  What is the state of the VLAN 1 interface?

  A. All interfaces in VLAN 1 are down.

  B. The IP address of VLAN 1 conflicts with another device in VLAN 1.

  C. The IP address for VLAN 1 is a duplicate of another VLAN interface on the switch.

  D. VLAN 1 has a single port in a down state.

  Correct Answer: D

• Question 5:

  A network administrator is expanding part of the data center in a hospital network. Three new racks of equipment need to be added, with an HP Comware 5820 series switch at the top of each rack. The Comware 5820 series switch needs to connect back to two core Comware 12500 switches using 10Gb connections. The distance between the three racks and the Comware 12500 switches is approximately 40 meters; however, the network administrator is concerned about electromagnetic and other types of interferences to electrical signals.

  Which solutions protect against interference and are cost-effective for this scenario? (Select two.)

  A. 10GBase-ZR

  B. 10GBase-SR

  C. 10GBase-ER

  D. 10GBase-LX4

  E. 10GBase-T

  Correct Answer: BD

• Question 6:

  Which IMC agent starts and stops the IMC server and allows a network administrator to view the status of the IMC processes?

  A. Policy Administration Agent (PAA)

  B. Deployment Monitoring Agent (DMA)

  C. Administration Deployment Agent (ADA)

  D. IMC Processing Agent (IPA)

  Correct Answer: B

• Question 7:

  What are the default logging properties for an HP Comware switch? (Select two)

  A. Displays debugging output to the console

  B. Displays log messages to the console

  C. Uses the Information Center to control logging functions

  D. Uses the Event Log to save log messages

  E. Supports five logging levels

  Correct Answer: BC

• Question 8:

  A network administrator has an HP Comware switch that is configured with OSPF. The network administrator views the routing table and sees that a default route was learned from an OSPF neighbor (10.1.1.1). However, the network administrator wants to override this action and use a different neighbor (10.1.1 2) for the default route.

  The network administrator configures this command:

  [Comware] ip route-static 0.0.0.0 0 10.1.1.2

  After configuring the command, the network administrator examines the routing table and notices that the original neighbor's default route is still in the routing table, but the static route is missing.

  What is the cause of this problem?

  A. OSPF routes have a lower precedence value

  B. The ip default-gateway command must be used when creating a default route

  C. Only one routing protocol can be operational on a Comware device

  D. The static route has a syntax mistake

  Correct Answer: A

• Question 9:

  A network administrator is building two IRF domains:

  -

  One domain for the two distribution layer switches

  -

  One domain for the access layer switches

  Each access layer switch should have a connection to each distribution layer switch. In this design, how many access switches can the administrator have in the access layer IRF domain before spanning tree is required to remove loops between the two IRF domains?

  A. 2

  B. 4

  C. 6

  D. 8

  E. 12

  Correct Answer: A

• Question 10:

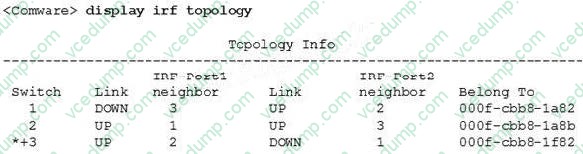

  Refer to the topology output.



  Based on this topology, which statements are true? (Select two) A. The topology is functioning normally

  B. This is a daisy chain topology

  C. This is a ring topology

  D. A break exists in the topology

  E. There is a split stack

  Correct Answer: CD
