• Question 11:

  Refer to the HP Comware configuration. interface vlan 1 ip address 10.1.1.1 255.255.255.0 quit interface vlan 2 ip address 10.1.2.1 255.255.255.0 quit interface loopback 1

  ip address 1.1.1.1 255.255.255.255 quit router-id 1.1.1.1 area 0 network 1.0.0.0 0.255.255.255 network 10.1.1.0 0.255.255.255 The network administrator set up VLAN 2 as a management VLAN. This VLAN should not be included in the OSPF routing process. Now only directly connected network administrators in VLAN 2 can manage the switch. How should the network administrator solve this problem?

  A. Define the management-vlan 2 command.

  B. Change the network command in OSPF.

  C. Define the VLAN 2 interface as a silent interface.

  D. Define the ip authorized-managers 10.1.0.0/24 command.

  Correct Answer: C

• Question 12:

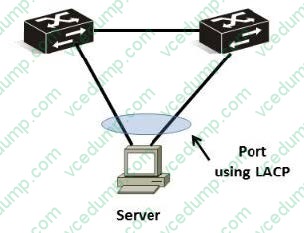

  A network administrator has a server with a single link to the network. The company is concerned about redundancy and wants to implement a solution like that shown in the right-hand side of the diagram.

  Which solution meets the company's needs?

  A. HP Comware or HP ProVision switches using IRF

  B. HP Comware switches using IRF only

  C. HP Comware switches using meshed IRF or meshed stacking

  D. HP Comware switches using distributed trunking only

  E. HP Comware switches using distributed trunking or IRF

  Correct Answer: B

• Question 13:

  A network administrator has set up a link between two HP ProVision switches. Both switches have an IP address in VLAN 1 and can ping each other in VLAN 1.The network administrator then creates VLAN 2 and tags it to same link of both switches.

  How can the network administrator verify that connectivity in VLAN2 is functional between the twoswitches?

  A. Assign each switch an IP address in VLAN 2 and use LLDP to test connectivity.

  B. Use either LLDP or ARP to test connectivity

  C. Assign each switch an ip address in VLAN 2, and use ICMP or LLDP to test connectivity

  D. Assign each switch an IP address in VLAN 2, and use ICMP to test connectivity

  E. Use LLDP to test connectivity

  Correct Answer: C

• Question 14:

  Which Intelligent Management center (IMC) module implements policies for environments that support bringsyour own device (BYOD)?

  A. NTA

  B. SOM

  C. EAM

  D. UAM

  Correct Answer: D

• Question 15:

  Which statement is true concerning PoE support on HP ProVision and HP Comware switches?

  A. Both the IEEE 802.3af and 802.3az power standards are supported.

  B. PoE is enabled by default on PoE-capable ports.

  C. Lowered-number ports, by default, have higher priority for Power requests.

  D. SNMP is used to determine power requirements of a connected devices.

  Correct Answer: B

• Question 16:

  Which statement is true about the management of HP ProVision and Comware switches?

  A. Telnet SSH are enabled by default on Comware switches.

  B. Telnet is enabled but SSH is disabled on ProVision switches.

  C. Comware switches, by default, store usernames and passwords in a separate configuration file.

  D. ProVision switches, by default, store usernames and passwords in a separate configuration file.

  Correct Answer: D

• Question 17:



  A network administrator has two distribution layer switches and four access layer switches. The network administrator is constantly resolving Spanning Tree problems and is looking for an alternative solution that provides redundancy and no Spanning Tree.

  A. ProVision switches with routing

  B. ProVision switches with aggregation

  C. Comware switches with auto-links

  D. Comware switches with distributed trunking

  Correct Answer: B

• Question 18:

  Which technology allows 802.11n scale up speeds of 600 Mbps?

  A. Spatial Multiplexing (SM)

  B. Multiple-Input Multiple-Output (MIMO)

  C. Worldwide Interoperability for Microwave Access (WIMAX)

  D. Channel Bonding (CB)

  Correct Answer: B

• Question 19:

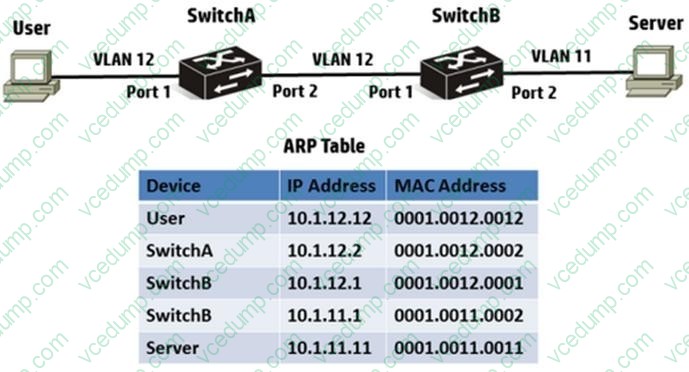

  After setting up DHCP relay, the network administrator has the DHCP client try to acquire addressing information, but the process fails. What should the network administrator do to solve this problem?

  A. Configure DHCP relay on SwitchB.

  B. Enable DHCP Snooping on SwichA.

  C. Execute the dhcp enable command on SwitchA.

  D. Execute the routing command SwichA.

  Correct Answer: C

• Question 20:

  Which trends of today's data center networks is the HP FlexNetwork Architecture designed to meet?

  A. virtualization

  B. Intelligent Resilient Framework

  C. network analytics

  D. server decentralization

  Correct Answer: A
