Cisco CCNP Data Center 350-601 Questions & Answers

• Question 141:

  Due to new regulatory requirements from a third party, organization ABC must enable two-factor authentication for the Cisco UCS environment. The requirement is also to provide redundancy if the authentication server goes offline. Which three authentication components must be enabled to meet this requirement? (Choose three.)

  A. provider group

  B. authentication domain

  C. TACACS+

  D. LDAP

  E. local

  Correct Answer: ABC

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin- Management/3-2/b_Cisco_UCS_Admin_Mgmt_Guide_3_2/ b_Cisco_UCS_Admin_Mgmt_Guide_3_2_chapter_0101.h tml#concept_13D7B9B6F03E498A8E425BCF6C28CE59



• Question 142:

  Refer to the exhibit.



  An engineer must monitor all LAN traffic on Fabric A from a blade server. Which source should be configured in the test-span monitor session to complete this task?

  A. all vHBAs from the service profile that correspond to this server

  B. all uplink FCoE ports

  C. all uplink Ethernet ports

  D. all vNICs from the service profile that correspond to this server

  Correct Answer: D

  https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_C onfiguration_Guide_141_chapter45.html



• Question 143:

  An engineer must start a software upgrade on a Cisco Nexus 5000 Series Switch during a zone merge. What is the result of this action?

  A. The zone merge stops.

  B. The zone merge pauses until the upgrade completes

  C. The upgrade stops

  D. The zone merge executes and then the upgrade completes.

  Correct Answer: C

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/upgrade/602_N2_2/n 5500_upgrade_downgrade_602_n2_2.html



• Question 144:

  A network engineer must configure a power redundancy policy on a Cisco UCS C-Series Rack Server. The power redundancy must support two power sources being used to power the server. Which configuration should be applied to meet the requirement?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Server- Mgmt/3-1/b_Cisco_UCS_Manager_Server_Mgmt_CLI_Guide/power_mgmt.html The command "N+1" is invalid. The command should be "n-plus-1"



• Question 145:

  What is a characteristic of electronic programmable logic device (EPLD) software upgrades?

  A. EPLD software should be upgraded only when instructed by Cisco TAC

  B. ELPD module upgrades are nondisruptive

  C. ELPD upgrades are available for fabric and power supply modules.

  D. EPLD software must be upgraded when Cisco MDS NX-OS is upgraded.

  Correct Answer: D

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/release/notes/epld / epld_rn.html



• Question 146:

  Which two actions are needed to configure a single Cisco APIC controller for Cisco ACI fabric for the first time? (Choose two.)

  A. Register the APIC that is connected to the switch.

  B. Configure the first Cisco APIC controller

  C. Configure the leaf switch where the Cisco APIC is connected, using CLI to allow APIC connectivity

  D. Register the switches that are discovered through LLDP.

  E. Register all leaf and spine switches

  Correct Answer: BE

• Question 147:

  A network architect considers a Cisco HyperFlex design solution for a company. The proposed solution is for a virtual environment that is not performance-sensitive, but the solution must have high storage capacity and a low cost. Which Cisco HyperFlex storage configuration should be used?

  A. All-Flash

  B. Hybrid

  C. All-SAN

  D. All-NVMe

  Correct Answer: B

  https://www.cisco.com/c/en/us/products/collateral/hyperconverged-infrastructure/hyperflex-hx-series/white- paper-c11-744026.html Hybrid contains HDD for capacity.

• Question 148:

  Refer to the exhibit.



  Which command is run from the Guest Shell to set the description on the first five interfaces of the Cisco Nexus switch?

  A. [guestshell@guestshell ~]$ for x in {1..5}; dohost "conf t ; interface eth1/$x ; description Server$x";

  B. [guestshell@guestshell ~]$ for x in {1..5}; do dohost "conf t ; interface eth1/$x ; description Server$x"; done

  C. [guestshell@guestshell ~]$ for x in (1..5); do dohost "conf t"; "interface eth1/$x" ; "description Server$x"; done

  D. [guestshell@guestshell ~]$ for x in (1..5); dohost "conf t ; interface eth1/$x ; description Server$x";

  Correct Answer: B

  NXs1# guestshell

  [admin@guestshell ~]$ for x in {1..5}; do dohost "conf t ; interface eth1/$x ; description Server$x" ; done

  Enter configuration commands, one per line. End with CNTL/Z.

  Enter configuration commands, one per line. End with CNTL/Z.

  Enter configuration commands, one per line. End with CNTL/Z.

  Enter configuration commands, one per line. End with CNTL/Z.

  Enter configuration commands, one per line. End with CNTL/Z.

  [admin@guestshell ~]$

  Reference:https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX-OS_Programmability_Guide_7x/Guest_Shell.html

• Question 149:

  An engineer requires a solution to automate the configuration and deployment of remote network devices for a customer. The engineer must keep these considerations in mind:

  1.

  The customer's environment is based on industry-accepted standards and requires a solution that meets these standards.

  2.

  The security requirements mandate the use of a secure transport mechanism between the automation software and target devices such as SSH or TLS.

  3.

  The solution must be based on a human-readable and easy to parse format such as XML or JSON. Which solution must be used to meet these requirements?

  A. SNMP

  B. REST API

  C. Ansible

  D. NETCONF

  Correct Answer: D

  https://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ios-xe/nb-06-cisco-ios-xe-faq-en.html

• Question 150:

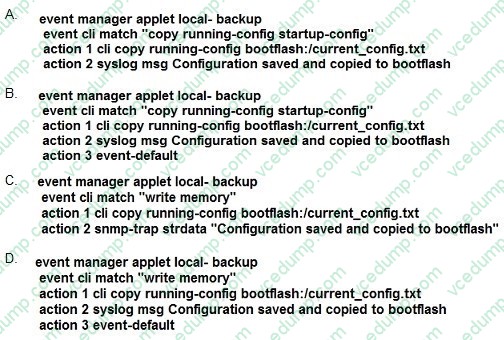

  A network engineer must create an EEM script that saves a copy of the running configuration on bootflash and writes a message to syslog when a user saves the configuration to a Cisco Nexus switch. Which configuration set should be applied to complete this task?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

  The command write memory is not valid in NX-OS The "event-default"



  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x_chapter_01110.html
