HP HP ATP HP2-Z30 Questions & Answers

• Question 51:

  Which HP Comware command saves the startup configuration file to a TFTP server?

  A. startup

  B. restore

  C. backup

  D. copy

  Correct Answer: C

  Reference:http://www.h3c.com/portal/Technical_Support___Documents/Technical_Docum ents/Switches/H3C_5820X_Series_Switches/Maintenance/Maintenance/H3C_Login_Pass word_Recovery_Manual(V1.01)/( see user level switching password, see user view commands)

• Question 52:

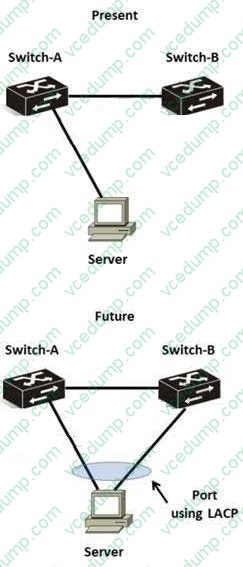

  Refer to the exhibit.



  A network administrator has a server currently connected to an access layer switch. The network administrator needs link redundancy for the server and wants to add a second access layer switch and connect it to the server. Which solution should the network administrator implement to accomplish this goal?

  A. Add a Provision switch as the new switch and implement distributed trunking.

  B. Add a Provision switch as the new switch and implement IRF.

  C. Add a Comware switch as the new switch and implement MSTR

  D. Add a Comware switch as the new switch and implement link aggregation.

  Correct Answer: B

• Question 53:

  Refer to the network exhibit.



  A network administrator has created a Layer 2 network based on the design shown in the exhibit. Switch-A and Switch-B are distribution layer switches. Switch-C is an access layer switch. All switches are HP Comware switches.

  What is the best spanning tree solution for load sharing on uplinks in this environment?

  A. STP

  B. MSTP

  C. RSTP

  D. distributed trunking

  Correct Answer: B

• Question 54:

  Which 802.1X component seeks authentication?

  A. processee

  B. supplicant

  C. authenticatee

  D. authenticator

  Correct Answer: B

• Question 55:

  When performing auto discovery with Intelligent Management Center (IMC), which two components should be defined in order to fully manage the discovered networking devices?

  A. SNMP and syslog

  B. telnet and SSH

  C. SSH and TFTP

  D. SNMP and telnet

  Correct Answer: D

• Question 56:

  Which Access Point (AP) type corresponds to HP MSM autonomous operational mode?

  A. Thin

  B. Fat

  C. Modal

  D. Fit

  Correct Answer: B

• Question 57:

  Which statement is true about spanning tree and HP Comware and HP Provision switches?

  A. A Provision switch requires the active region-configuration command to activate changes.

  B. A Provision switch uses non-standard port costs in spanning tree calculations.

  C. A Comware switch automatically auto-senses edge ports.

  D. A Comware switch uses non-standard port costs in spanning tree calculations.

  Correct Answer: D

• Question 58:

  Which VLAN port type is only supported by HP Comware switches?

  A. access

  B. voice

  C. trunk

  D. hybrid

  Correct Answer: D

• Question 59:

  Which action can be performed from an HP Comware switch?

  A. Execute the super command to change privilege levels.

  B. Execute the startup-default command to define the configuration file to load upon bootup.

  C. Execute the show flash command to examine the operating systems stored in flash.

  D. Execute the boot set-default flash command to define the default operating system to load.

  Correct Answer: A

• Question 60:

  Refer to the network exhibit.



  All of the switches in the exhibit are configured as follows:

  Config name =";Region!'

  Revision #= 1

  Instance 1=VLANs 10.12

  lnstance2 = VLANs11,13

  1ST instance = VLANs 1-9.14-4094

  Currently, onlyVLANs 1,10,11,12, and 13 exist on the four switches. A network administrator adds VLAN 15 to Switch_C. How is the topology affected by this change?

  A.

  Spanning tree recalculates, with load sharing not in effect to Switch_C.

  B.

  Spanning tree recalculates, with load sharing still in effect to Switch_C.

  C.

  A loop now exits involving Switch_C.

  D.

  No topology changes occur with spanning tree.

  Correct Answer: B
